P0122

WIRING DIAGRAM/CIRCUIT DESCRIPTION

DTC Detecting Condition And Trouble Area:

NOTE:
Check to make sure that following conditions are satisfied when using this "DTC CONFIRMATION PROCEDURE".

Intake air temp.: -8 °C (18 °F) or higher
- Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude barometric pressure : 2400 m, 8000 ft or less (560 mmHg (75 kPa) or more)

DTC CONFIRMATION PROCEDURE
1. Connect scan tool to DLC with ignition switch OFF
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 10 sec. or more.
3. Check DTC by using scan tool.

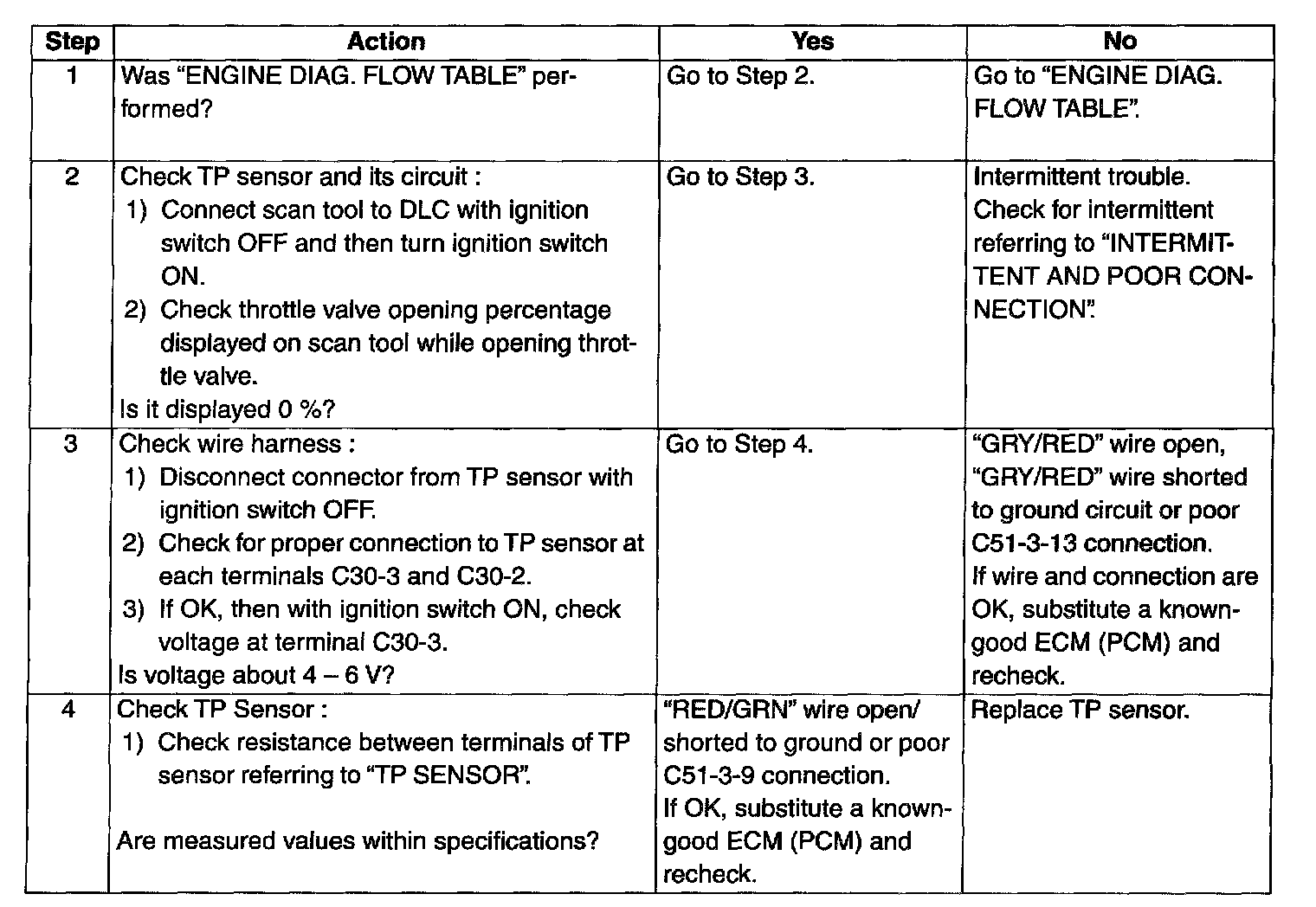

Steps 1 - 4:

TROUBLESHOOTING
