P0102

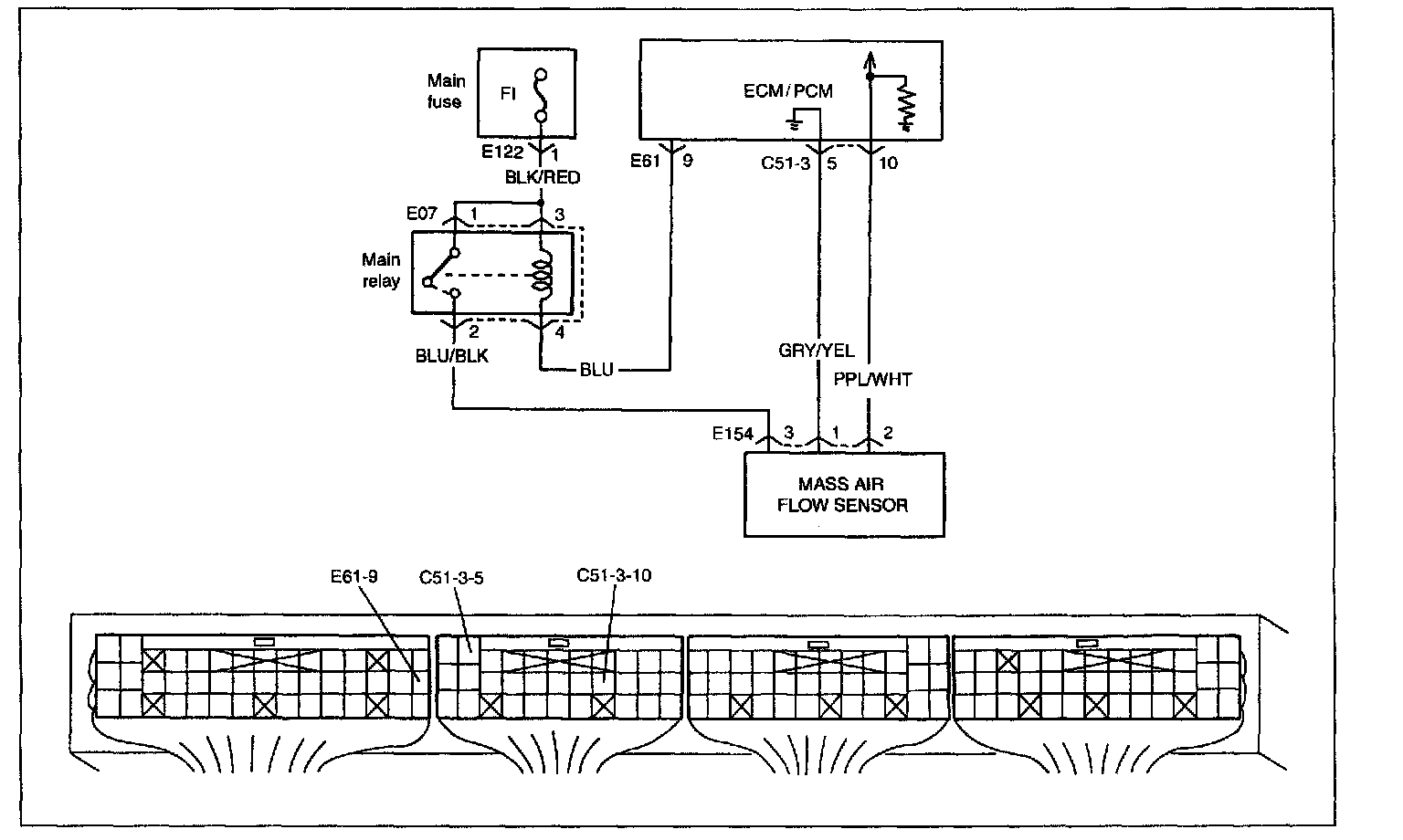

WIRING DIAGRAM/CIRCUIT DESCRIPTION

Detecting Condition/Trouble Area:

DTC CONFIRMATION PROCEDURE

NOTE:
Check to make sure that following conditions are satisfied when using this "DTC CONFIRMATION PROCEDURE".

- Intake air temp.: -8 °C (18 °F) or higher
Engine coolant temp.: -8 - 110 °C (18 - 230 °F)
- Altitude (barometric pressure) : 2400 m, 8000 ft or less (560 mmHg, 75 kPa or more)

1. Connect scan tool to DLC with ignition switch OFF.
2. Turn ON ignition switch and clear DTC, pending DTC and freeze frame data by using scan tool and run engine at idle speed for 20 sec. or more.
3. Check DTC by using scan tool.

Step 1 - 3:

Step 4:

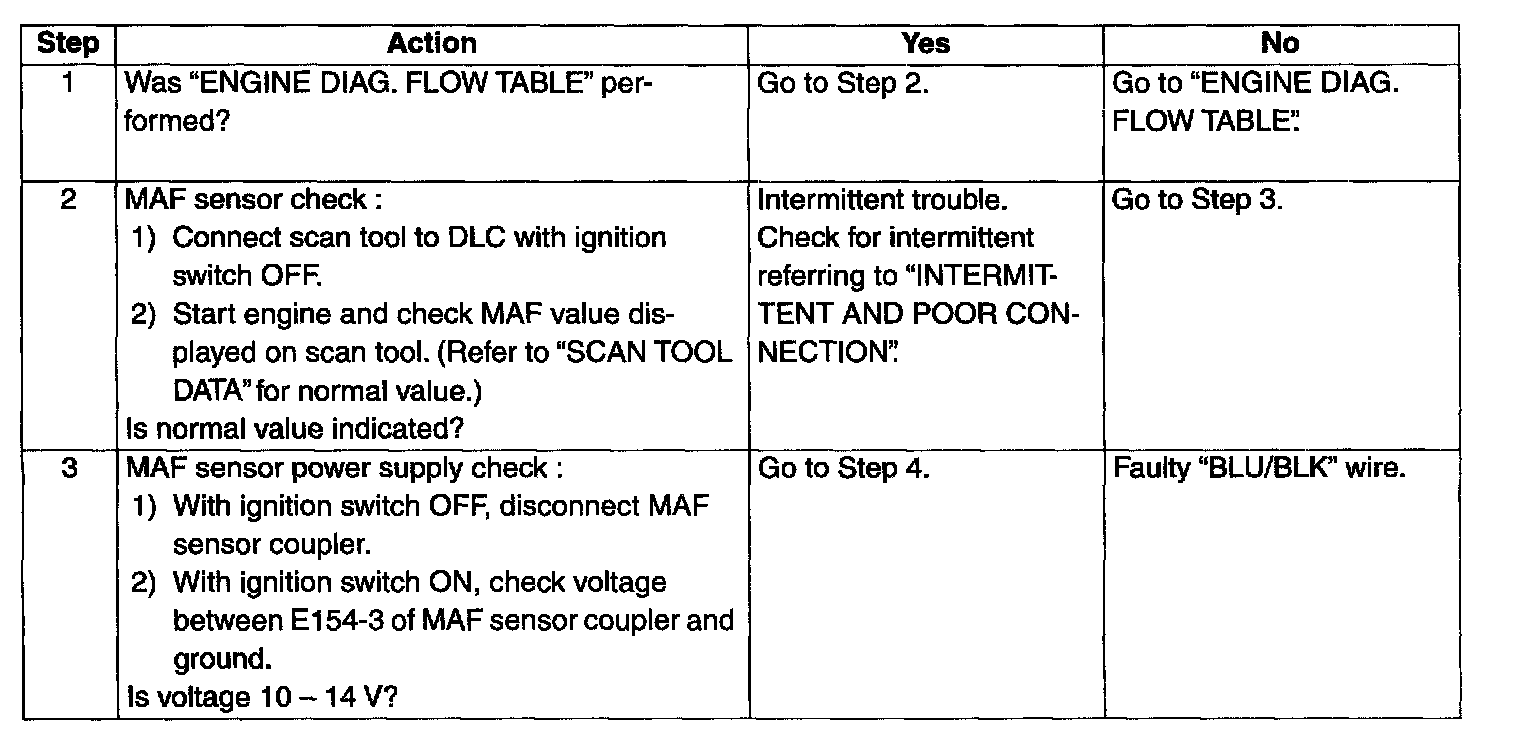

TROUBLESHOOTING
