C1055

C1041/C1045/C1051/C1055/C1042/C1052/C1056 (No. 41,45,51,55,42,46,52,56): Inlet Solenoid/Outlet Solenoid Circuit

DESCRIPTION
The ABS control module monitors the output from the valve.
When the output of each valve exceeds the specified value compared with the signal sent from ABS control module, this DTC is set.

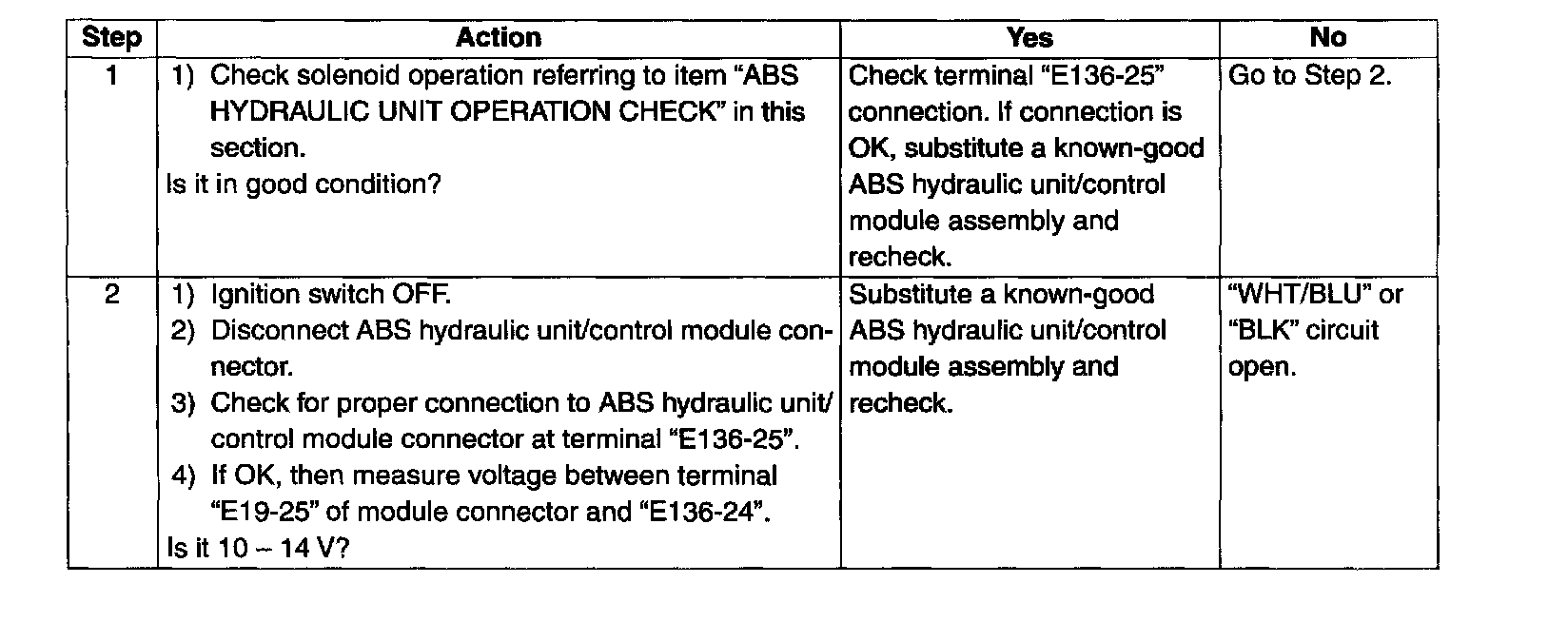

INSPECTION
