Installation (Diamante)
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2003 Mitsubishi Outlander, 2003 Mitsubishi Montero Sport, 2003 Mitsubishi Montero, 2003 Mitsubishi Lancer, and 2003 Mitsubishi Galant. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

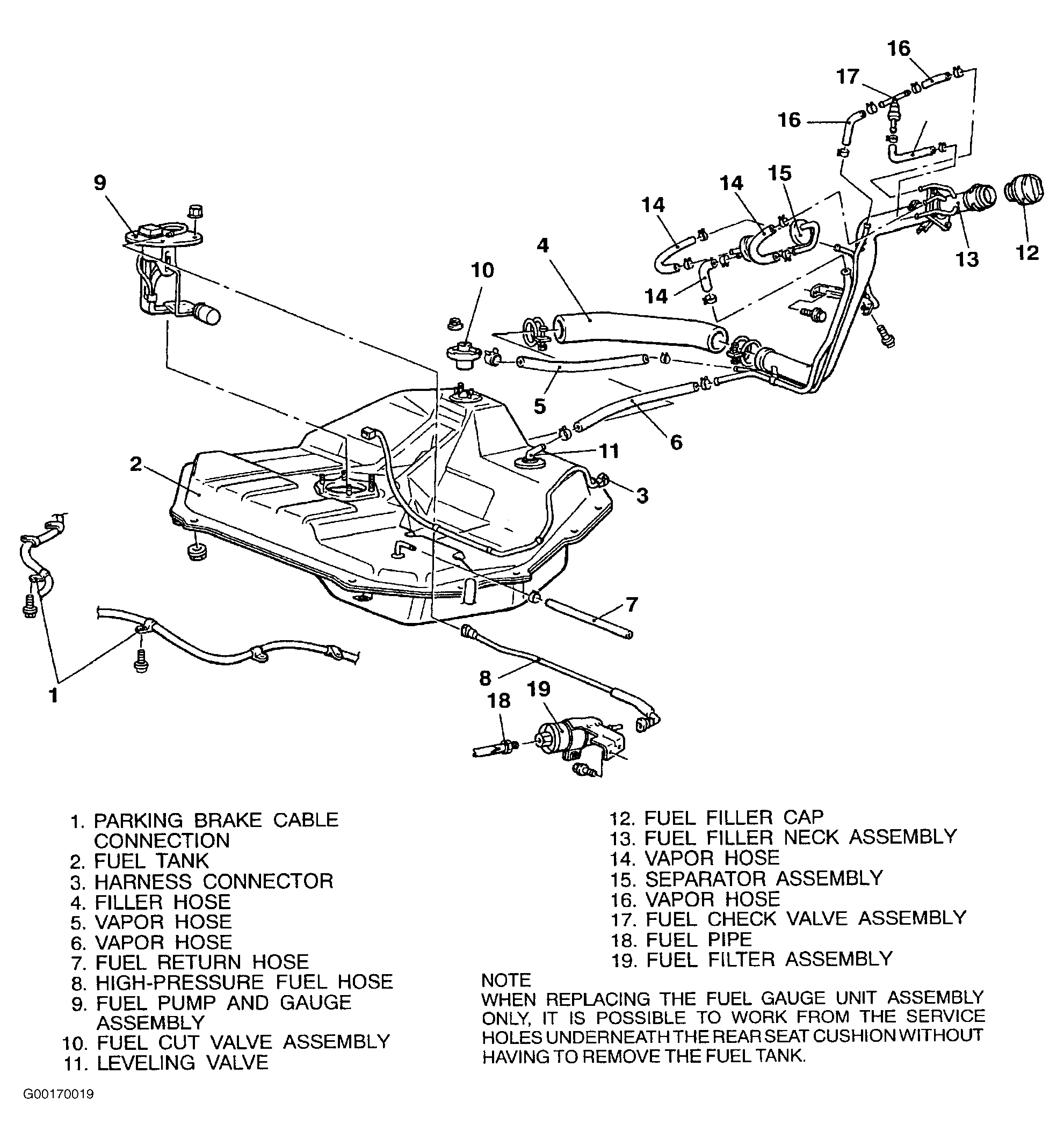

There is a reservoir inside fuel tank, if fuel pump module is tilted to right and inserted, fuel pump module will touch reservoir.
When installing fuel pump module, tilt float at end to left and insert into fuel tank. Align packing positioning projections (locations indicated by arrows) with holes in fuel pump module. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
