DTC Troubleshooting

WARNING: This page is about a different car, the 2004 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

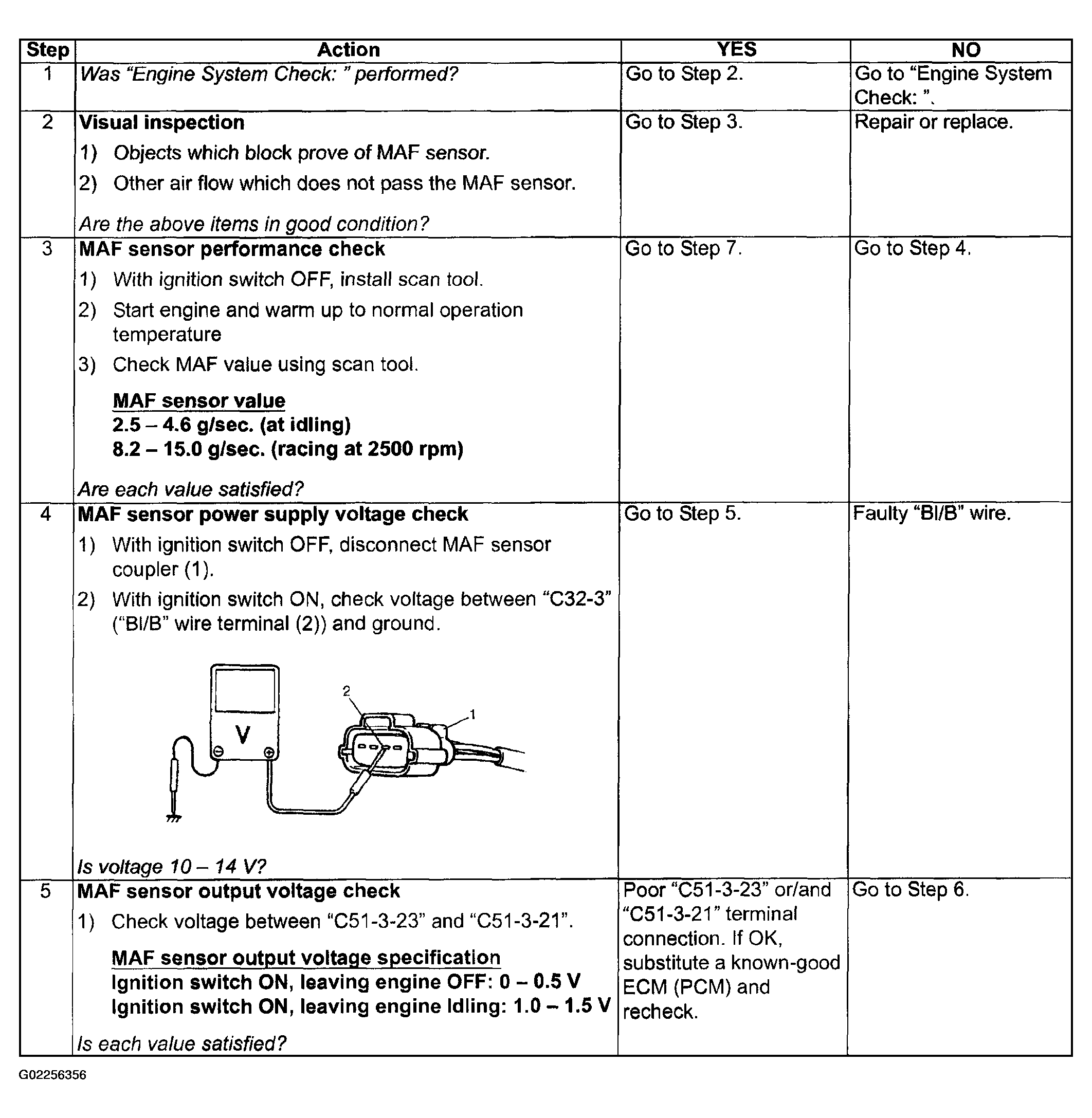

Fig 1: DTC P0101: Mass Air Flow (MAF) Sensor Performance Problem Troubleshooting Chart (1 Of 2)
G02256356Courtesy of SUZUKI OF AMERICA CORP.

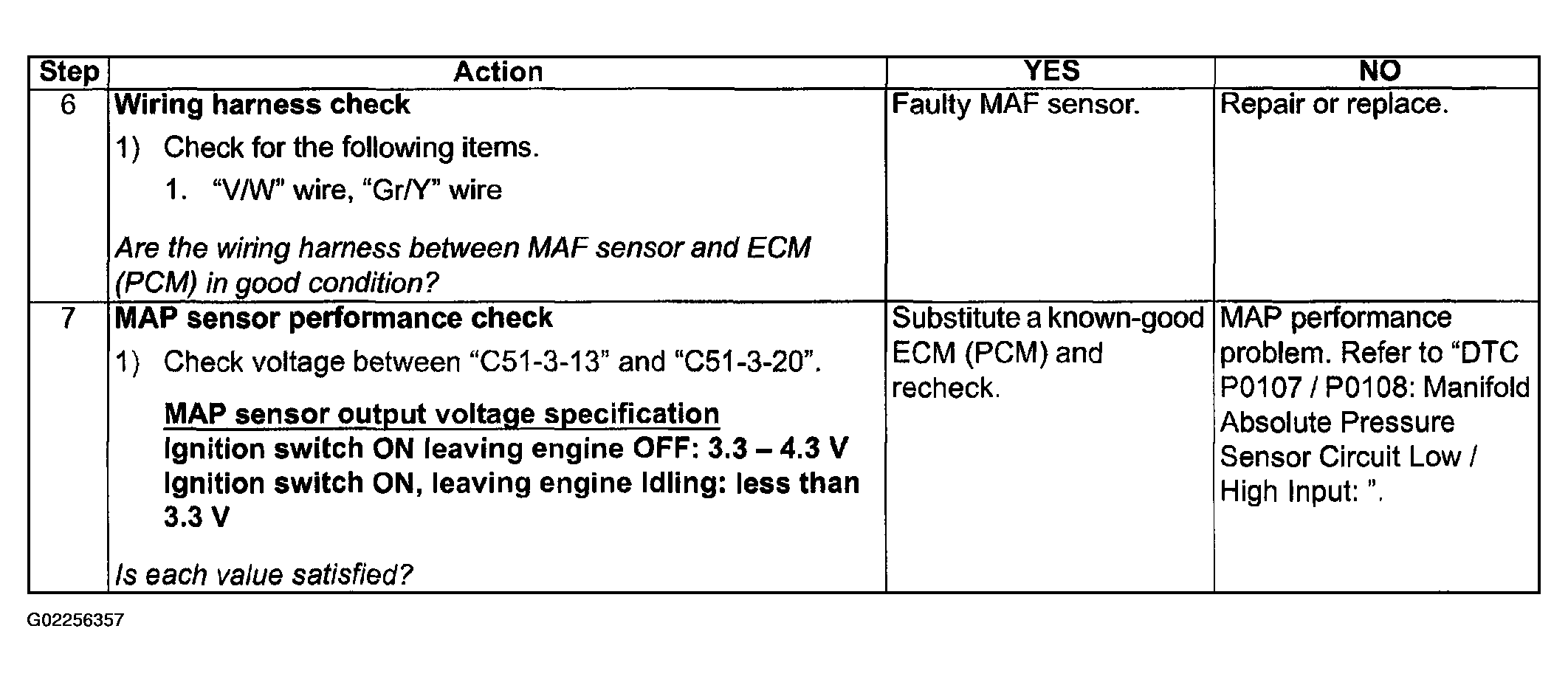

Fig 2: DTC P0101: Mass Air Flow (MAF) Sensor Performance Problem Troubleshooting Chart (2 Of 2)
G02256357Courtesy of SUZUKI OF AMERICA CORP.
