Removal & Installation
For removal and installation of door lock components, see
Fig 1
or
Fig 2
.

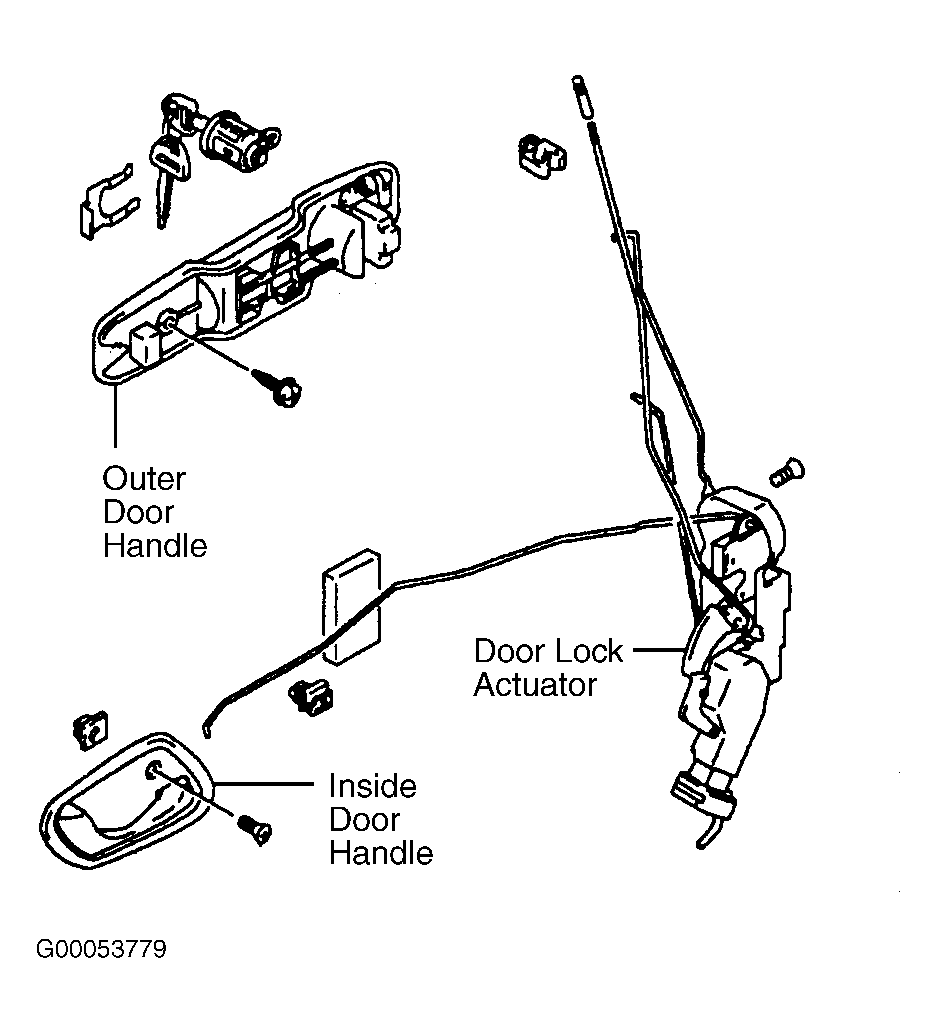

Fig 1: Exploded View Of Front Door Lock Components
Courtesy of SUZUKI OF AMERICA CORP.

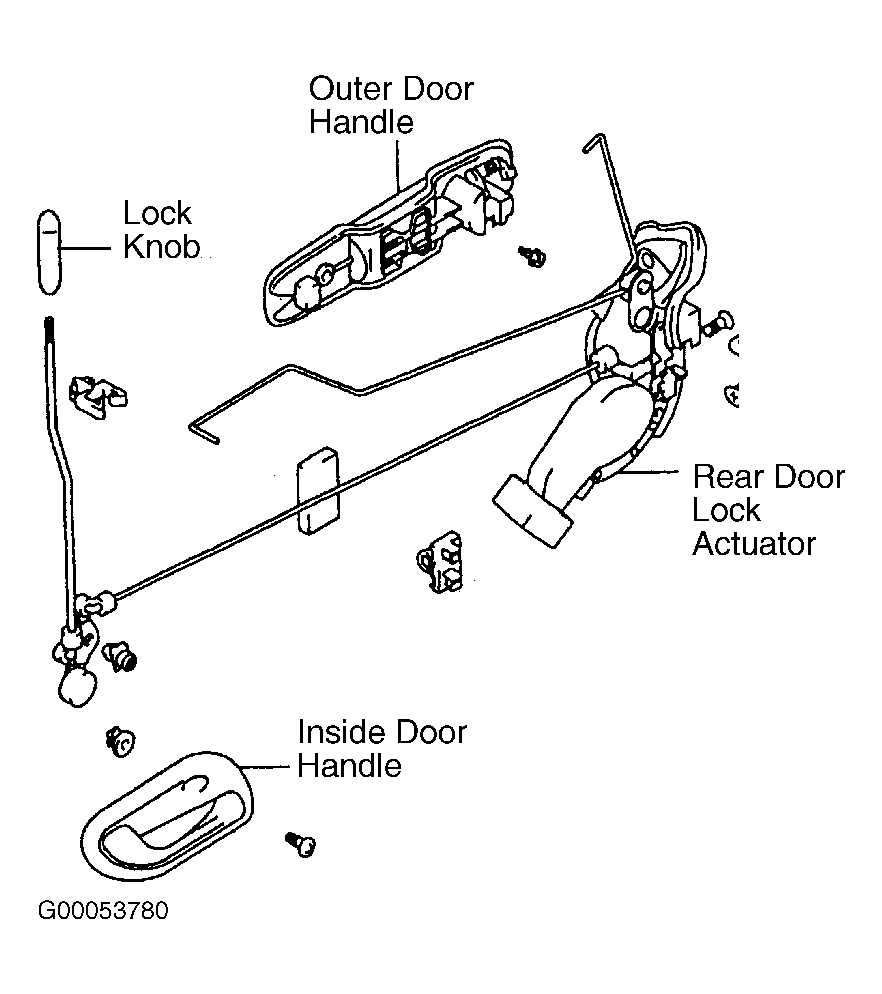

Fig 2: Exploded View Of Rear Door Lock Components
Courtesy of SUZUKI OF AMERICA CORP.
