Service Manual Correction (TS 02 08092)
Publication date: 2002-08-09Reference number: TS 02 08092
SERVICE MANUAL CORRECTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 02 08092, Date of Issue:
August 09, 2002
| SUZUKI: | 2001 XL 7 |
| SECTION: | Brakes |
CONDITION:
The DTC table found on page 5E2-14 and the system diagram illustrated on page 5E2-25 of the 2001 JA627 (XL-7) Service Manual list ABS trouble codes not supported on vehicles designated for the U.S. market.
CAUSE:
Production changes were made after the Service Manual went to print.
CORRECTION:
Make the following revisions to the Service Manual letting it indicate that the two DTC's (C1051 and C1052) dedicated for the right rear inlet and outlet solenoids have been deleted, and that the two DTC's (C1055 and C1056) dedicated for the left rear inlet and outlet solenoids are now designated as rear inlet and outlet.
CORRECTION PROCEDURE
- Open the 2001 JA627 Service Manual (P/N 99500-52D00-33E) to page 5E2-14 where the ABS DTC Table is located.

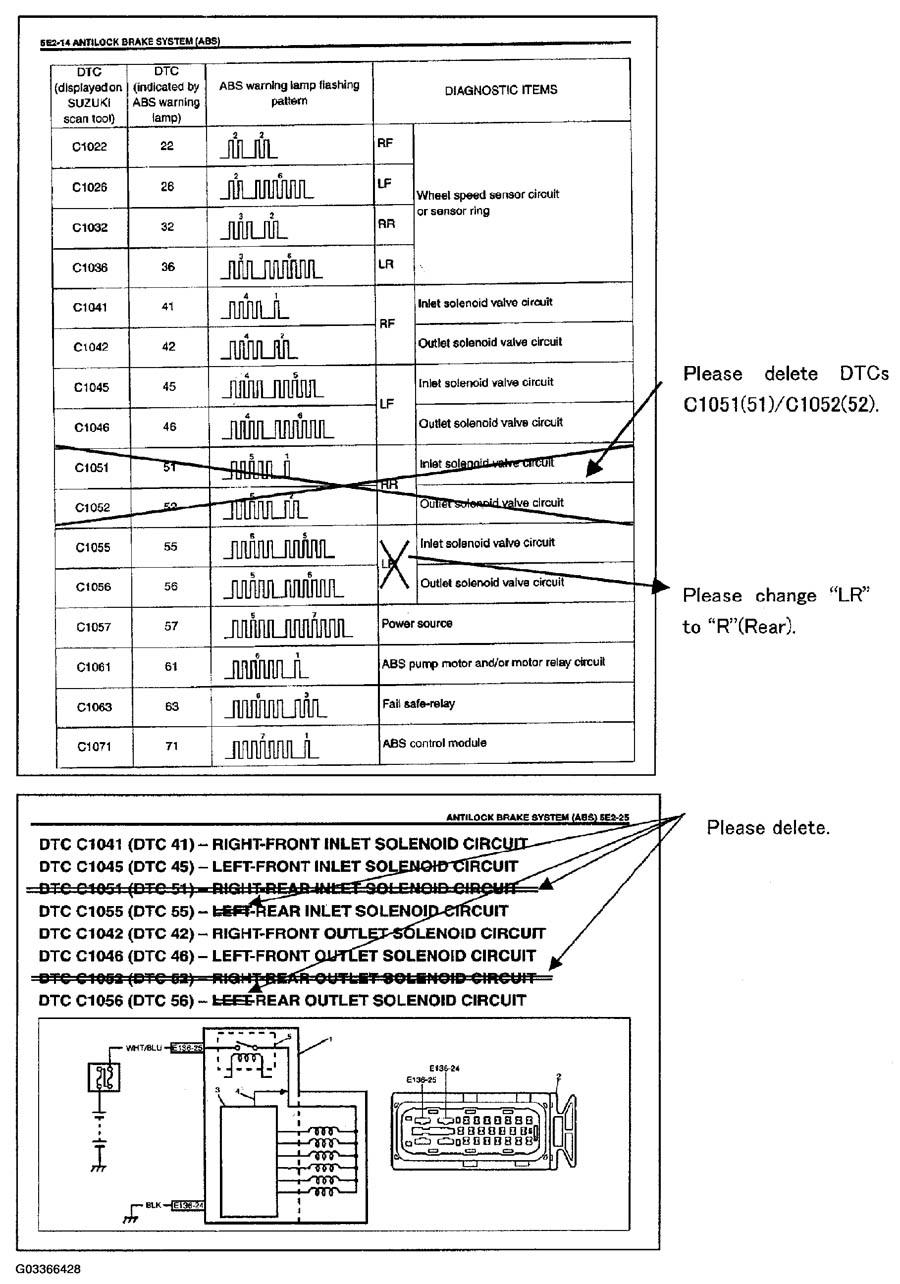

- Using a dark pen or permanent type marker, correct this page as shown in the illustration on the top portion of page two of this bulletin.
- Next, turn to page 5E2-25.
- Again, using a dark pen or permanent Identifying type marker, correct page 5E2-25 as shown in the bottom portion of page two of this bulletin.
