Removal & Installation

  1. Remove rear console box. See Fig 1.
  2. Remove front console box mounting screws and clips.
  3. Disconnect console box wire coupler.
  4. Remove rear console box. See Fig 1.
  5. Disconnect rear A/C main switch connector.
  6. Remove A/C main switch from front console box.
  7. To install, reverse removal procedure.

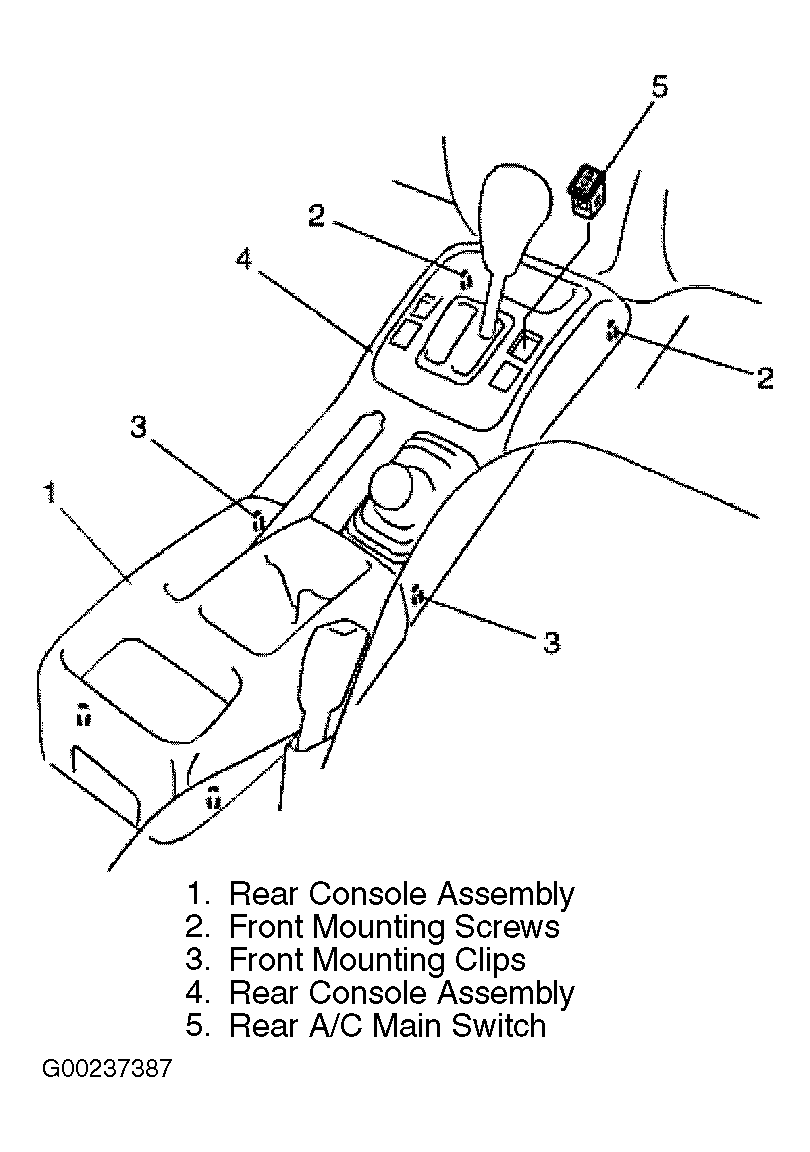

Fig 1: Identifying Console Assembly
G00237387Courtesy of SUZUKI OF AMERICA CORP.
