Removal & Installation

Raise and support vehicle. Remove nut retaining shock absorber to rear axle housing. See Fig 1 . Remove nut holding shock absorber to body, and remove shock absorber. To install, reverse removal procedure. Tighten all bolts to specification. See TORQUE SPECIFICATIONS  .

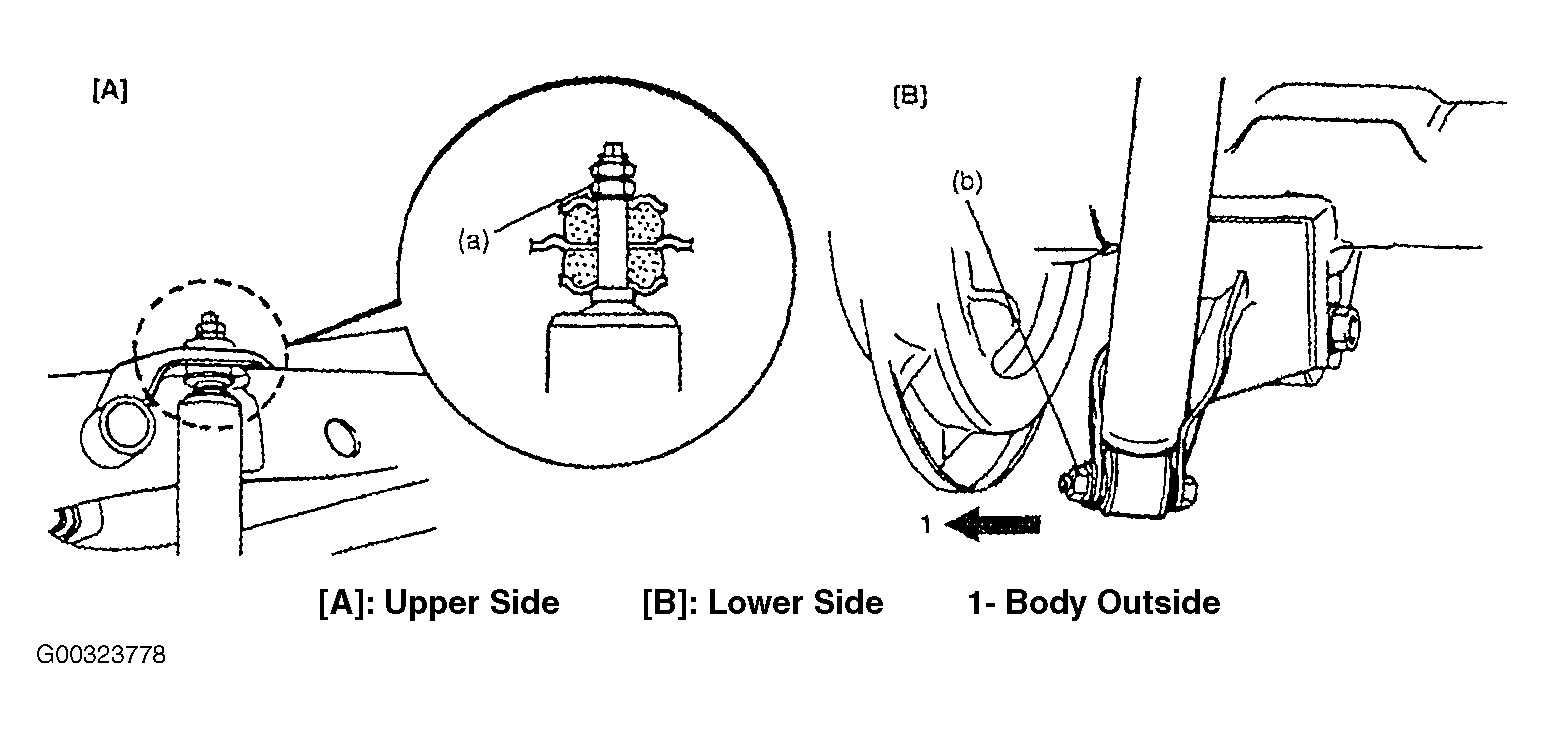

Fig 1: Identifying Shock Absorber Mounting Points

Courtesy of SUZUKI OF AMERICA CORP.
