Tie-Rod End Removal & Installation: Removal

Hoist vehicle and remove wheel.

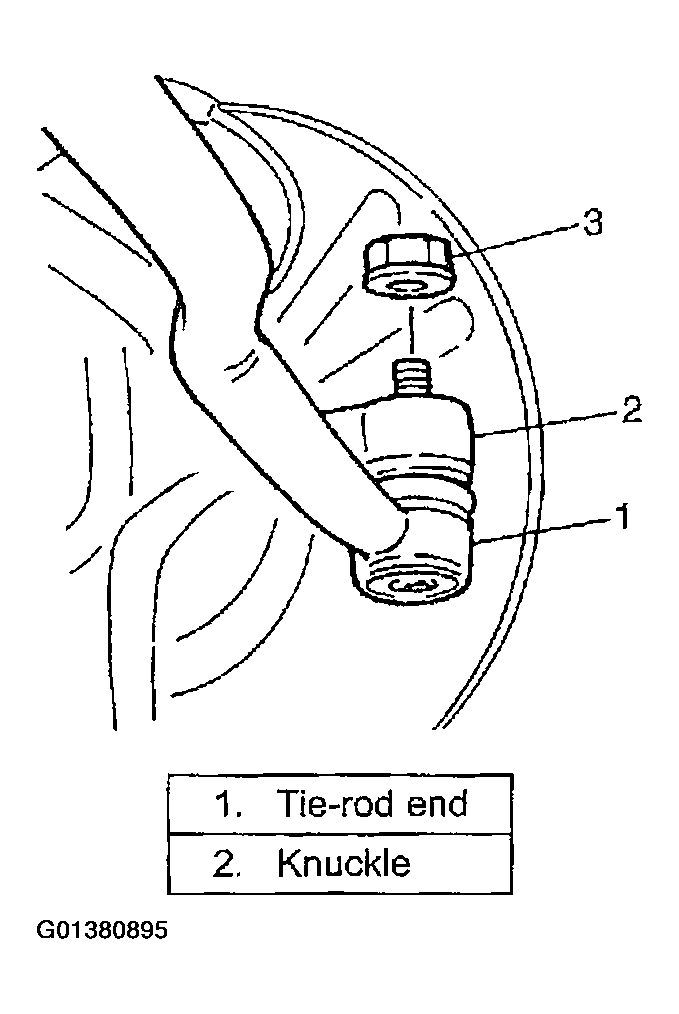

Remove tie-rod end nut (3).

Fig 1: Removing Tie-Rod End Nut
Courtesy of SUZUKI OF AMERICA CORP.

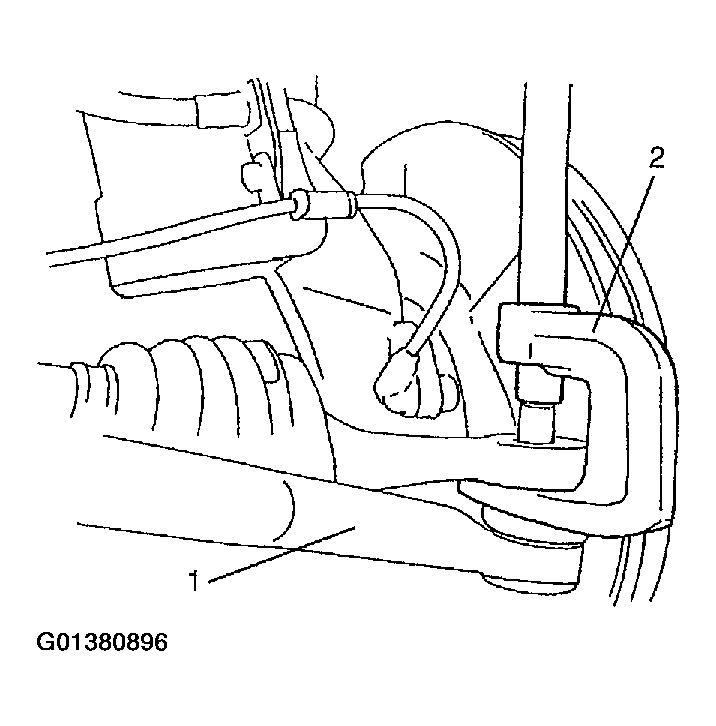

Disconnect tie-rod end (1) by using puller (2).

Fig 2: Disconnecting Tie-Rod End
Courtesy of SUZUKI OF AMERICA CORP.

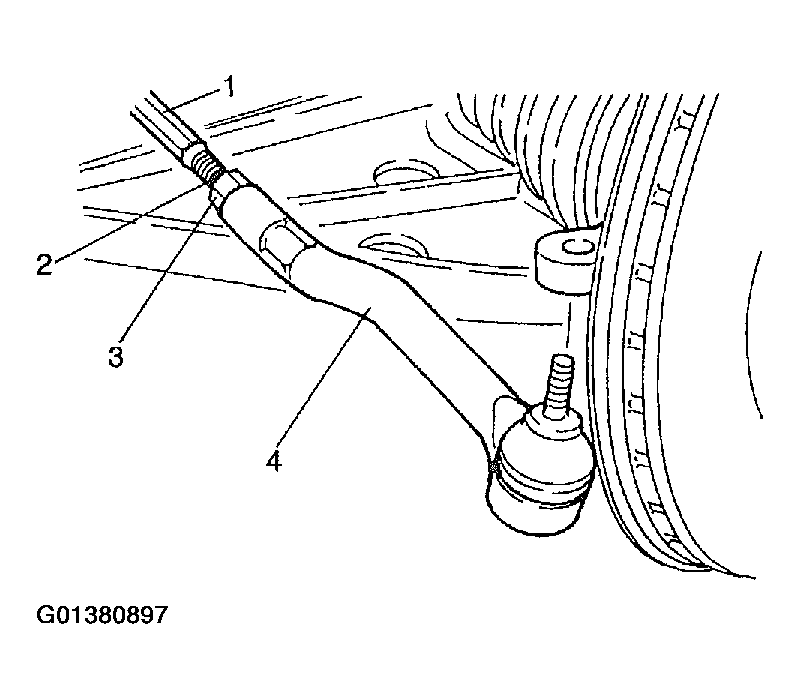

To facilitate adjustment after installation, put a mark (2) on tie-rod thread indicating position of tie-rod end lock nut (3). Then loosen lock nut (3) and remove tie-rod end (4) from tie-rod (1).

Fig 3: Identifying Tie-Rod Thread, Tie-Rod End & Lock Nut
Courtesy of SUZUKI OF AMERICA CORP.
