Power Steering System Symptom Diagnosis

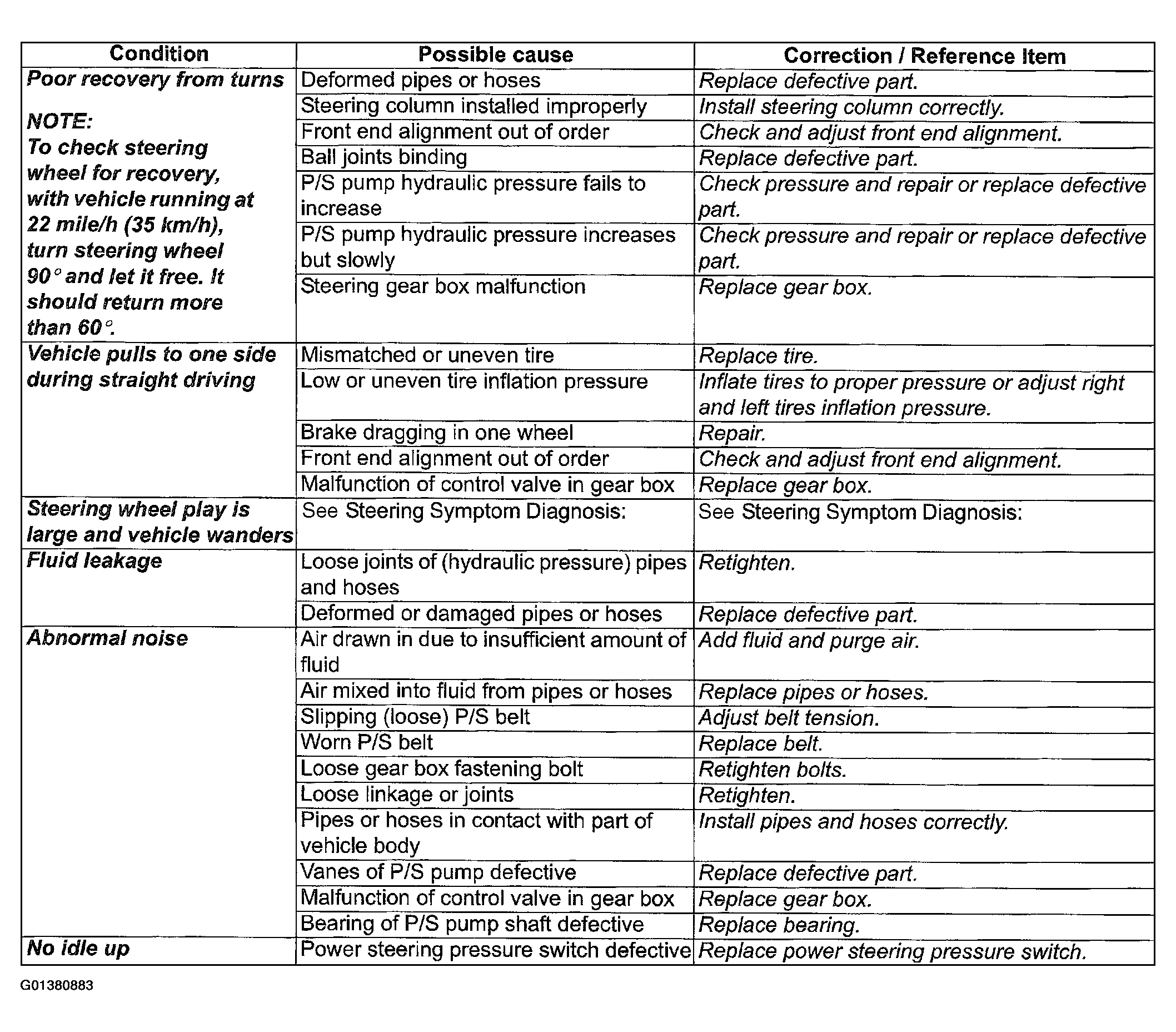

Fig 1: P/S System Symptom Diagnostic Chart (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

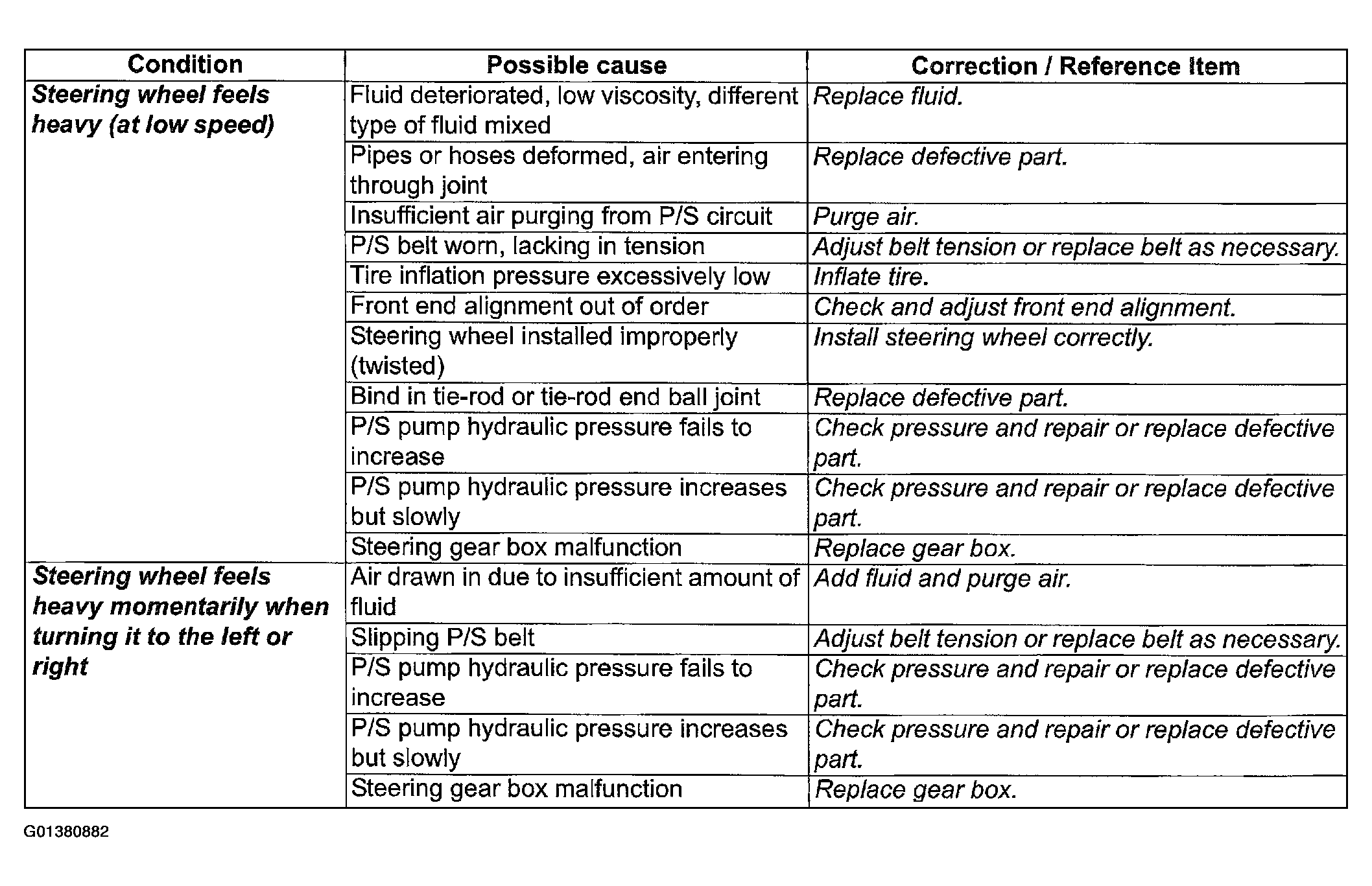

Fig 2: P/S System Symptom Diagnostic Chart (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
