Fuel Pressure Release

WARNING: This page is about a different variant/trim than selected.

Place transmission in Neutral (M/T) or Park (A/T). Set parking brake and block drive wheels.
On Swift, remove relay box cover near battery. Disconnect fuel pump relay connector. See Fig 1.
On Vitara, remove fuel pump relay connector (relay with Pink wire). Fuel pump relay is located under driver's side of dash, near main relay. See Fig 2.
On all models, remove fuel filler cap to release pressure. Reinstall fuel filler cap. Start engine, and idle until engine dies. Crank engine 2 or 3 times to ensure lines are empty. Reconnect fuel pump relay connector.

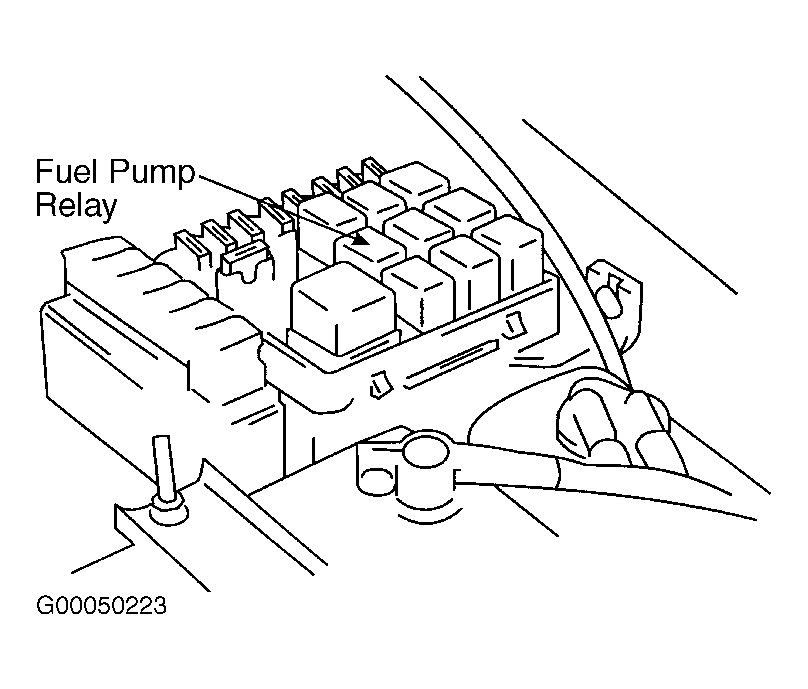

Fig 1: Locating Fuel Pump Relay (Swift)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Locating Fuel Pump Relay (Vitara)

Courtesy of SUZUKI OF AMERICA CORP.
