Oil Cooler Hoses: Removal

Lift up the vehicle.
Ensure to wash dirt off from around pipe joints.
With engine is cool, loosen oil cooler pipe union bolts "2" with oil outlet union locked and remove oil cooler pipes "1" from oil outlet unions and hoses. See Fig 1 .
NOTE: To avoid fluid leakage, plug open ends of oil outlet unions and hoses right after they are disconnected.

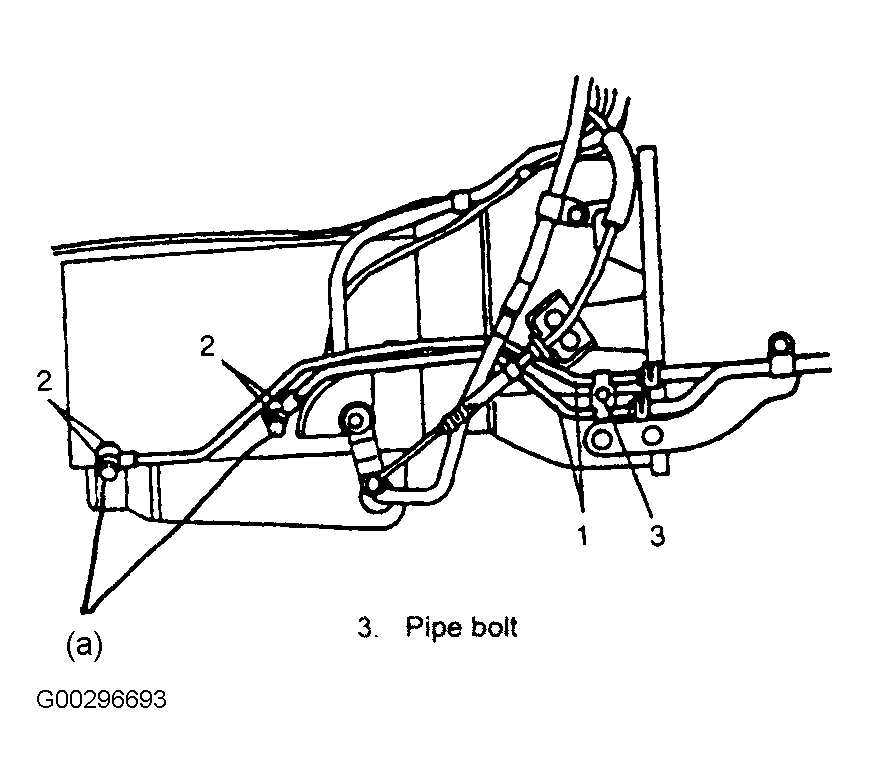

Fig 1: Removing Oil Cooler Hoses

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Installing Oil Cooler Hoses

Courtesy of SUZUKI OF AMERICA CORP.
