Parking Pawl And Manual Shift Linkage: Installation

1. Install NEW manual shaft oil seals to both sides of the transmission case using a socket and a hammer. Lubricate NEW oil seals with ATF.
2. Install the manual shift shaft and shift lever to the transmission case. See Fig 1 .
3. Install the manual shift lever pin to the manual shift lever hub using a hammer. See Fig 2 .
4. Slide the manual lever hub protection sleeve over the manual detent lever hub using a hammer and a chisel. See Fig 3 . Install the parking pawl rod to the manual shift shaft. See Fig 4 .
5. Install the following parking pawl components to the transmission case:
   • The pawl. See Fig 5 .
   • The pivot pin.
   • The torsion spring.
   • The plate.
   • The plate bolts. Tighten plate bolts to specification. See TORQUE SPECIFICATIONS  .

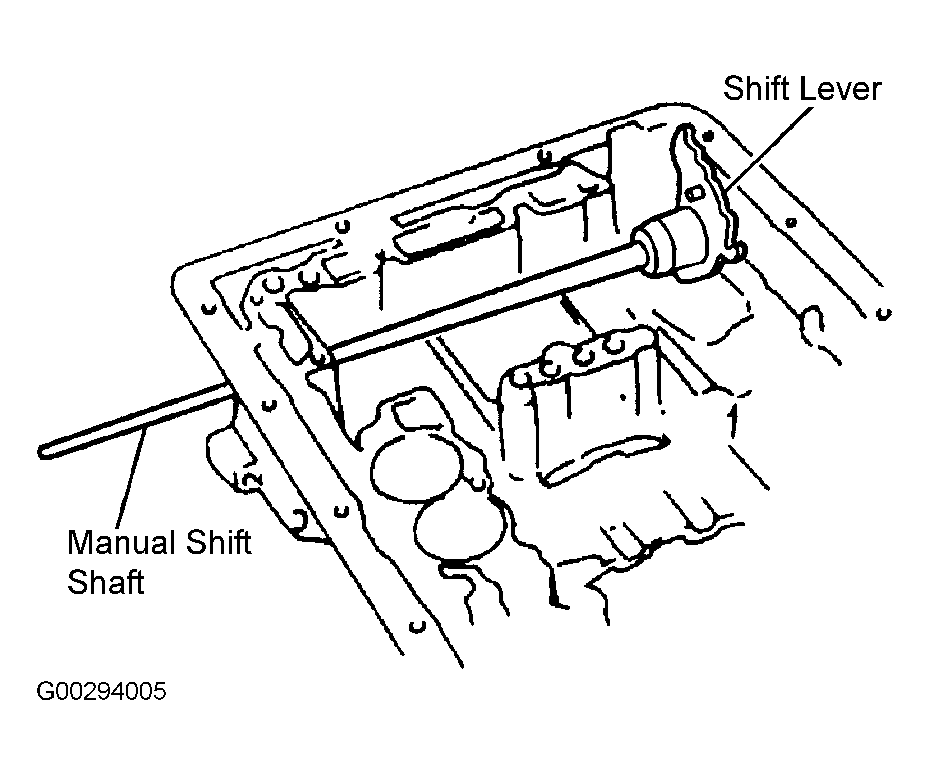

Fig 1: Identifying Manual Shift Shaft & Lever

Courtesy of GENERAL MOTORS CORP.

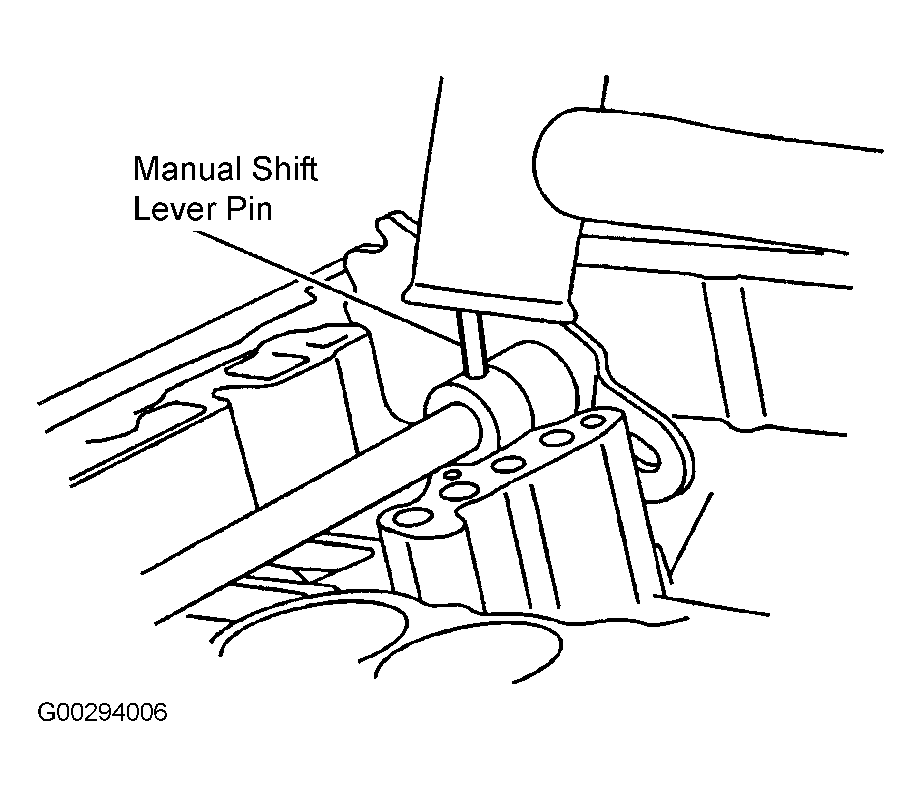

Fig 2: Installing Manual Shift Lever Pin

Courtesy of GENERAL MOTORS CORP.

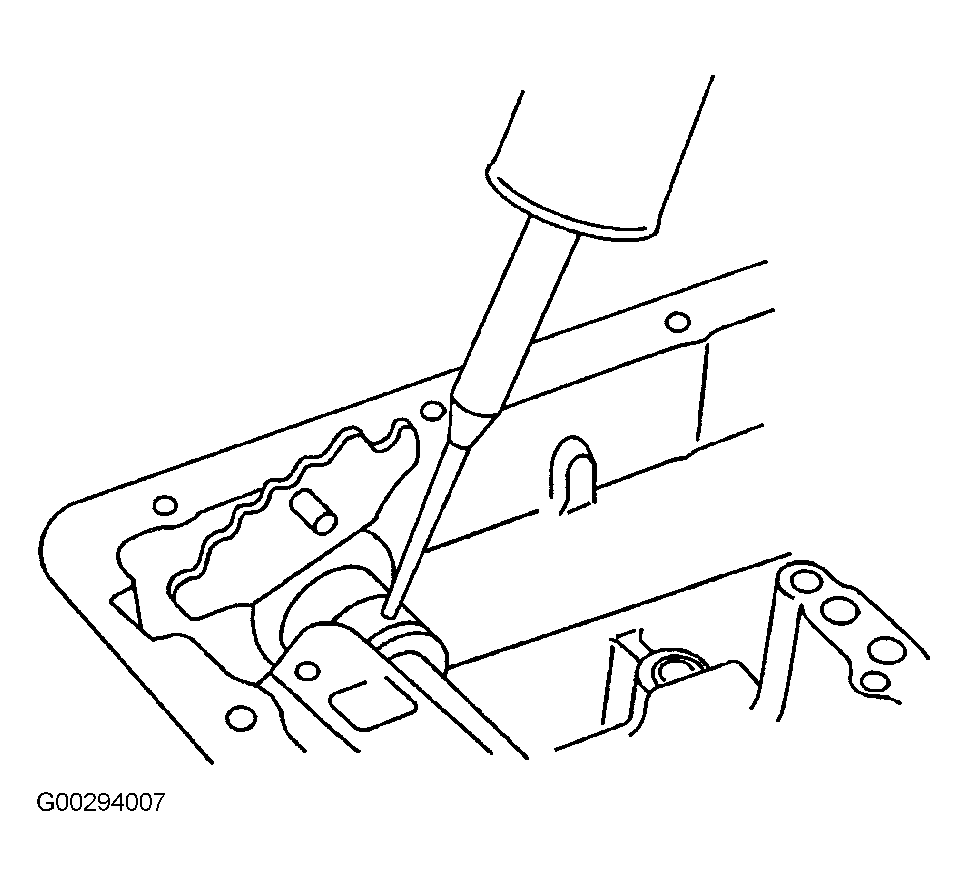

Fig 3: Installing Manual Lever Hub Protection Sleeve

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Parking Pawl Rod

Courtesy of GENERAL MOTORS CORP.

Fig 5: Identifying Parking Pawl Components

Courtesy of GENERAL MOTORS CORP.
