Measurement Procedure

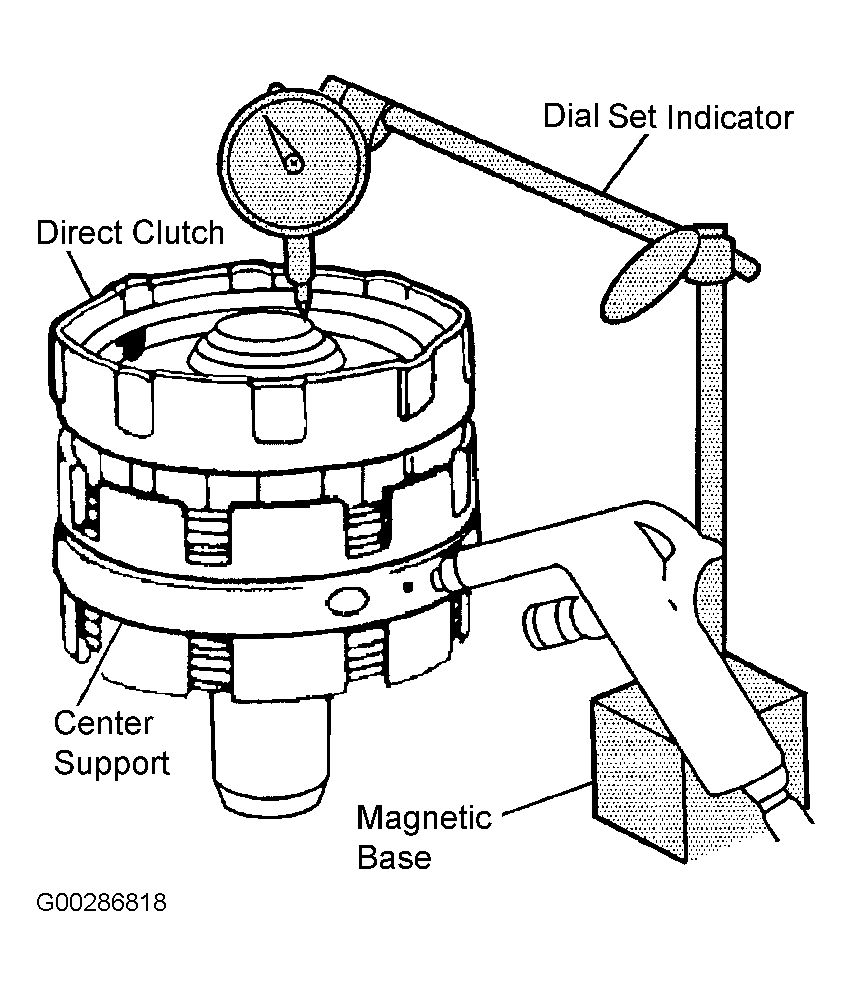

- Install Dial Indicator Set and Magnetic Base. Temporarily install the direct clutch onto the center support. See Fig 1 . Place Dial Indicator Set plunger on the direct clutch piston.
- Apply 58-114 psi (4.08-8.02 Kg/CM2 ) of compressed air into the second left fluid passage in the overdrive case. Measure the direct clutch piston stroke. See DIRECT CLUTCH PISTON STROKE SPECIFICATIONS table.
- If the direct clutch piston stroke is not within specifications, install a flange of one of the following sizes in order to adjust the stroke:
- 0.141" (3.60 mm)
- 0.149" (3.80 mm)
- 0.157" (4.00 mm)
DIRECT CLUTCH PISTON SPECIFICATIONS
| Application | Stroke Clearance - In. (mm) | Return Spring Free Length - In. (mm) |
|---|---|---|
| Grand Vitara | .036-.078 (0.91-1.99) | .595 (15.13) |
| Sportage | .040-.089 (1.01-2.25) | .595 (15.13) |
| Tracker | .008-.069 (0.20-1.75) | .595 (15.13) |
| Vitara | .042-.084 (1.06-2.14) | .595 (15.13) |
