Coil Spring: Installation

Reverse removal procedure to install coil spring. Note the following:

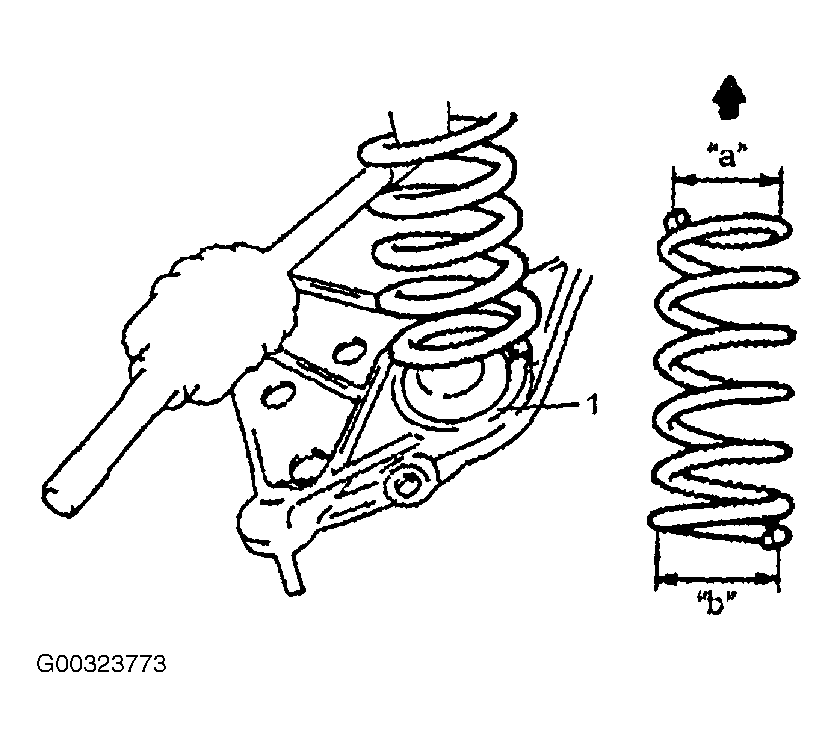

• Position largest diameter end of coil spring to bottom spring seat stop on lower control arm. See Figure .
• Tighten all nuts and bolts to specification. See TORQUE SPECIFICATIONS  .
• When installing circlip to axle shaft, utilize screw hole in axle shaft to pull it out and install circlip.
• Check wheel alignment. See appropriate SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.
