Tie-Rod End Removal & Installation: Installation

Install tie-rod end lock nut (3) and tie-rod end (4) to tie-rod (1). Tighten lock nut (3) to mark (2) on tie-rod thread.
Install tie-rod end (4) to knuckle (5). Tighten new tie-rod end nut (3) to specified torque.
Tightening torque

Tie-rod end nut (a): 48 N.m (4.8 kg-m, 35.0 lb-ft)

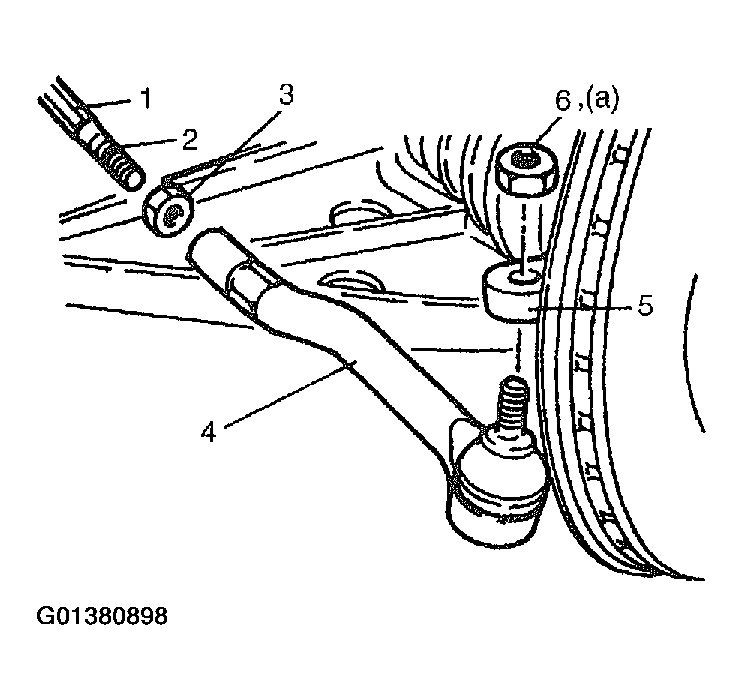

Fig 1: Identifying Tie-Rod End Lock Nut, Tie-Rod End & Tie-Rod
Courtesy of SUZUKI OF AMERICA CORP.
After installing wheels, lower vehicle and tighten wheel nuts to specified torque.
Tightening torque

Wheel nut (a): 100 N.m (10.0 kg-m, 72.0 lb-ft)

Fig 2: Identifying Wheel & Wheel Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Check that proper amount of toe-in is obtained. See appropriate FRONT SUSPENSION article.
After confirming proper amount of toe-in, tighten tie-rod end lock nut to specified torque.
Tightening torque

Tie-rod end lock nut (a): 65 N.m (6.5 kg-m, 47.0 lb-ft)

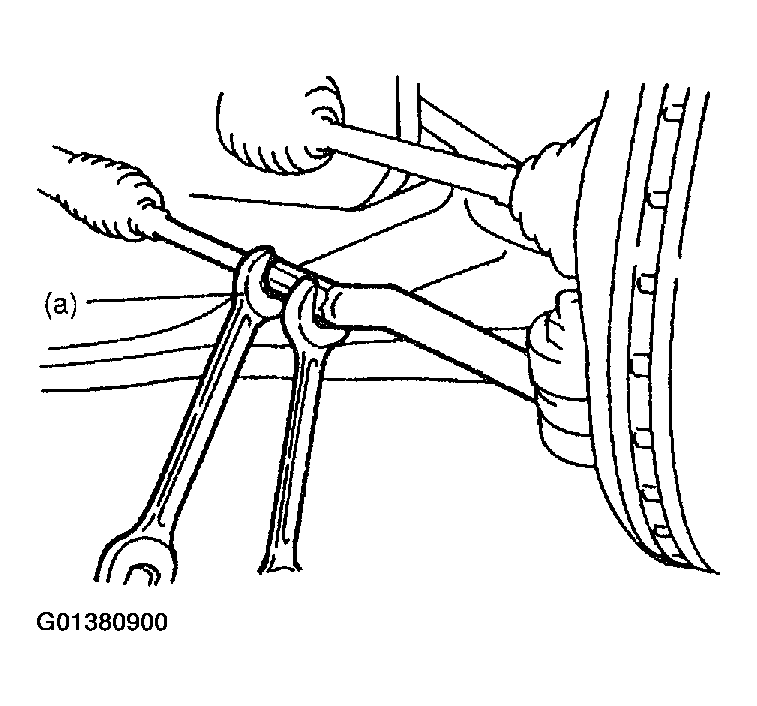

Fig 3: Tightening Tie-Rod End Lock Nut
Courtesy of SUZUKI OF AMERICA CORP.
