Transmission Mount: Service and Repair

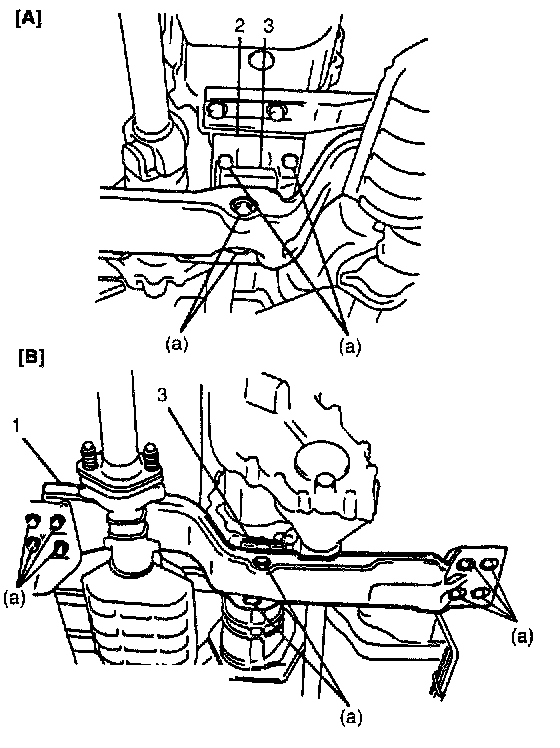

ENGINE REAR MOUNTING








When replacement of mounting parts are necessary, torque bolts and nut as specified.
Tightening torque
Engine rear mounting bolt and nut (a) 50 Nm (5.0 kg-m, 36.5 ft. lbs.)
