On Vehicle Service

For J20 Engine:

GENERAL INFORMATION

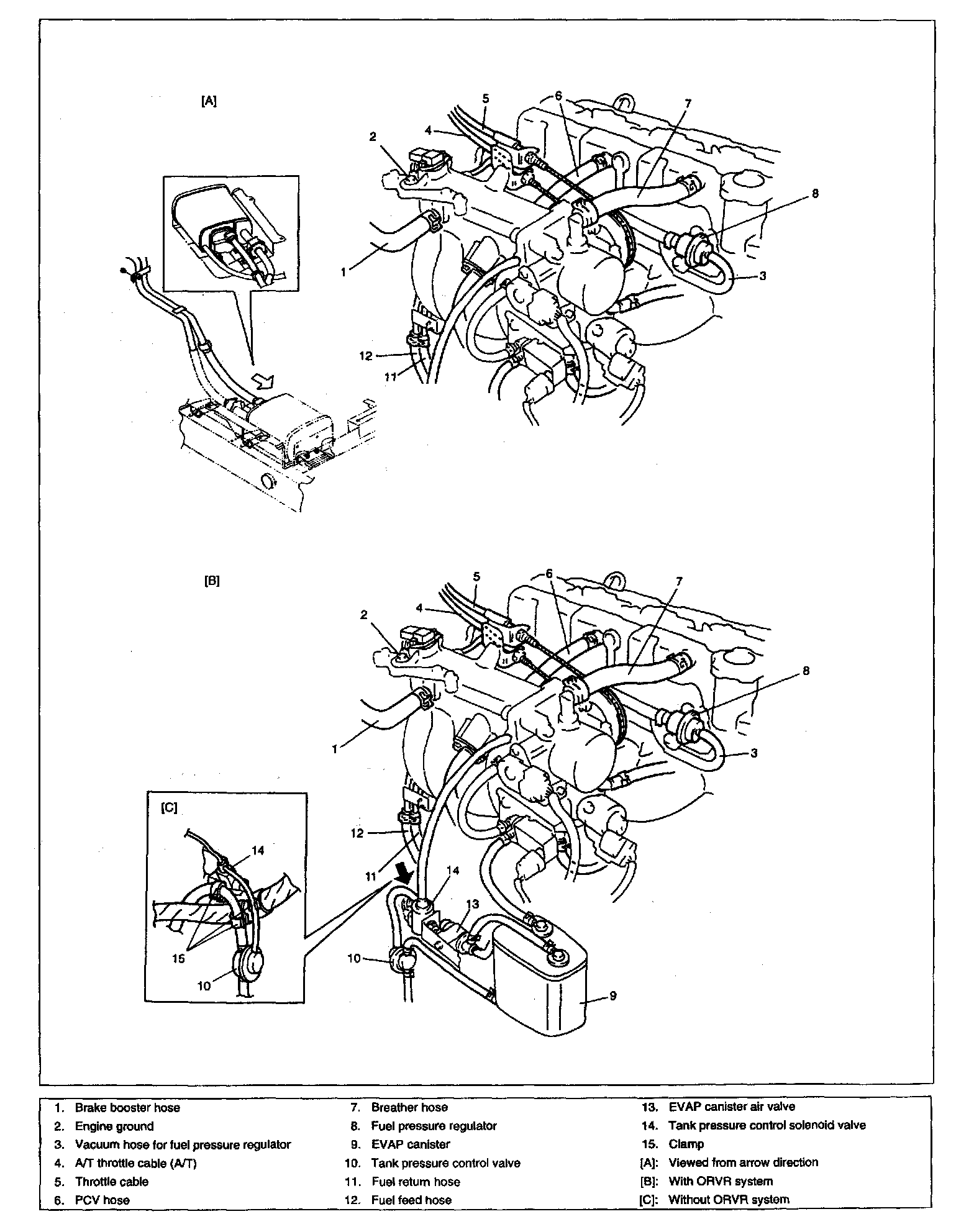

When hoses are disconnected and system components are removed for service, reinstall components properly, and route and connect hoses correctly after service. Refer to Emission Control Information Label or the figure for proper routing of hoses.
