B-3 Fuel Pressure

System Diagram:

Special tool
(A) : 09912 - 58441
(B) : 09912 - 58431
(C) : 09919 - 58421

Step 1 - 2:

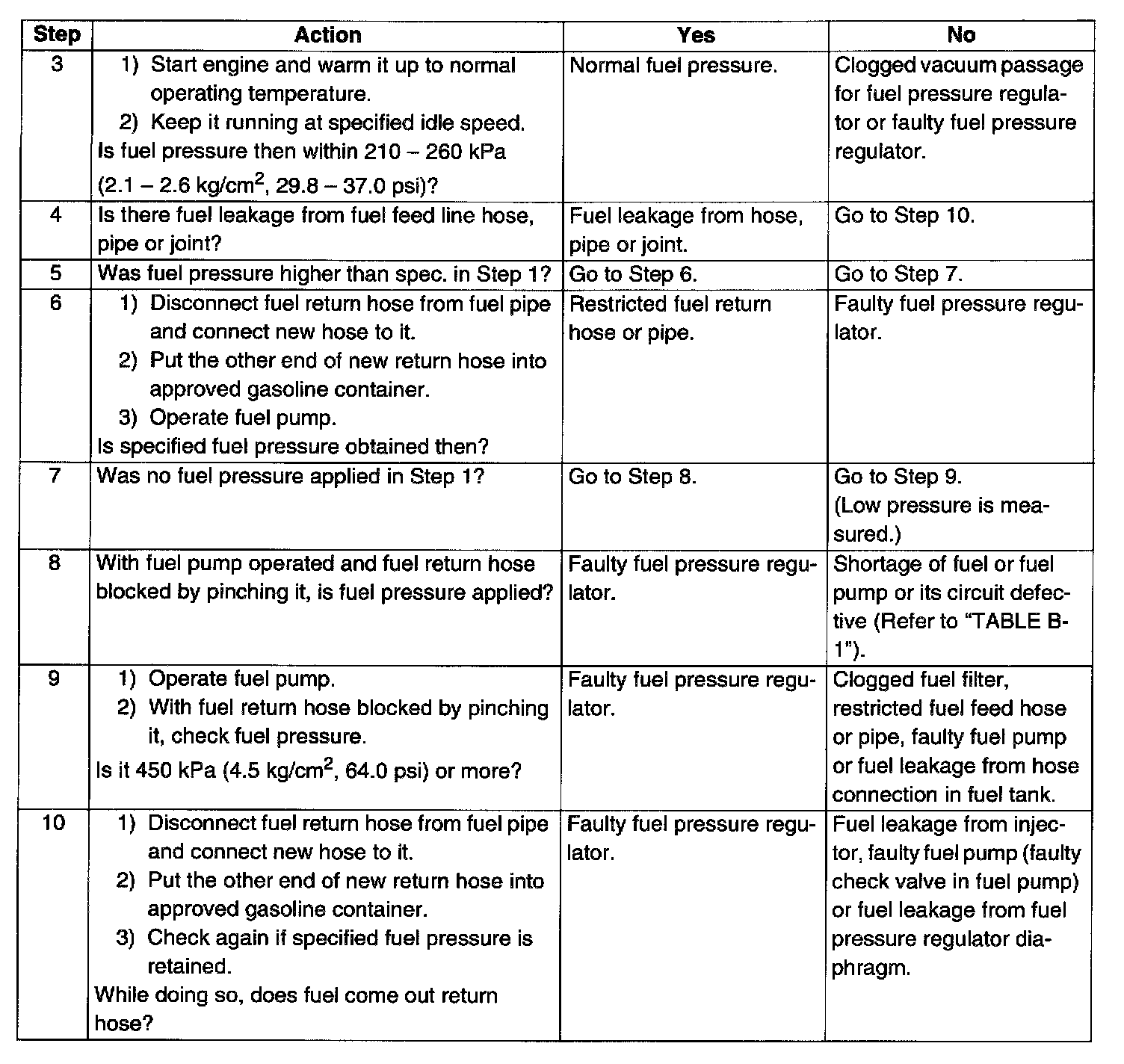

Step 3 - 10:

INSPECTION

NOTE: Before using the following flow table, check to make sure that battery voltage is higher than 11 V. If battery voltage is low, pressure becomes lower than specification even if fuel pump and line are in good condition.
