A-3 MIL Does Not Light, Engine Does Not Start

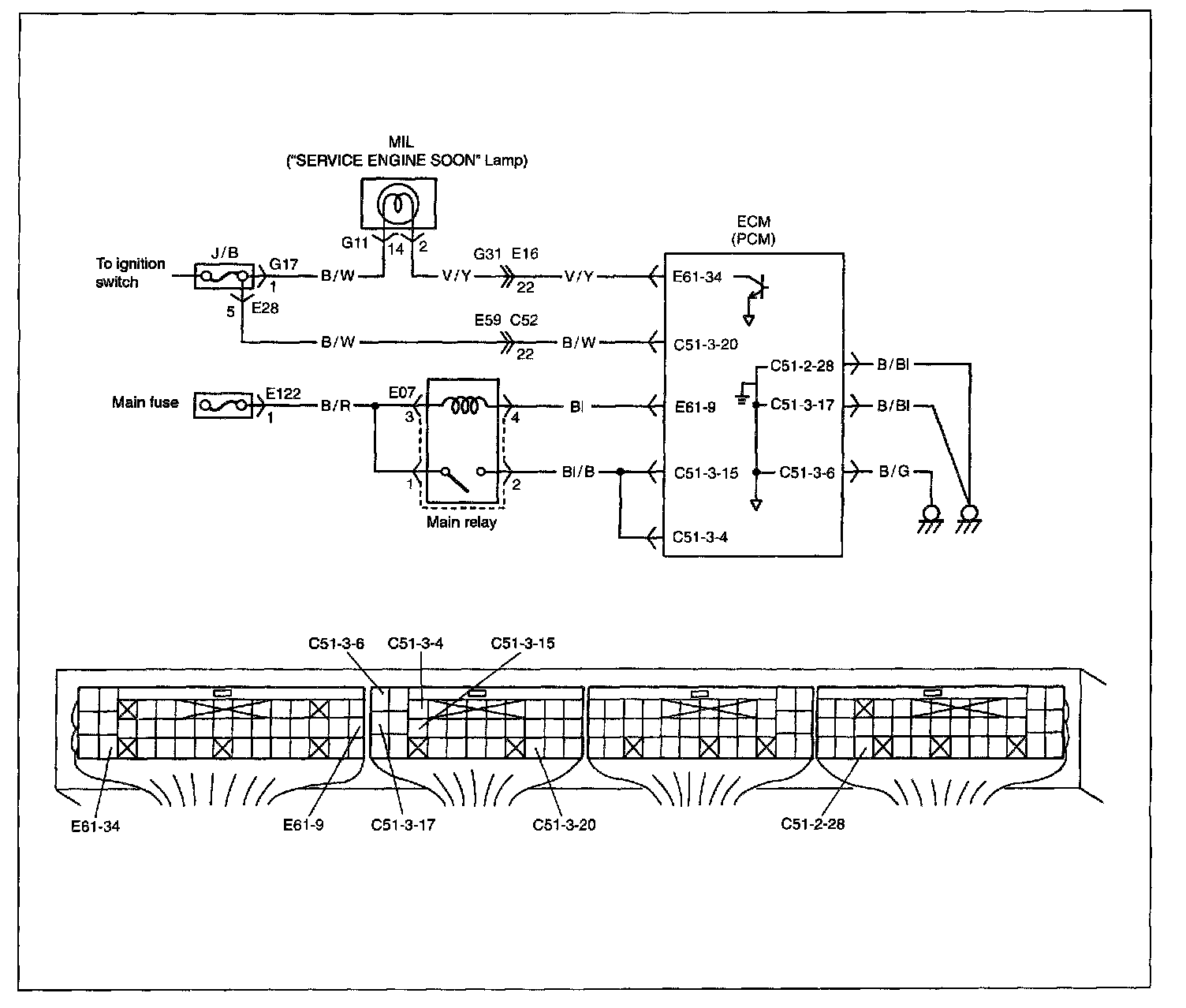

Wiring Diagram:

CIRCUIT DESCRIPTION
When the ignition switch is turned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM (PCM).

Step 1 - 2:

C51-2-13 - C51-2-30:

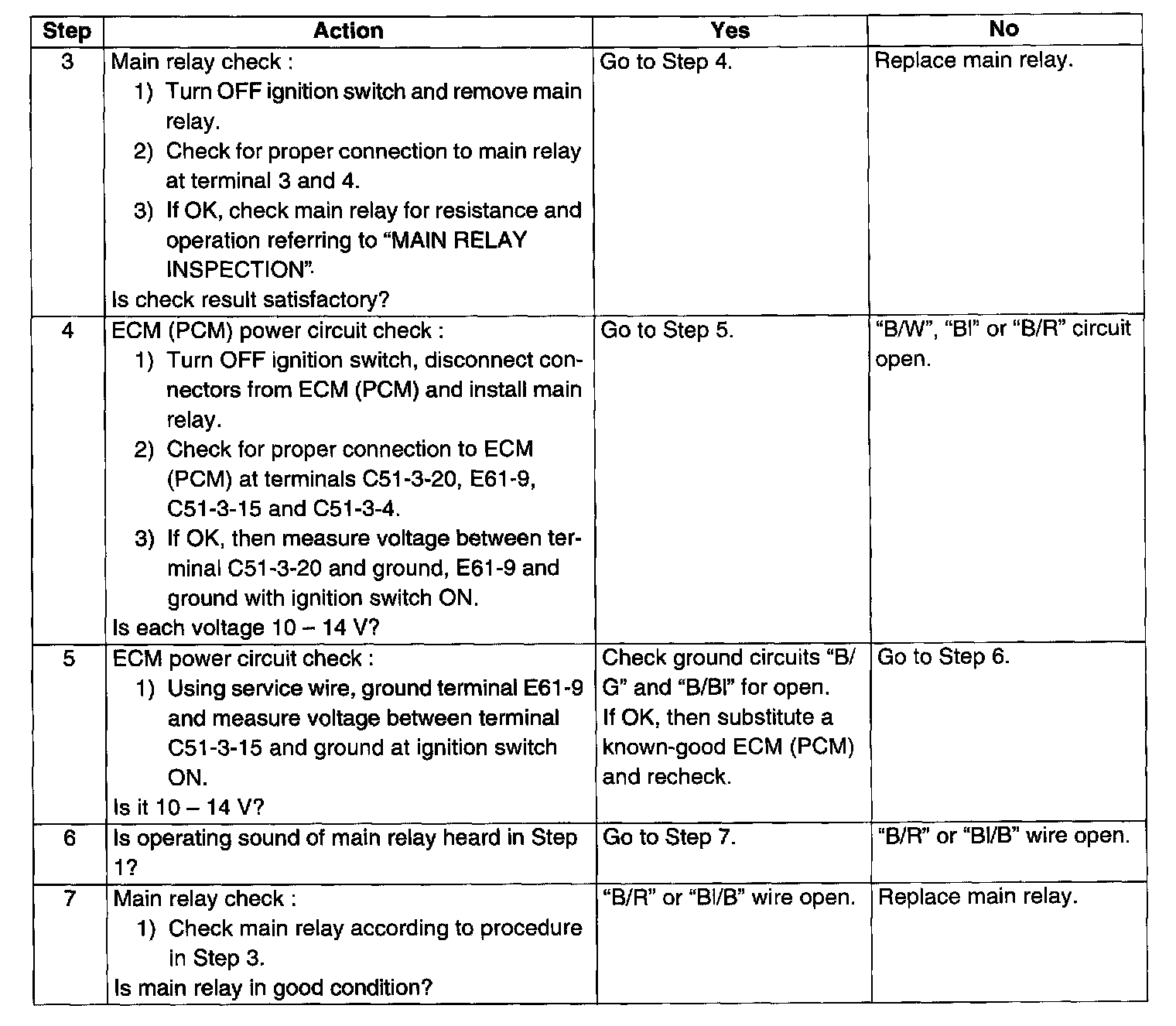

INSPECTION
