Disabling Air Bag System (Integra)
- Obtain radio anti-theft code from vehicle owner and write down preset radio frequencies. Ensure ignition is OFF. Disconnect negative battery cable and wait at least 3 MINUTES.
- Remove access panel from under steering wheel. Disconnect 2-pin connector between driver air bag module and cable reel. See Figure and Fig 1
.

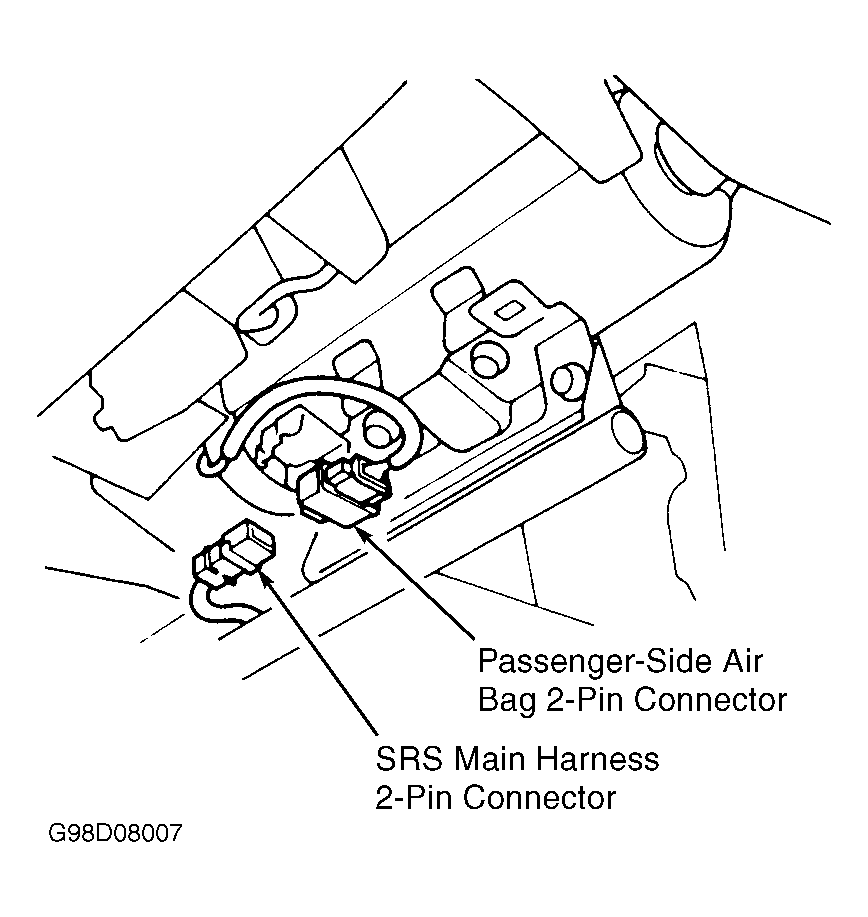

- Remove glove box. Disconnect 2-pin connector between passenger air bag module and SRS main harness. See Fig 2.
