Master Cylinder

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2000 Suzuki Vitara, 2000 Suzuki Swift, 2000 Suzuki Grand Vitara, 2000 Suzuki Esteem, and 1999 Suzuki Vitara. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: All models are equipped with master cylinder type "A" with ABS, or type "B" without ABS. Use illustration for exploded view of master cylinder assembly. See Fig 1.

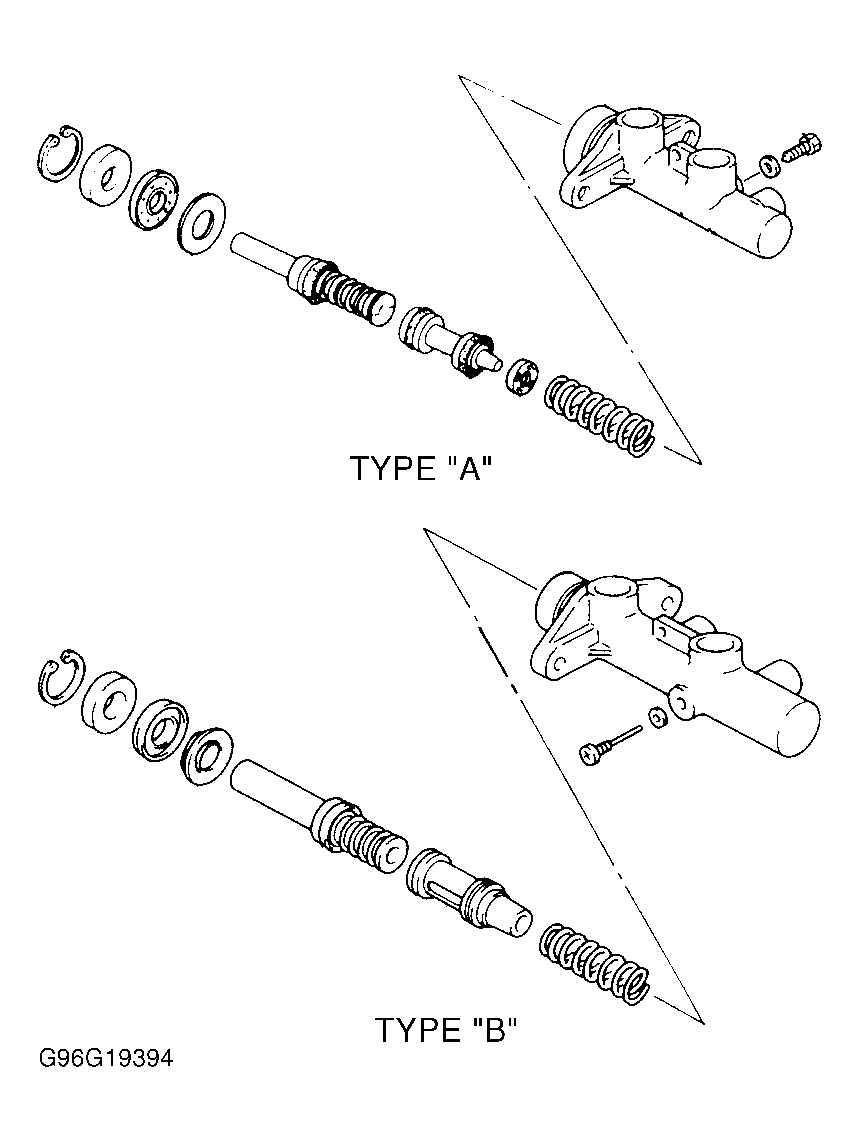

Fig 1: Identifying Master Cylinder Components (All Models)

Courtesy of SUZUKI OF AMERICA CORP.
