Home >> Suzuki >> 2001 >> Swift GL L4-1298cc 1.3L SOHC MFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Flow of Diagnosis >> Diagnostic Flow Table

April 5, 2026: LEMON Manuals is launched! Read the announcement.

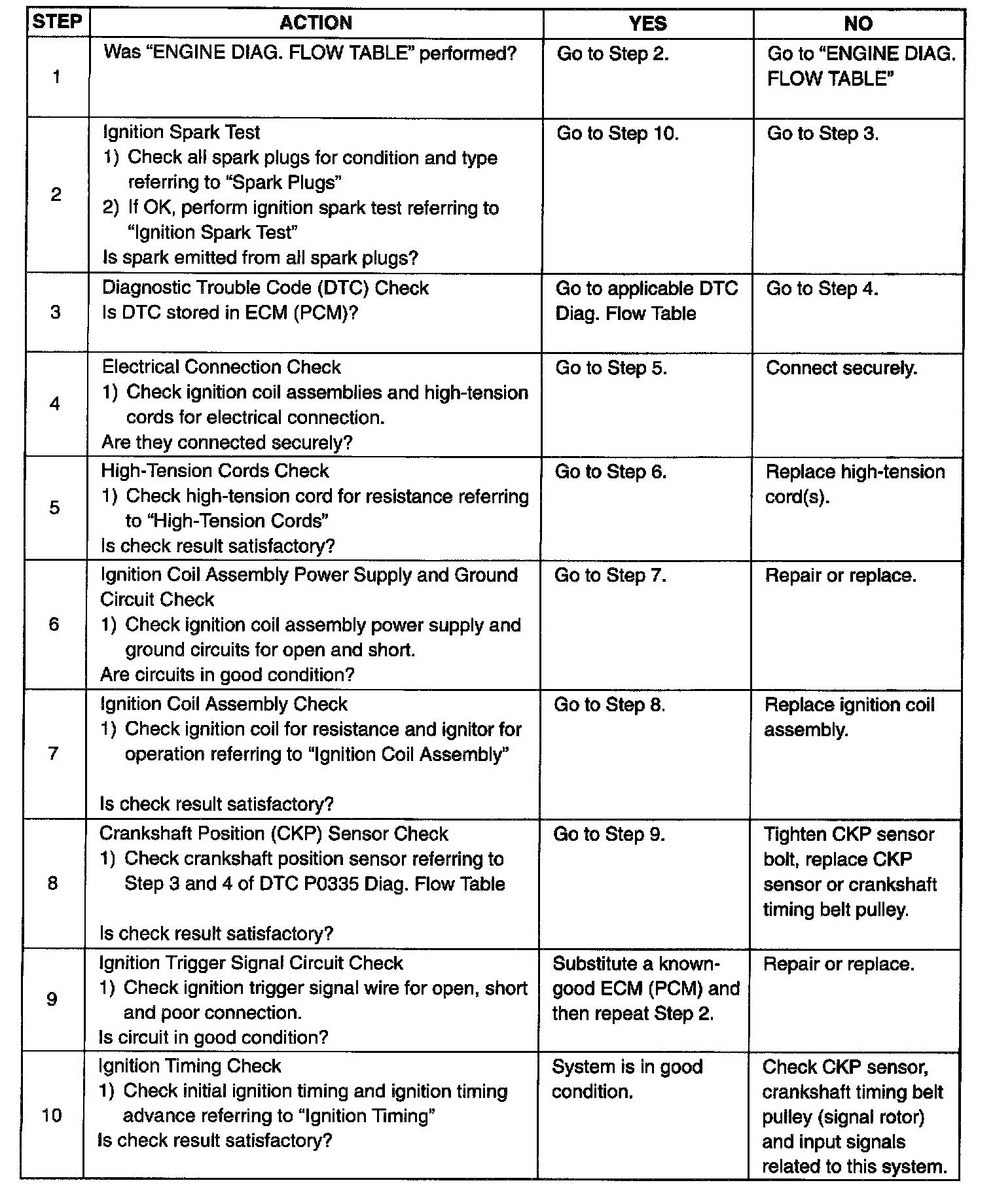

Diagnostic Flow Table

Step 1 - 10:
