Fuse and Fusible Link Locations

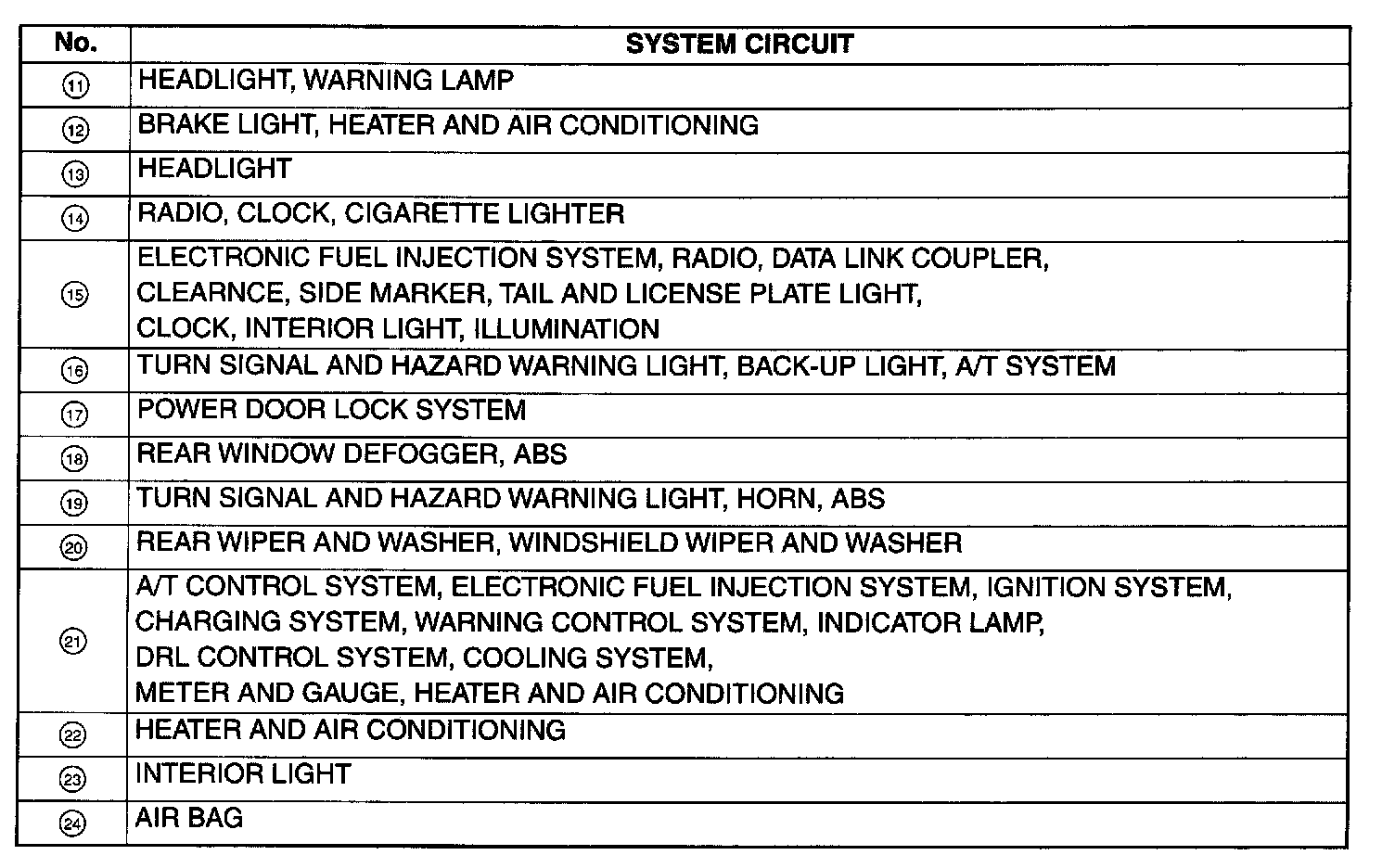

The chart shows the circuits protected by each fuse.

System Circuit Chart:




SYSTEM CIRCUIT CHART

Main Fuse:




MAIN FUSE

Junction/Fuse Block:




JUNCTION/FUSE BLOCK
