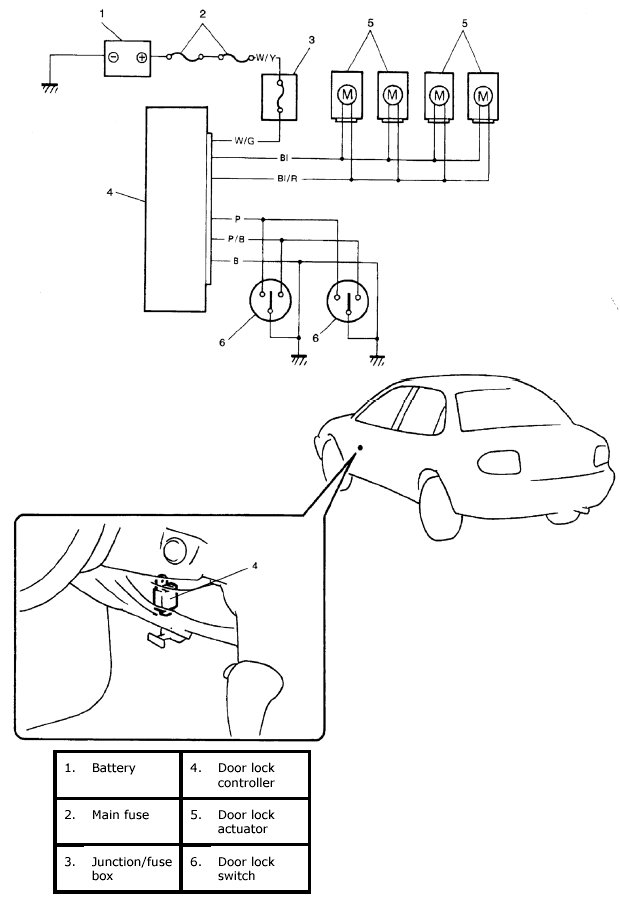

Power Door Lock Control System Wiring Circuit Diagram
Power Door Lock Control System Wiring Circuit Diagram:
