Manual Rack & Pinion: Overhaul

NOTE: Manufacturer recommends replacing steering gear unit if repair and/or adjustment is needed.

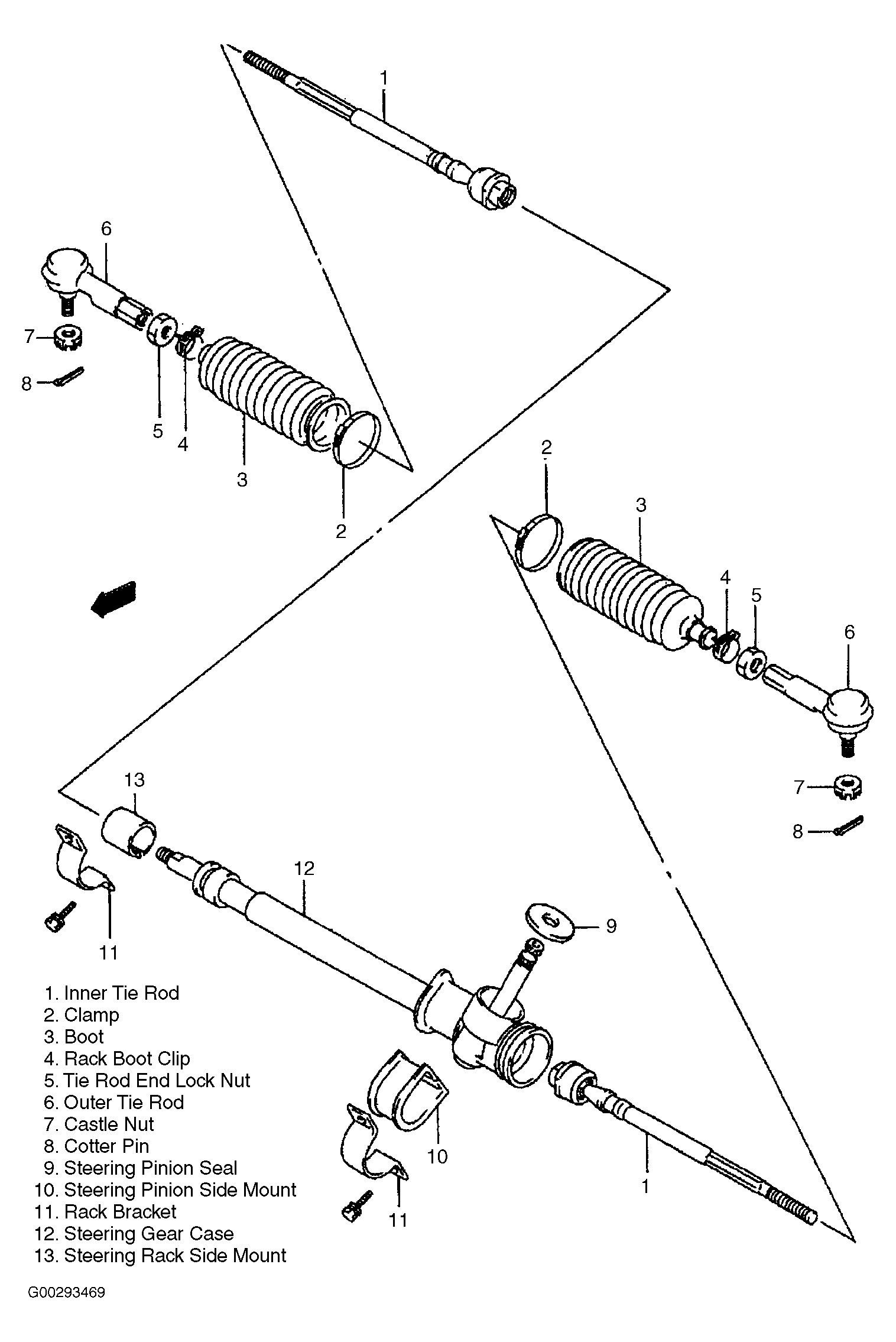

Fig 1: Exploded View Of Rack & Pinion Steering Gear
G00293469Courtesy of SUZUKI OF AMERICA CORP.
