Select Cable: Removal

  1. Remove console box.
  2. Remove parking brake lever cover and shift control lever cover.
  3. Remove select indicator.
  4. Disconnect select cable from selector lever and from floor bracket. See Fig 1 .
  5. Disconnect select cable from transaxle.
  6. Disconnect select cable from dash panel.

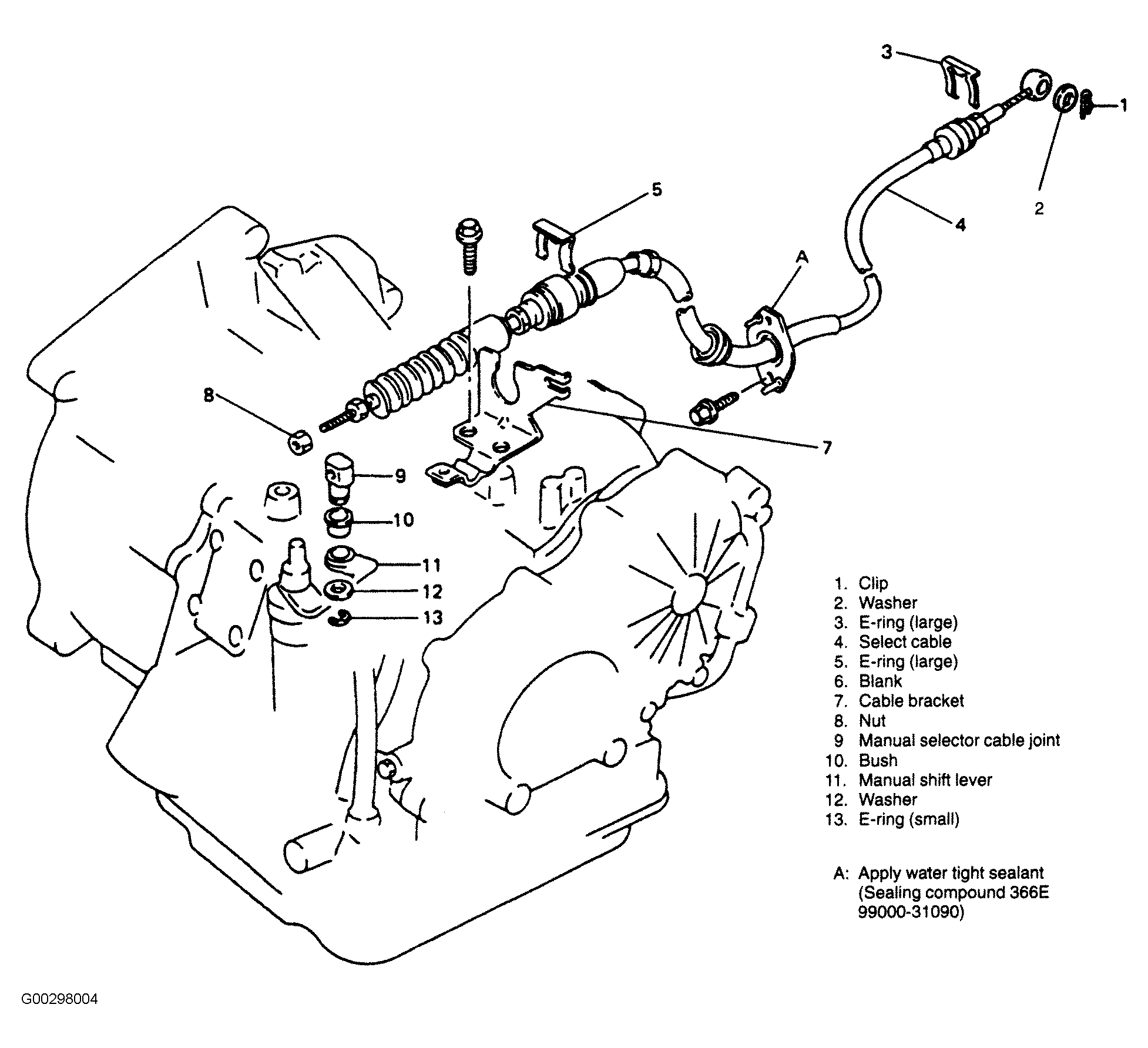

Fig 1: Exploded View Of Select Cable
G00298004Courtesy of SUZUKI OF AMERICA CORP.
