Starter Motor: Specifications

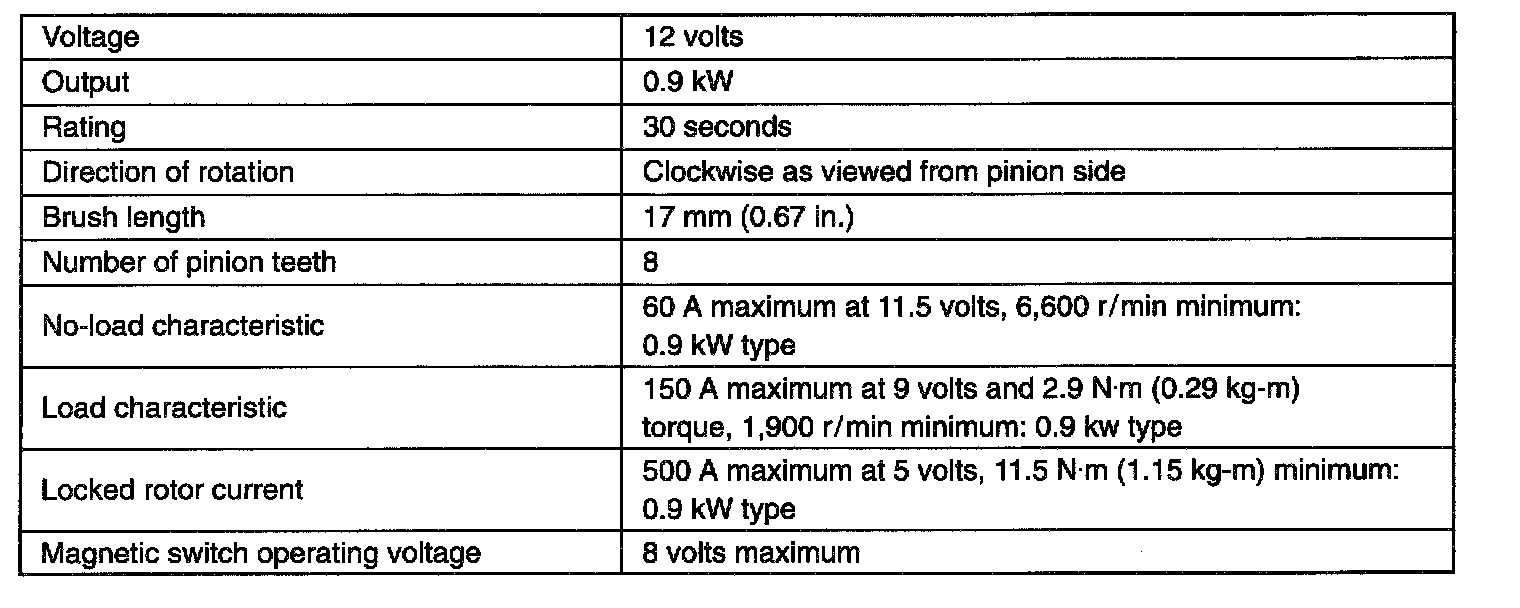

Specifications (0.9 kW Conventional Type):



Specifications (1.2 kW Reduction Type):
