A-3 MIL Does Not Light, Engine Does Not Start

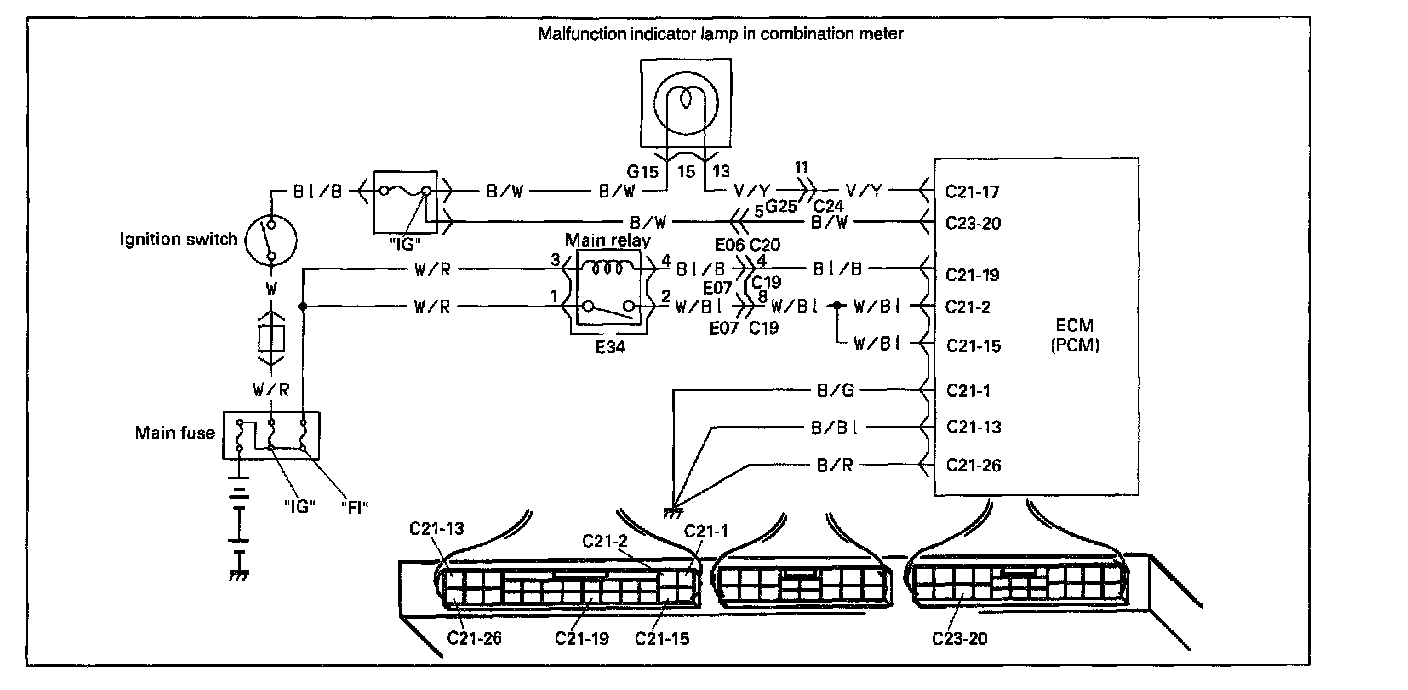

CIRCUIT DESCRIPTION
When the ignition switch tuned ON, the main relay turns ON (the contact point closes) and the main power is supplied to ECM.

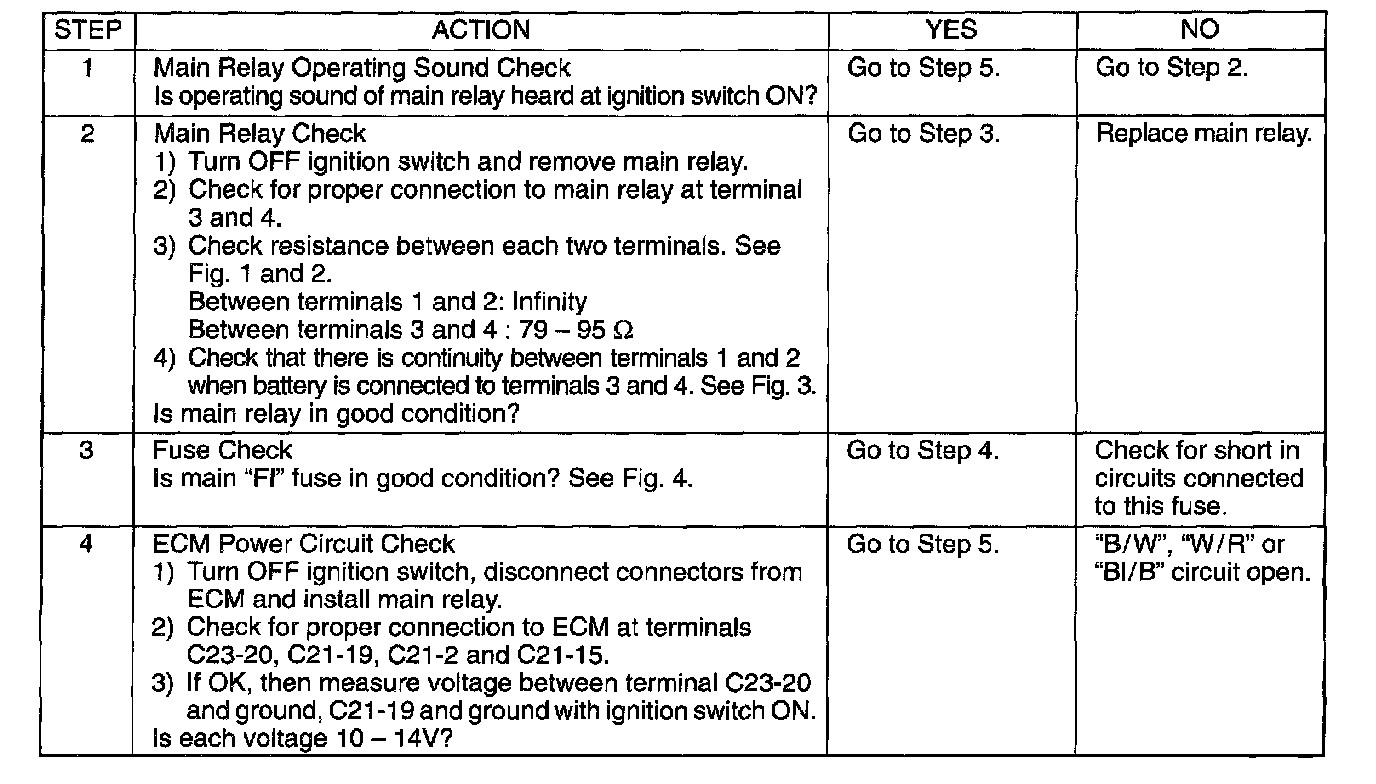

Step 1 - 4:

Step 5 - 7:

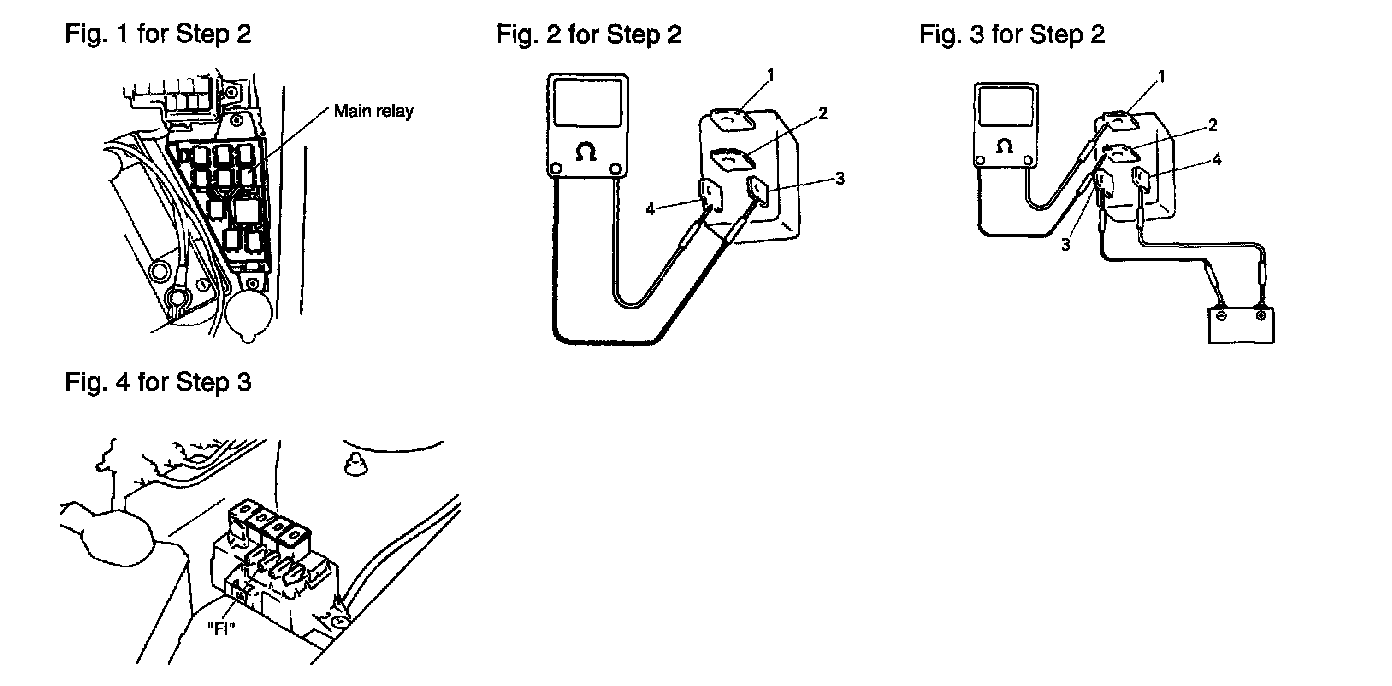

Fig. 1, 2, 3, 4 For Step 2, 3:
