Engine Room

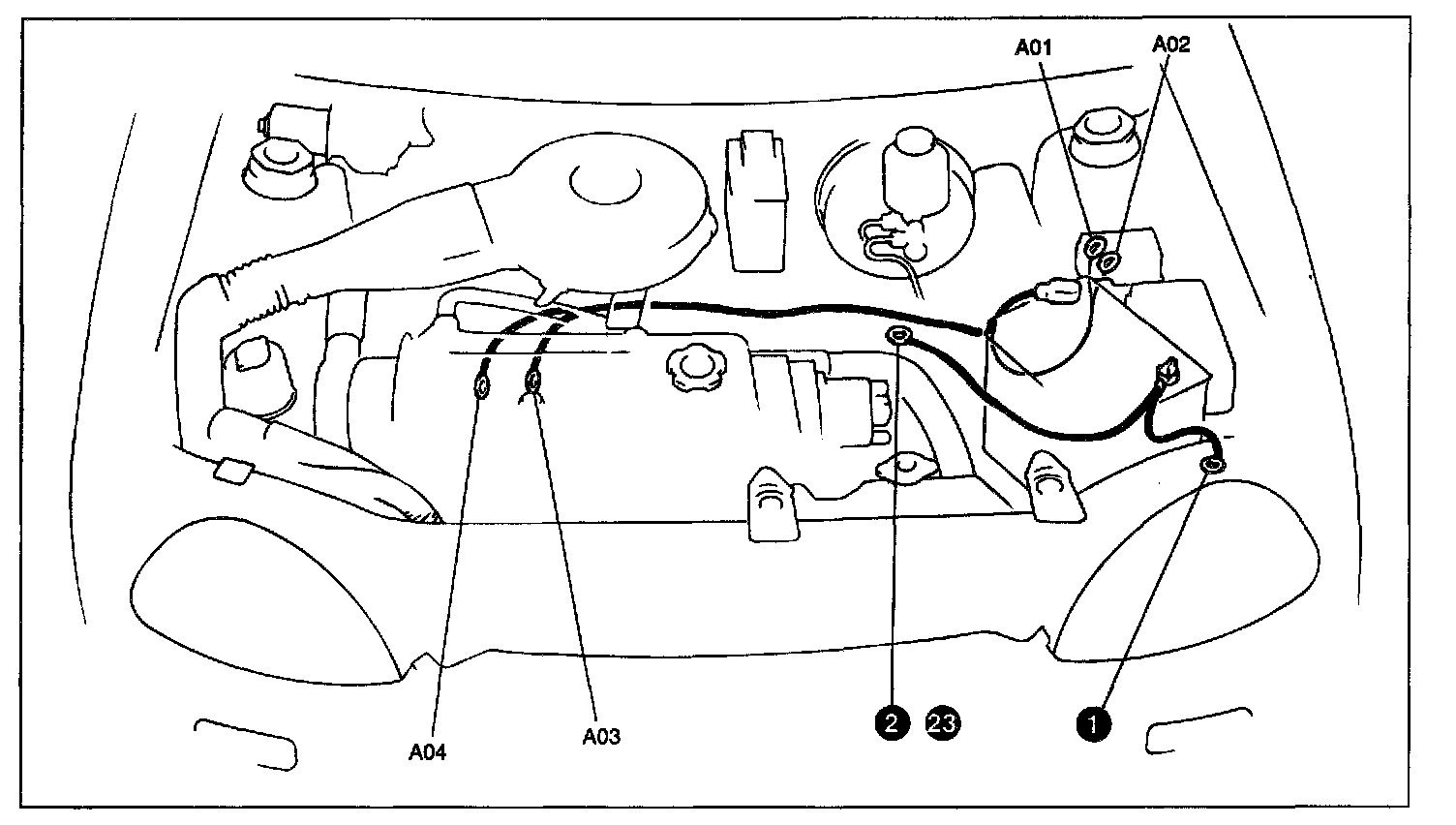

A: Battery:

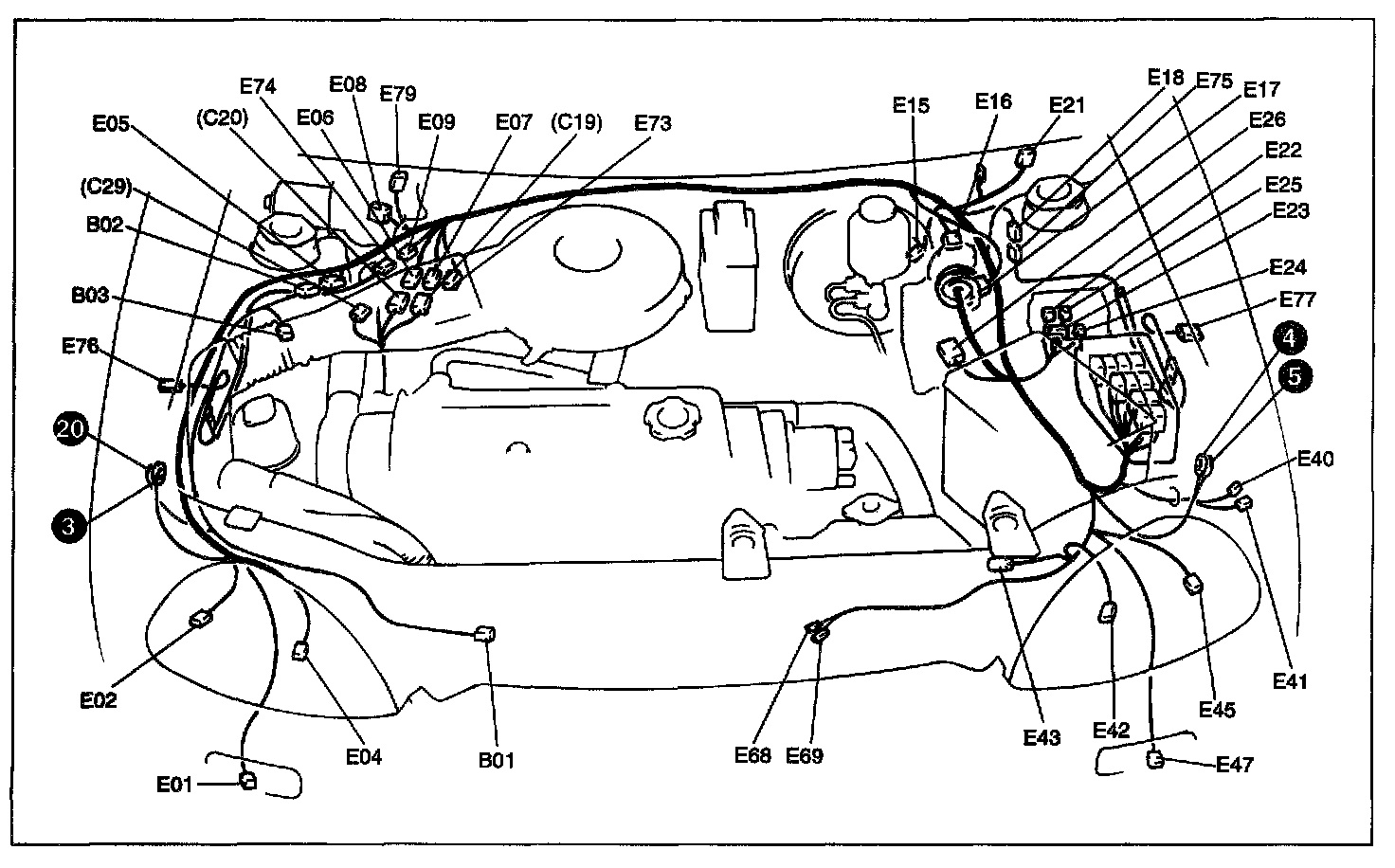

B: A/C Harness & E: Main Harness, Front Sensor Harness:

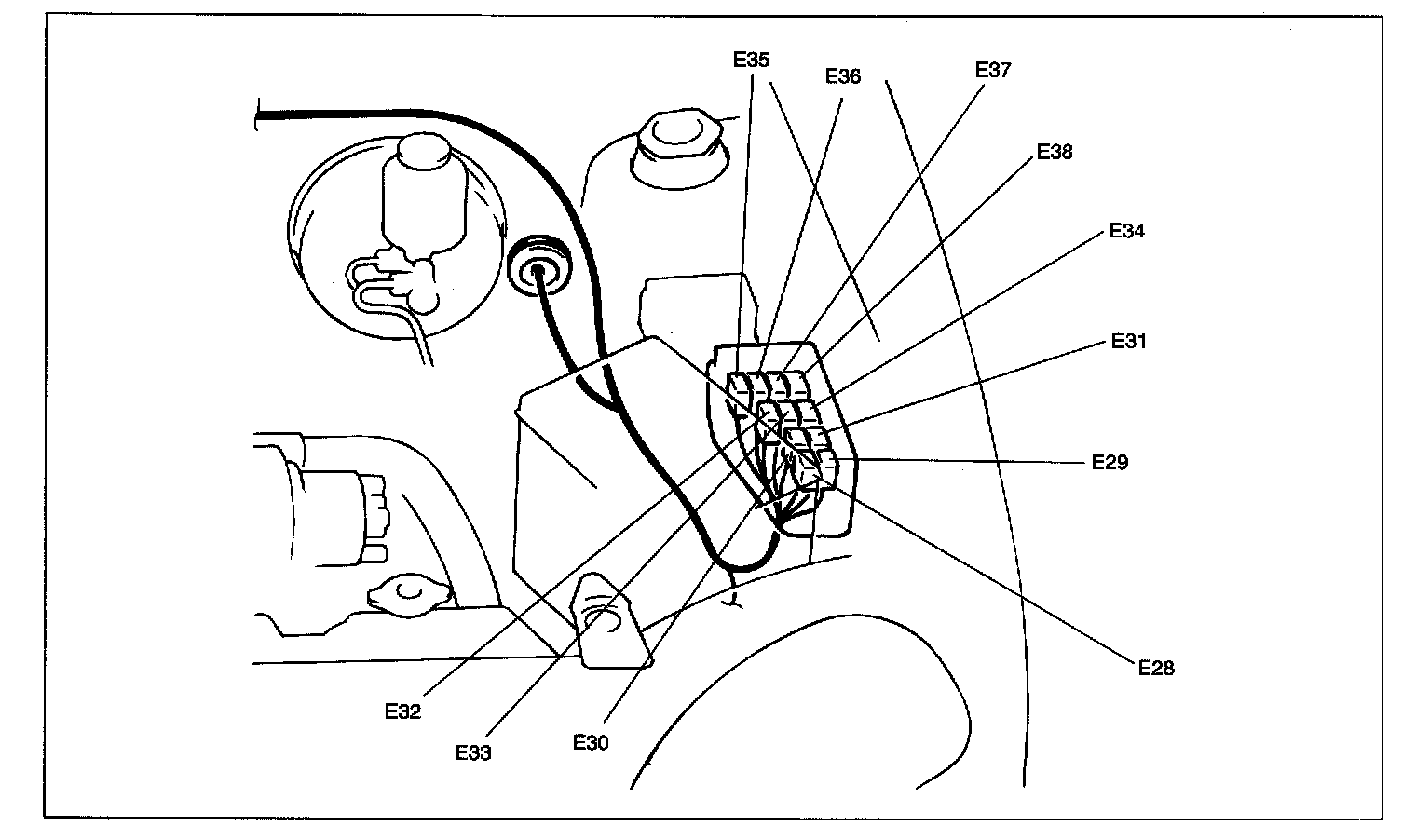

E: Main Harness (Relay Box):

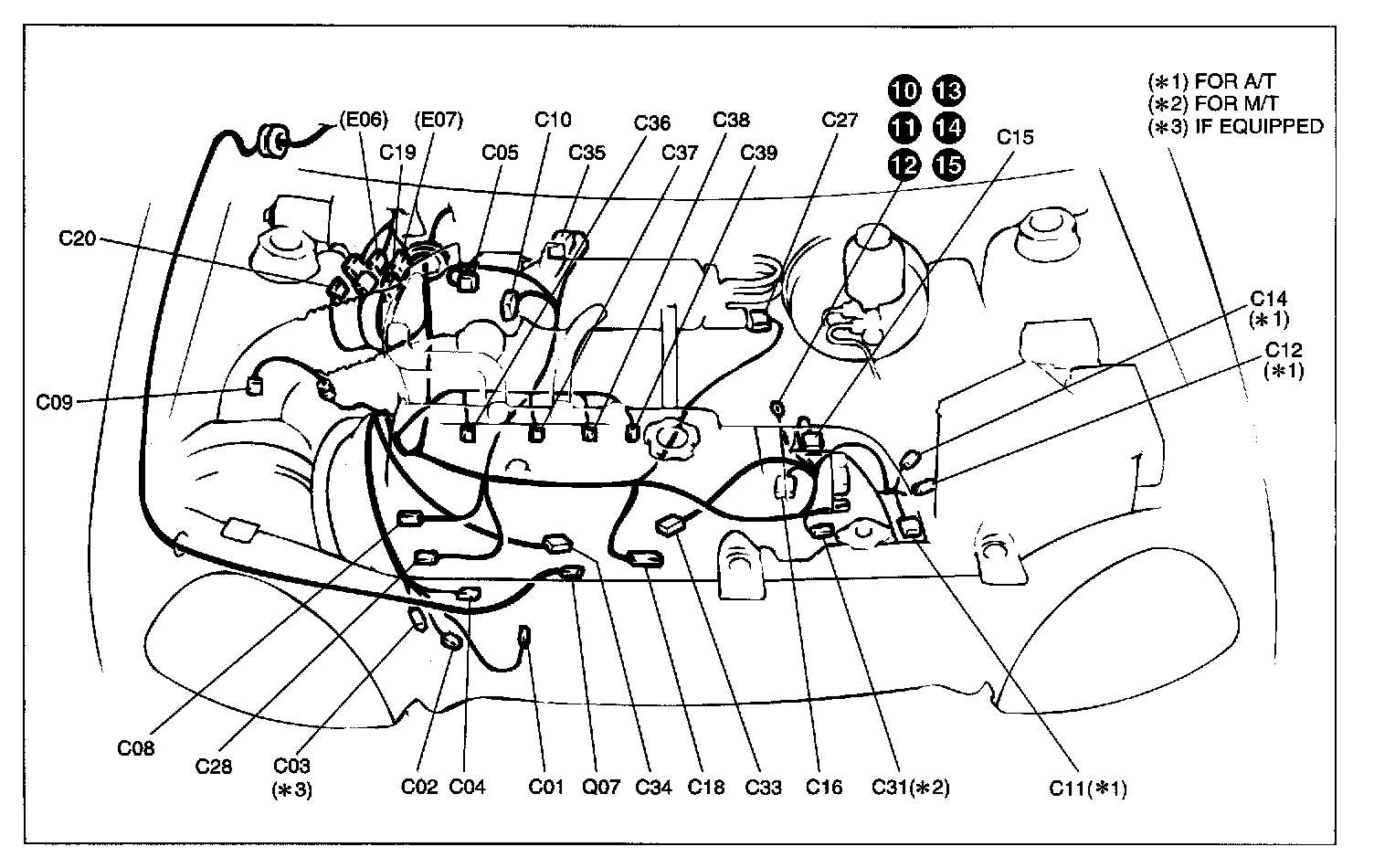

C: Engine Harness, Power Steering Wire & Q: Air Bag Harness:
