Manual Transmission/Transaxle

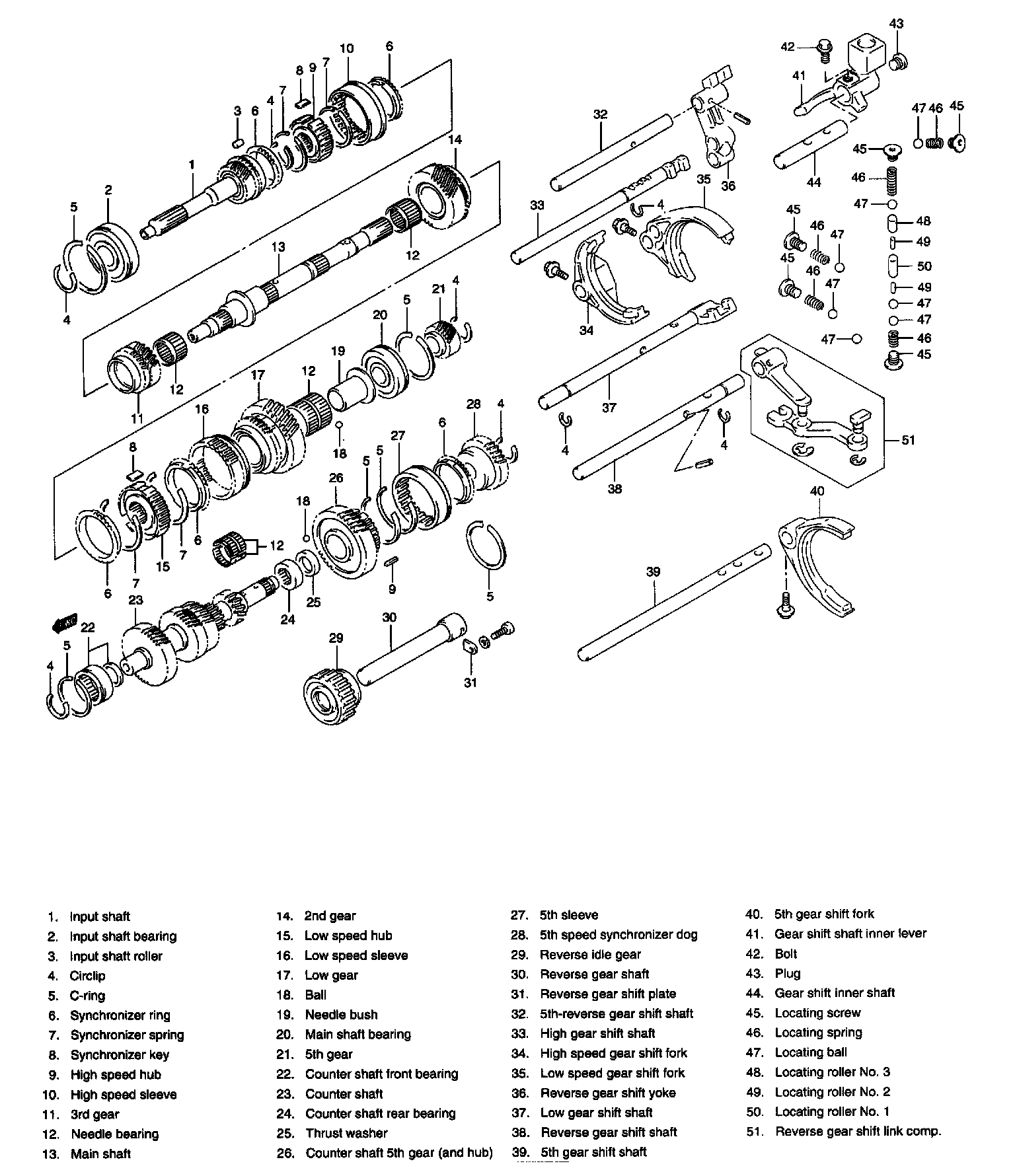

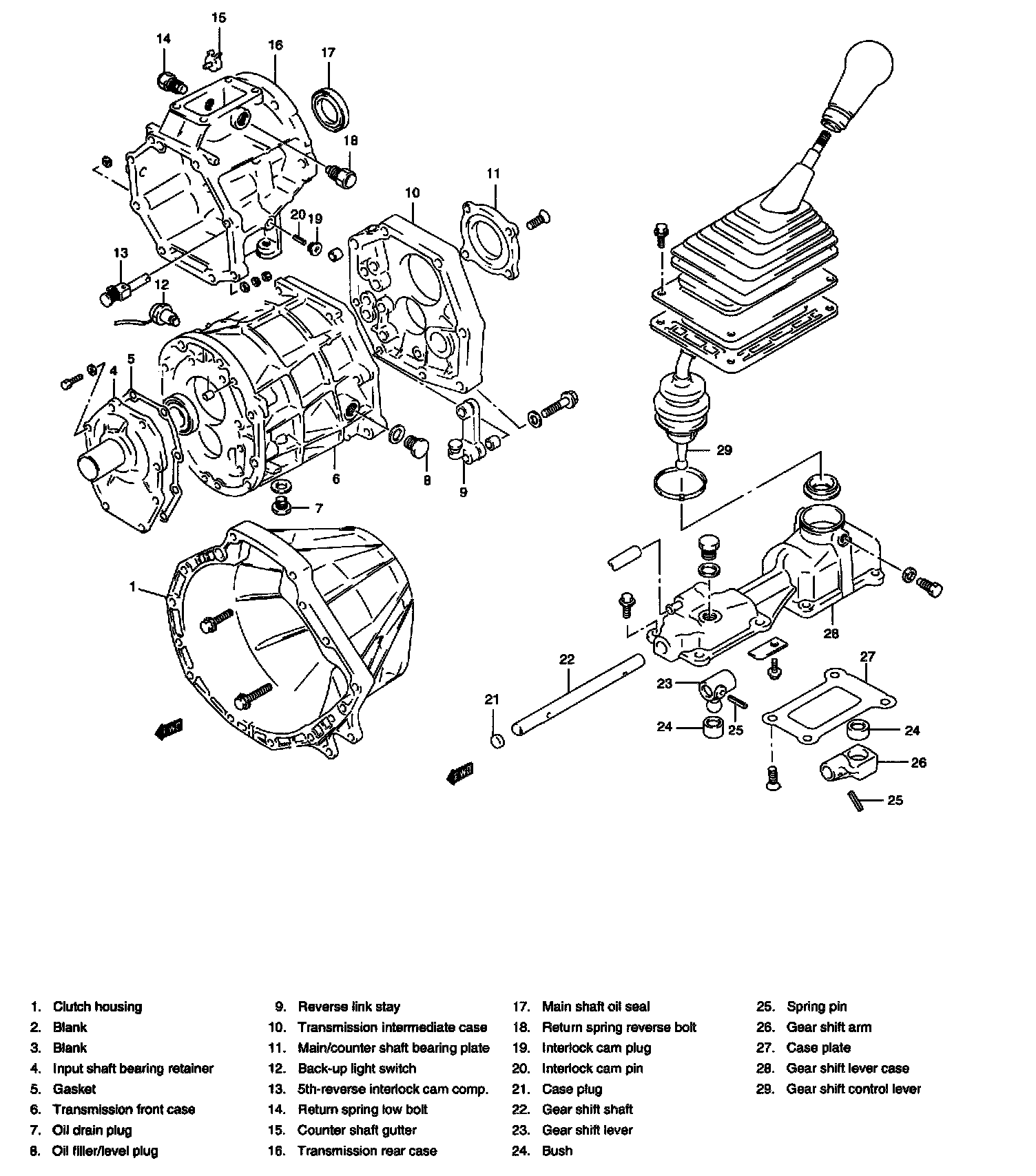

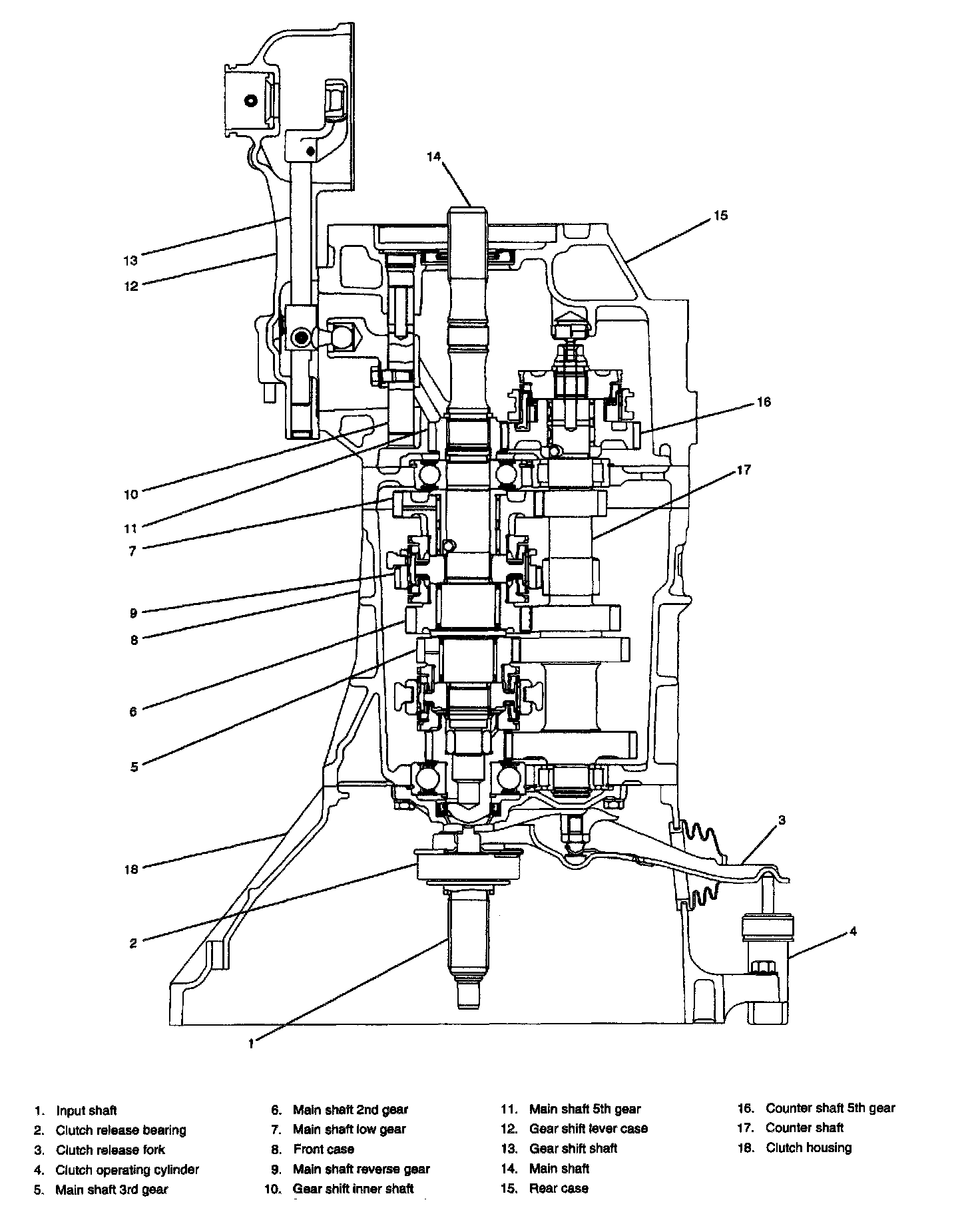

GENERAL DESCRIPTION COMPONENTS W/ RELATED COMPONENTS
Part 1 of 3
Part 2 of 3
Part 3 of 3
