Table B-4: "Power" Light Circuit Check
TABLE B-4: "POWER" LIGHT CIRCUIT CHECK ("POWER" LIGHT COMES ON STEADILY)WIRING DIAGRAM
Refer to "TABLE B-3". Table B-3: "Power" Light Circuit Check

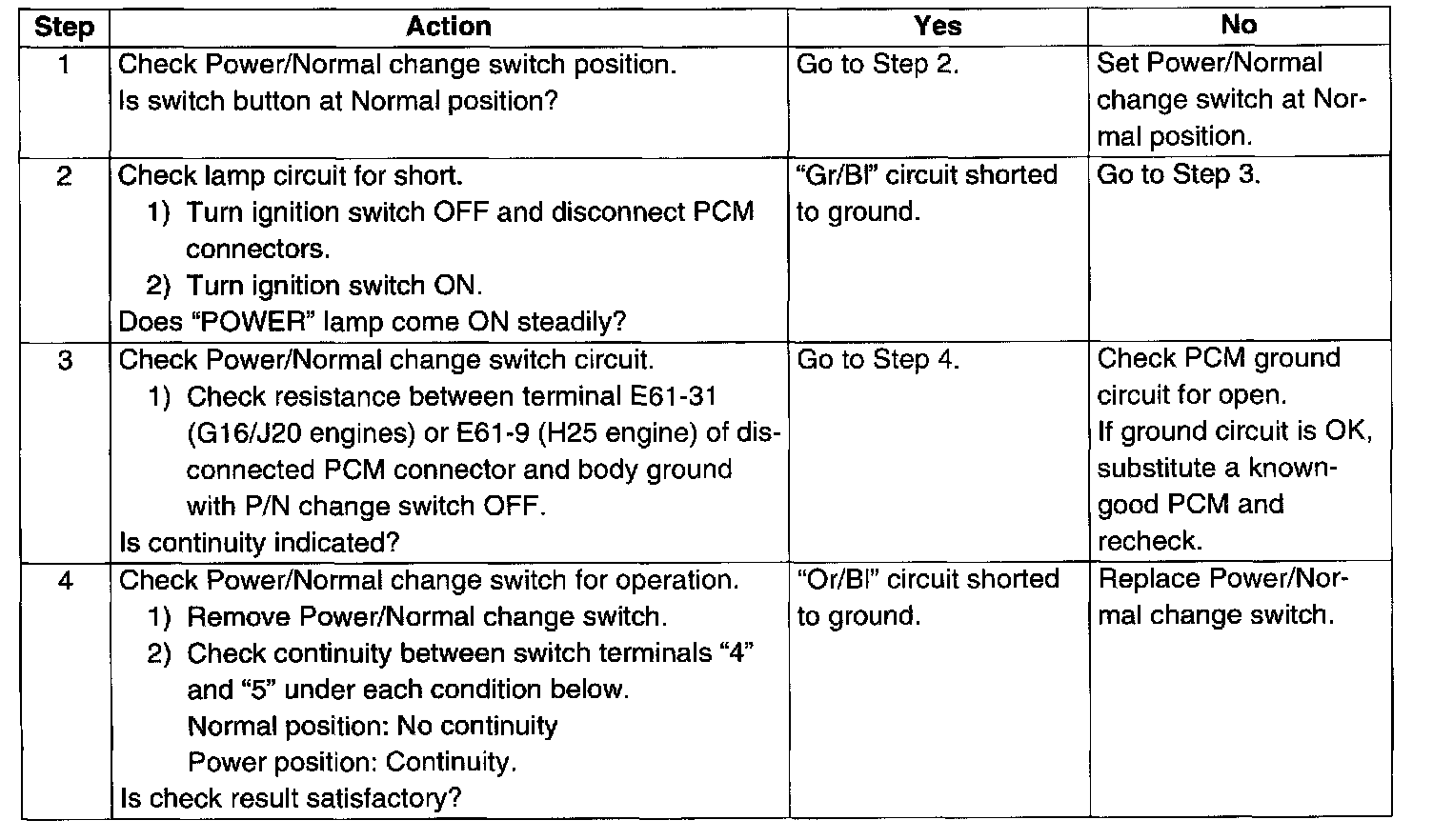

TROUBLESHOOTING
Fig. for Step 1
Fig. for Step 4
WIRING DIAGRAM
Refer to "TABLE B-3". Table B-3: "Power" Light Circuit Check
TROUBLESHOOTING
Fig. for Step 1
Fig. for Step 4
