Table 2

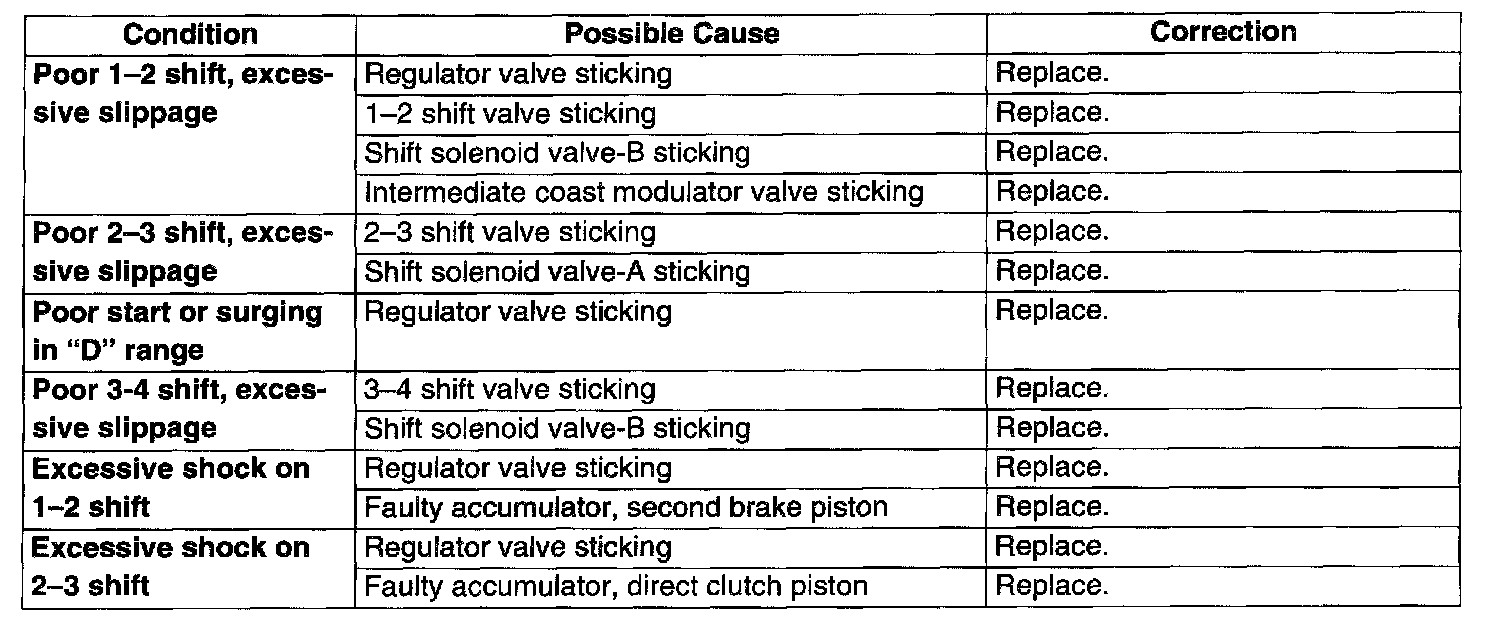

TROUBLE DIAGNOSIS TABLE 2





Transmission Fluid






Running Condition









Gear Shift
