B-2 Fuel Injector Circuit

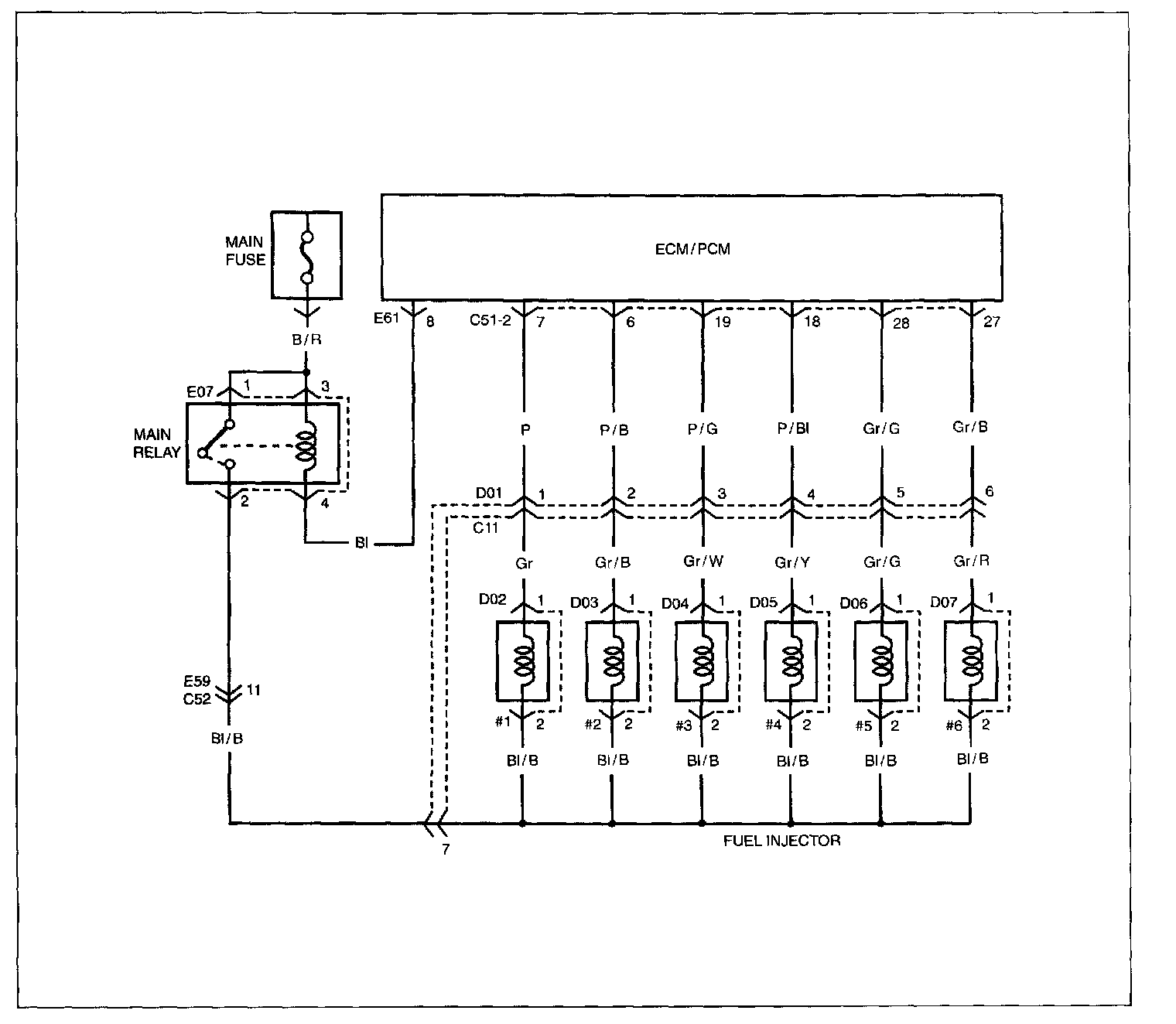

Wiring Diagram:
Terminal Arrangement Of ECM(PCM) Coupler(Viewed From Harness Side):

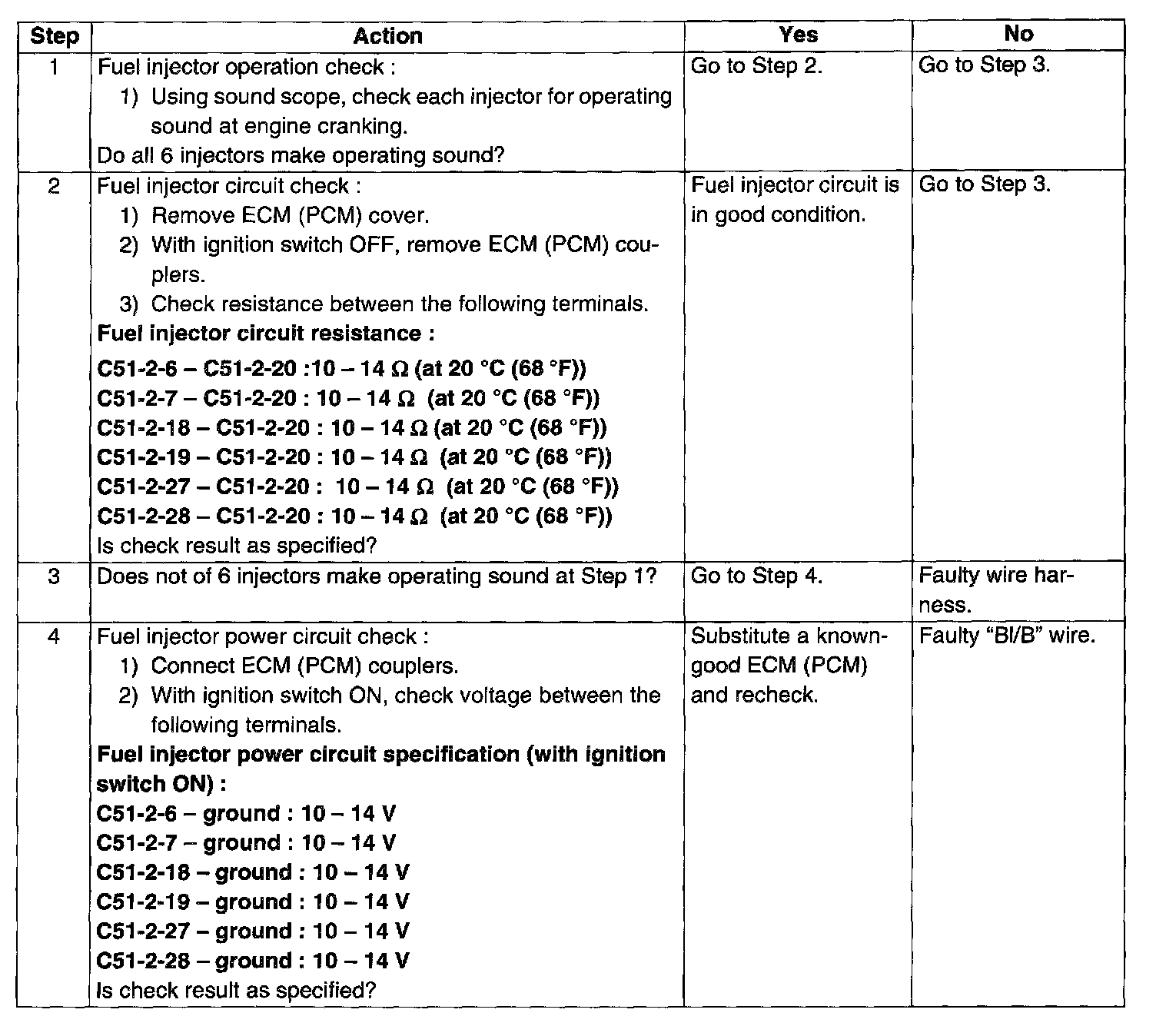

Step 1 - 4:
