A-3 MIL Does Not Light, Engine Does Not Start
Wiring Diagram:
Terminal Arrangement Of ECM(PCM) Coupler(Viewed From Harness Side):
CIRCUIT DESCRIPTION
When the ignition switch is turned ON, the main relay turns ON and the main power is supplied to ECM (PCM).

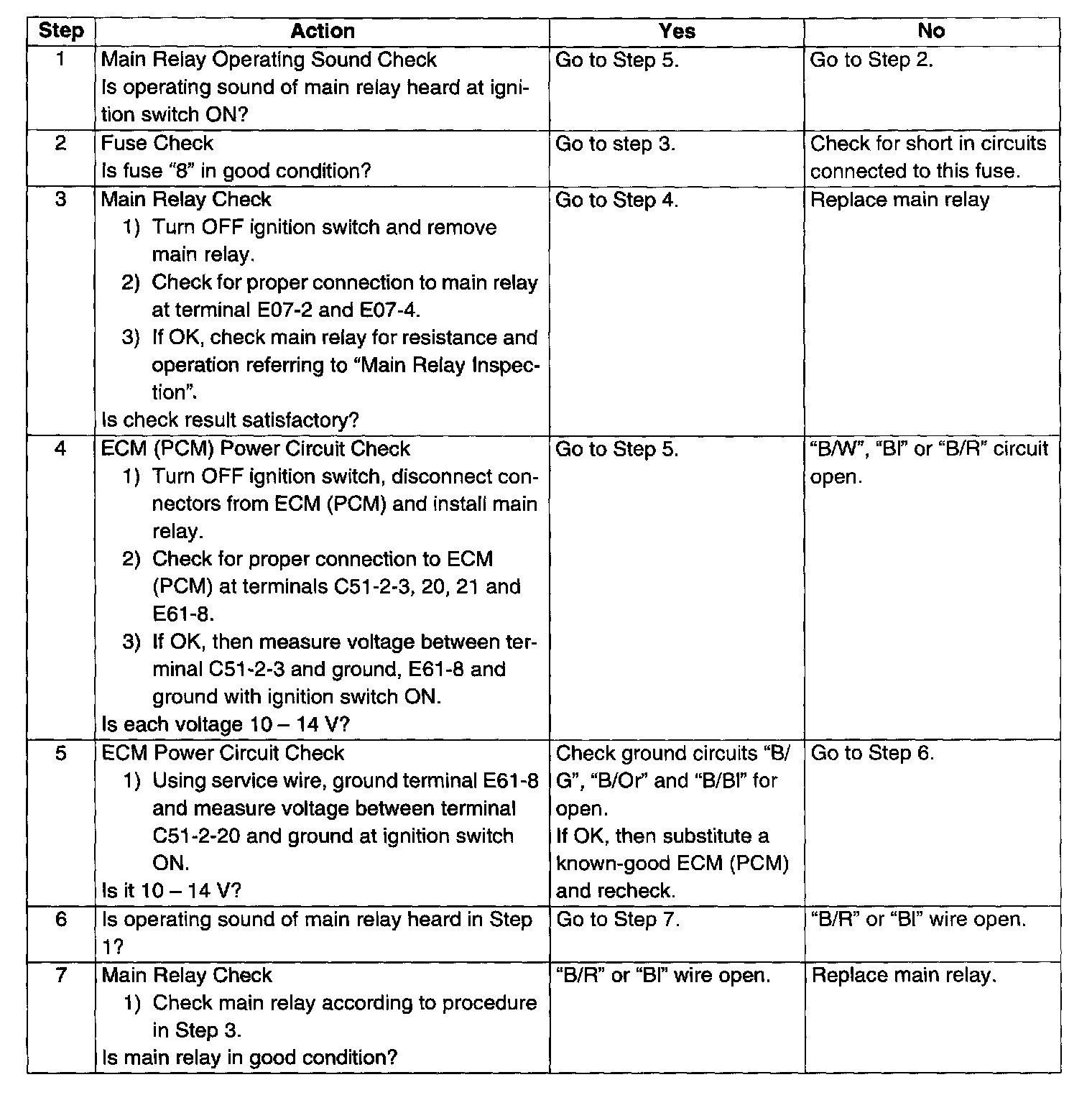

Step 1 - 7:
TROUBLESHOOTING
