Throttle Valve Opening Signal Circuit Check

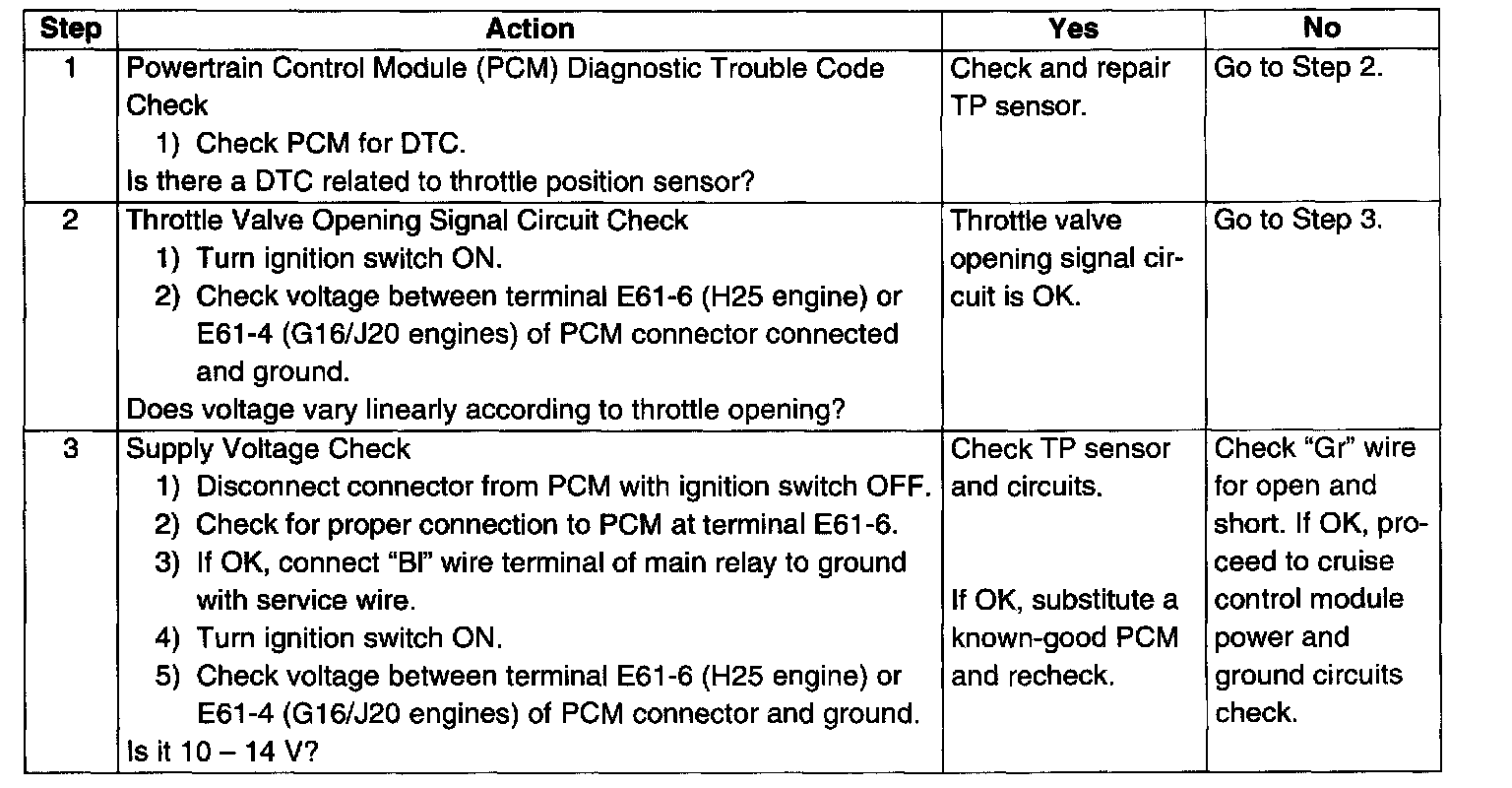

Throttle Valve Opening Signal Circuit Check (Step 1 - 3):



Throttle Valve Opening Signal Circuit Check (Fig. For Step 2):
