Table B-3: Cruise Control Signal Circuit Check, If Equipped

TABLE B-3 CRUISE CONTROL SIGNAL (O/D AND TCC OFF SIGNAL) CIRCUIT CHECK, IF EQUIPPED





WIRING DIAGRAM

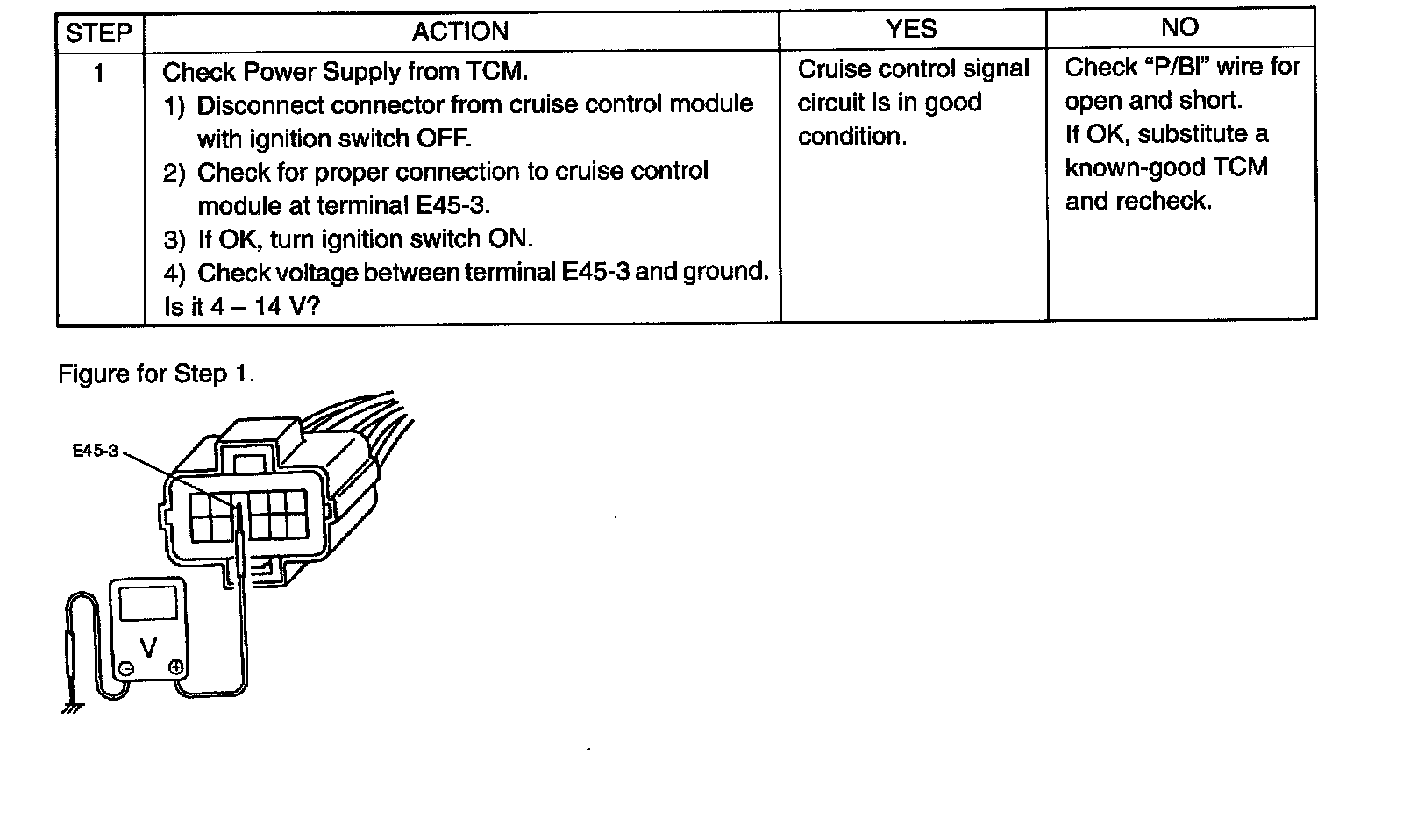

INSPECTION
