Seat Belt: Service and Repair

WARNING: Be sure to read SERVICE PRECAUTIONS before starting to work and observe every precaution during work.

FRONT SEAT BELT




REMOVAL

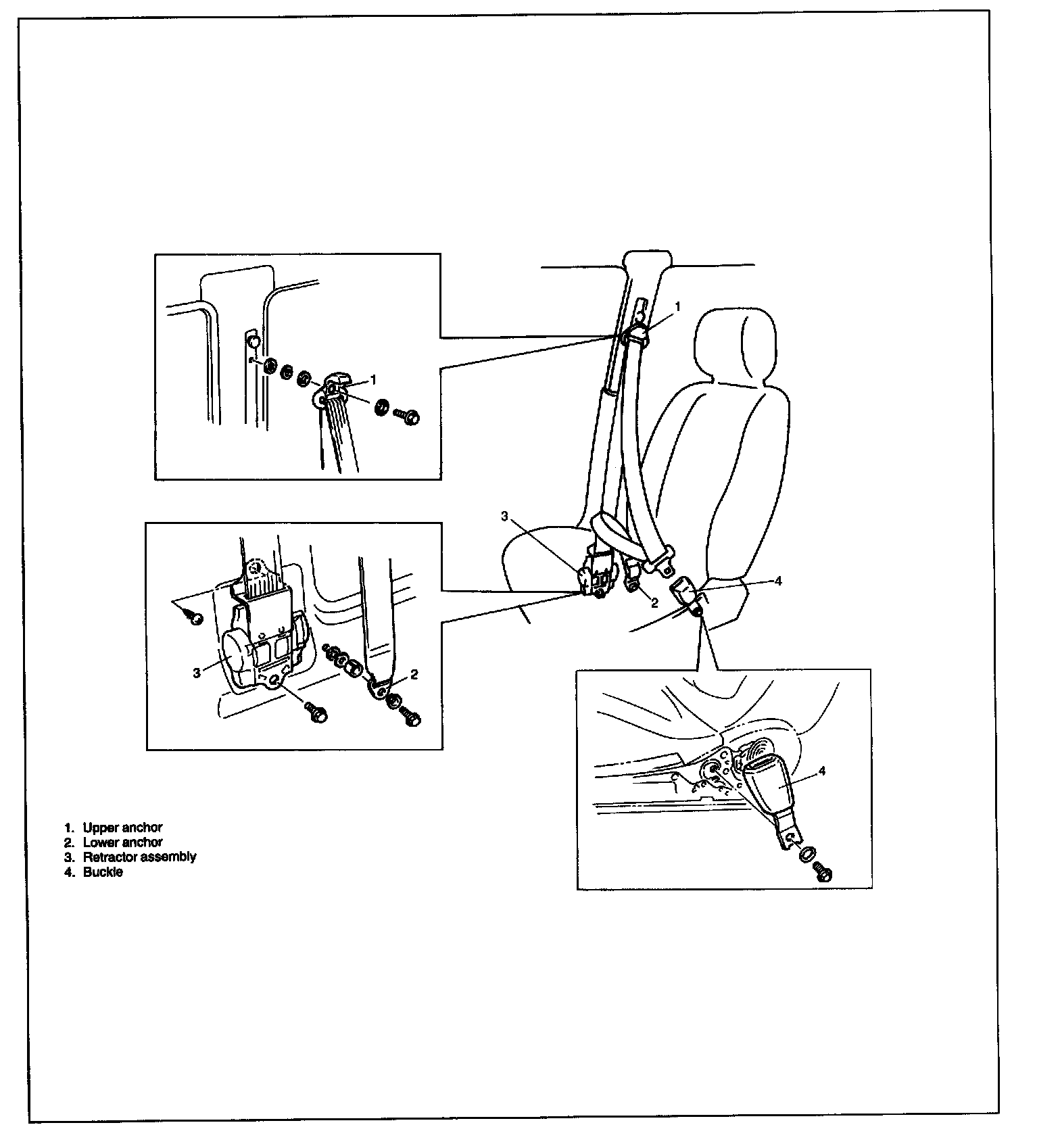

Refer to the figure to remove front seat belts.





INSTALLATION

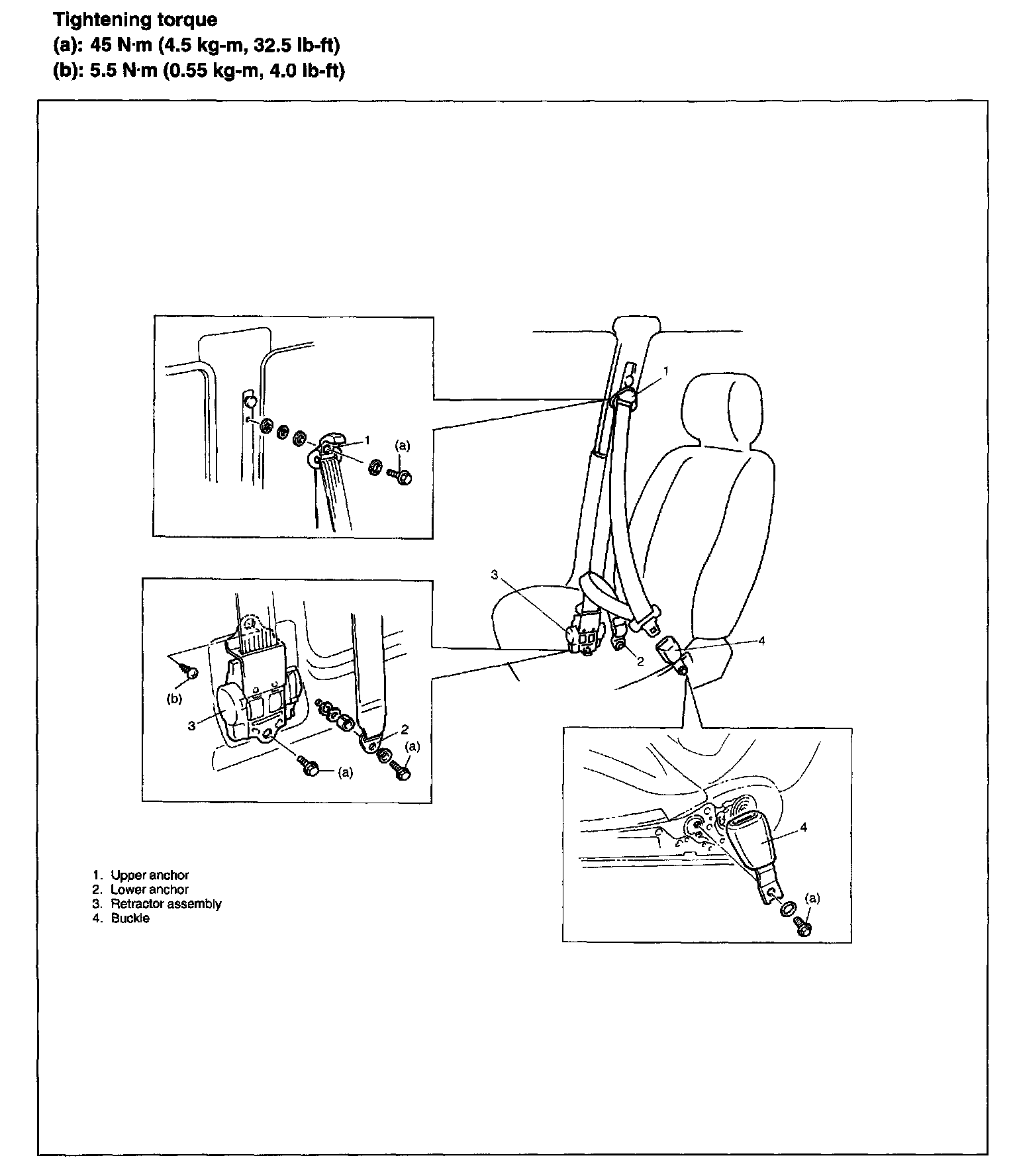

Install in reverse order of removal, noting the following.
- Seat belt anchor bolts should have an unified fine thread (7/16 - 20 UNF). Under no circumstances should any different sized or metric screw threads be used.
- Be sure to tighten seat belt anchor bolts to specified torque.

REAR SEAT BELT




REMOVAL

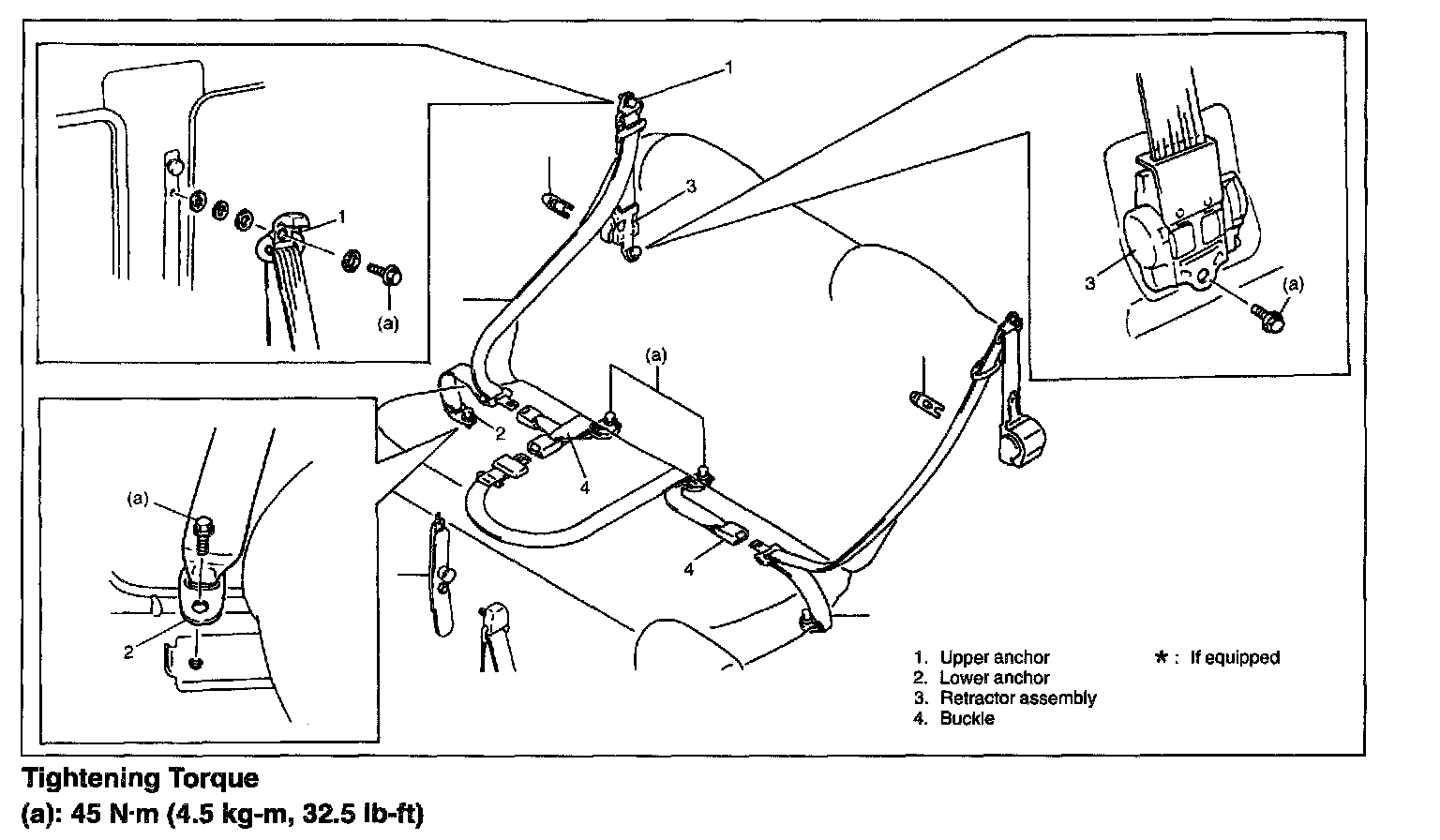

Refer to the figure to remove rear seat belts.

INSTALLATION
Install the rear seat belt observing the same precautions as when installing front seat belt.
