Fuel System

GENERAL DESCRIPTION

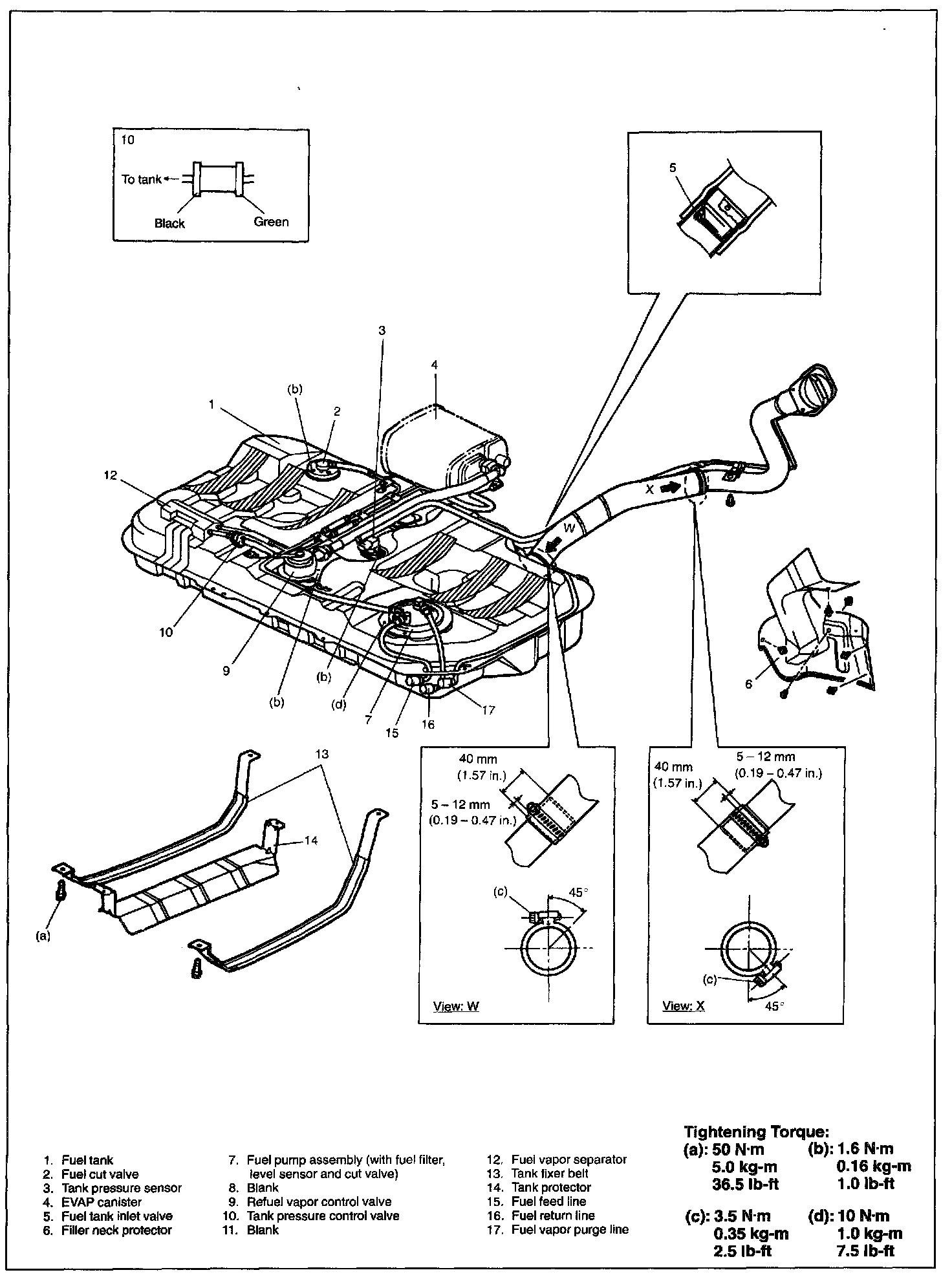

The main components of the fuel system are fuel tank, fuel pump assembly (with fuel filter, fuel level sensor and fuel cut valve), fuel feed line, fuel return line and fuel vapor line. For the details of fuel flow and fuel vapor flow, refer to ENGINE AND EMISSION CONTROL SYSTEM.
