B-8 Radiator Cooling Fan Control System Check
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
B-8 Radiator Cooling Fan Control System Check

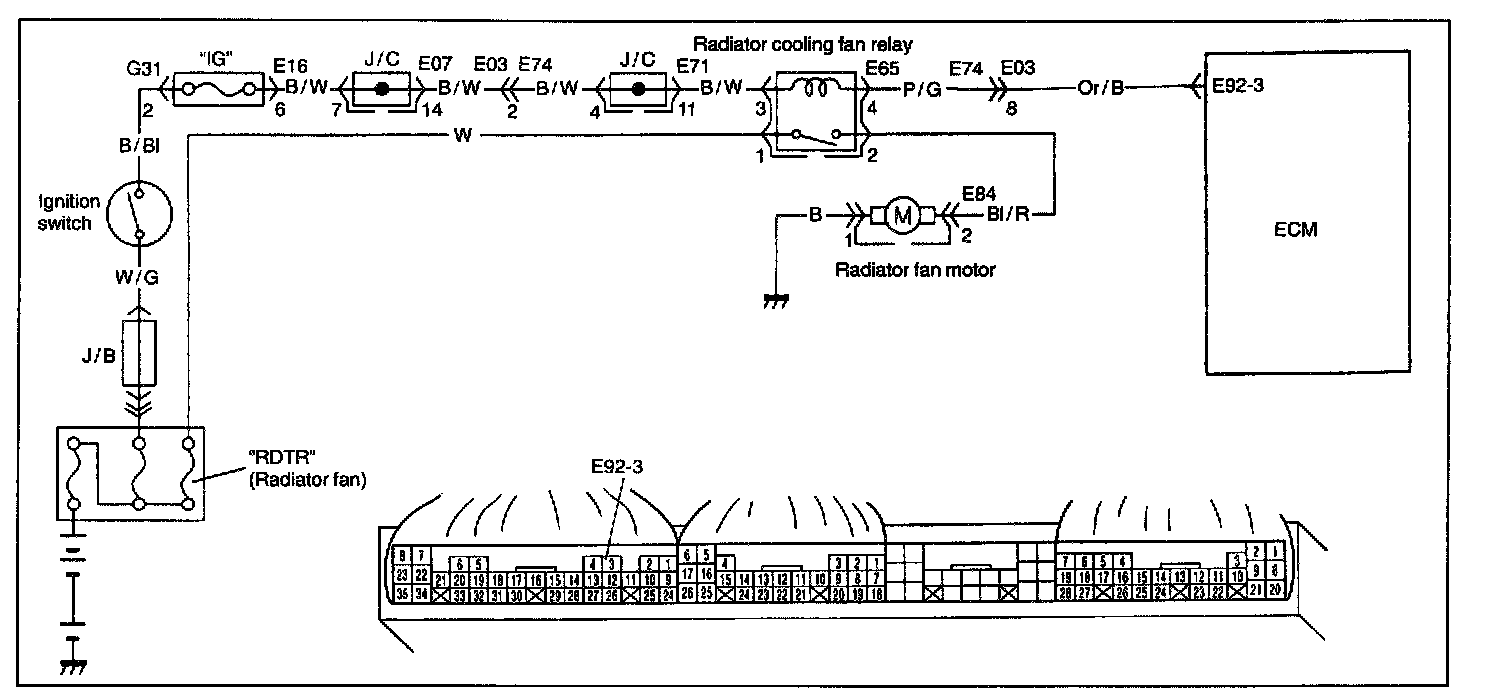

Wiring Diagram:

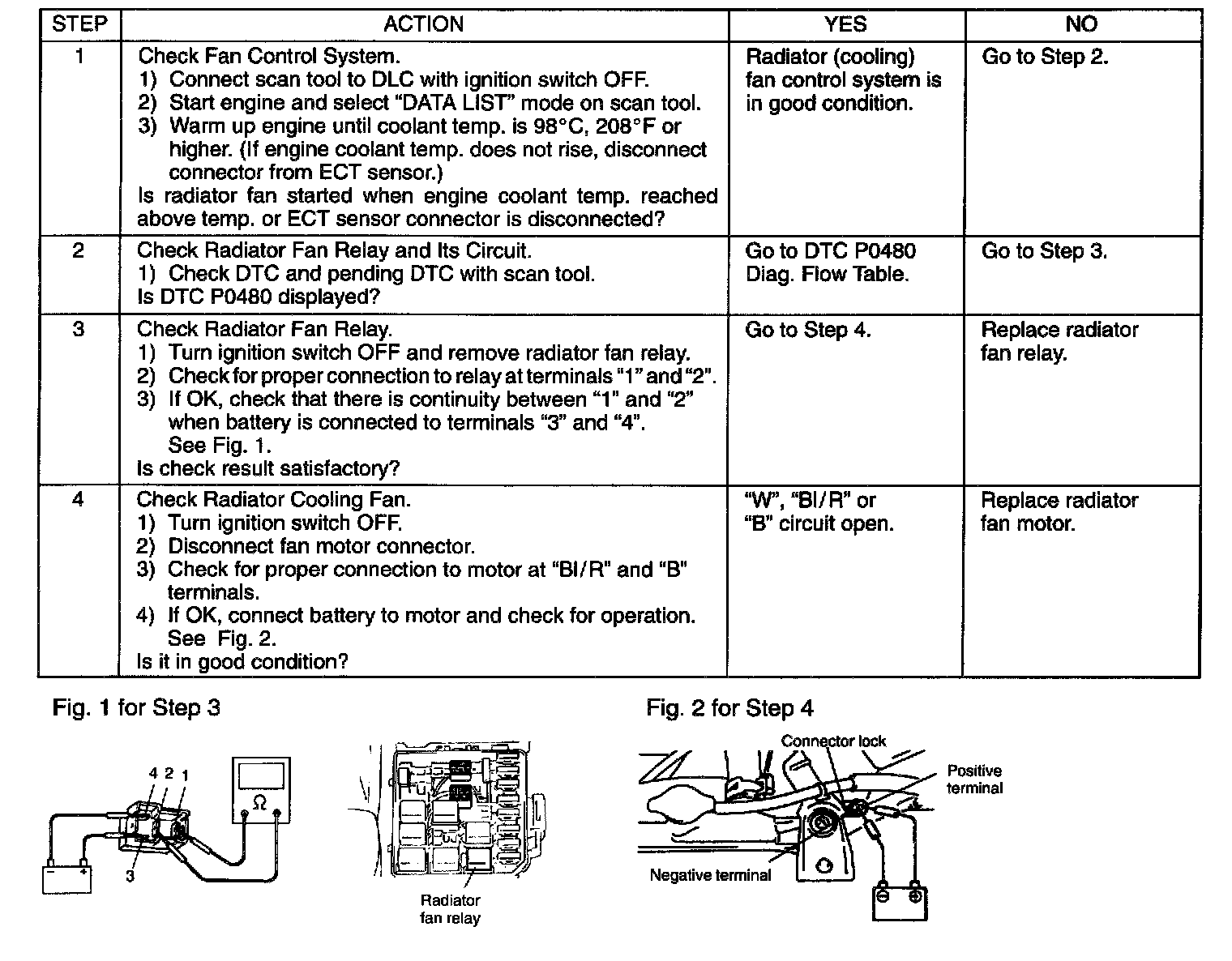

Step 1 - 4:
