Table B: Lamp Comes on Steady

CIRCUIT DESCRIPTION
Operation (ON/OFF) of the ABS warning lamp is controlled by the ABS control module and ABS lamp relay.
If the Antilock brake system is in good condition, the ABS control module turns the ABS warning lamp ON at the ignition switch ON, keeps it ON for 2 seconds only and then turns it OFF. If an abnormality in the system is detected, the lamp is turned ON by ABS control module. Also, it is turned ON by ABS warning lamp relay when the connector of the ABS control module was disconnected.





INSPECTION

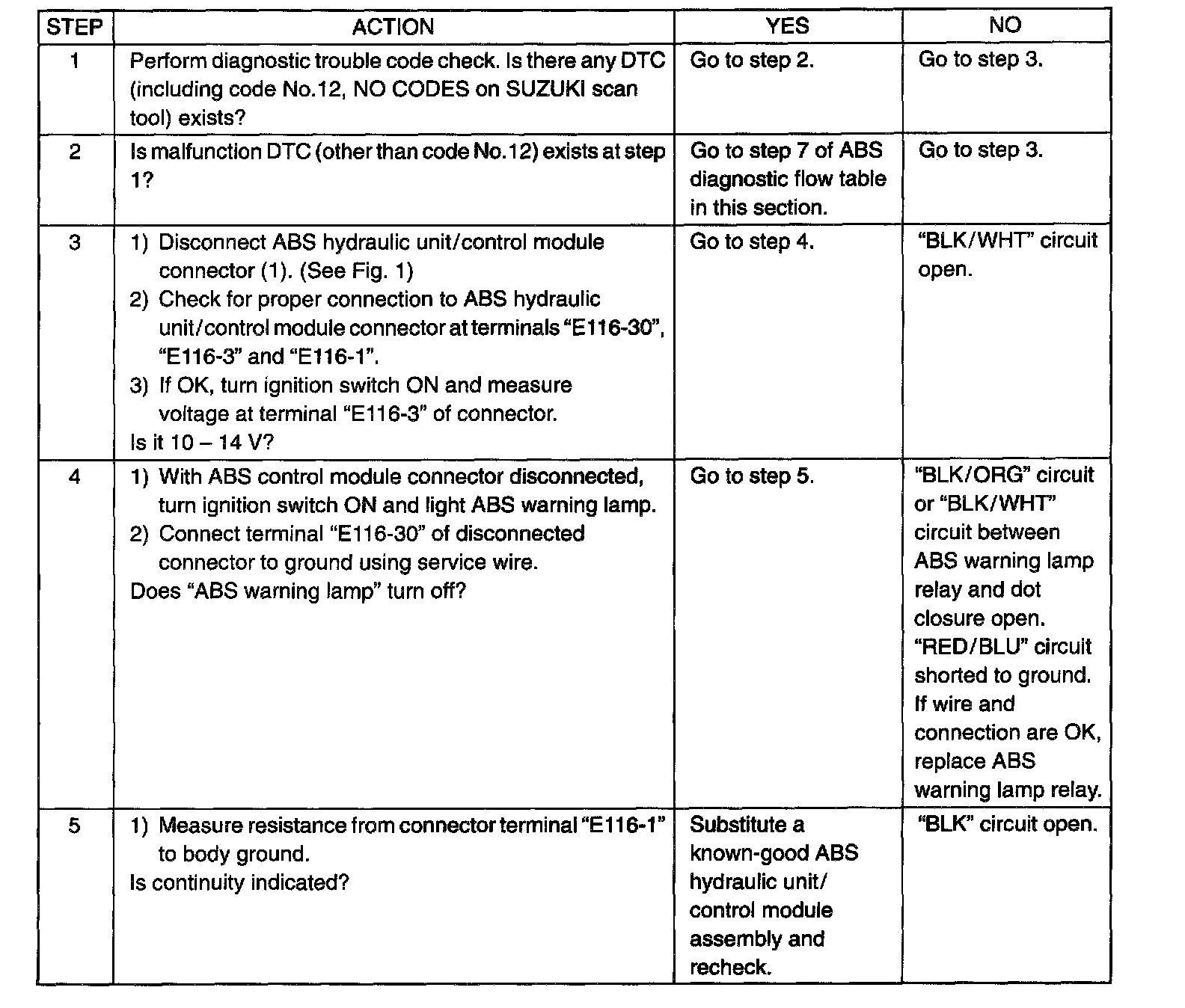

Fig.1
