Transmission Range Switch: Inspection

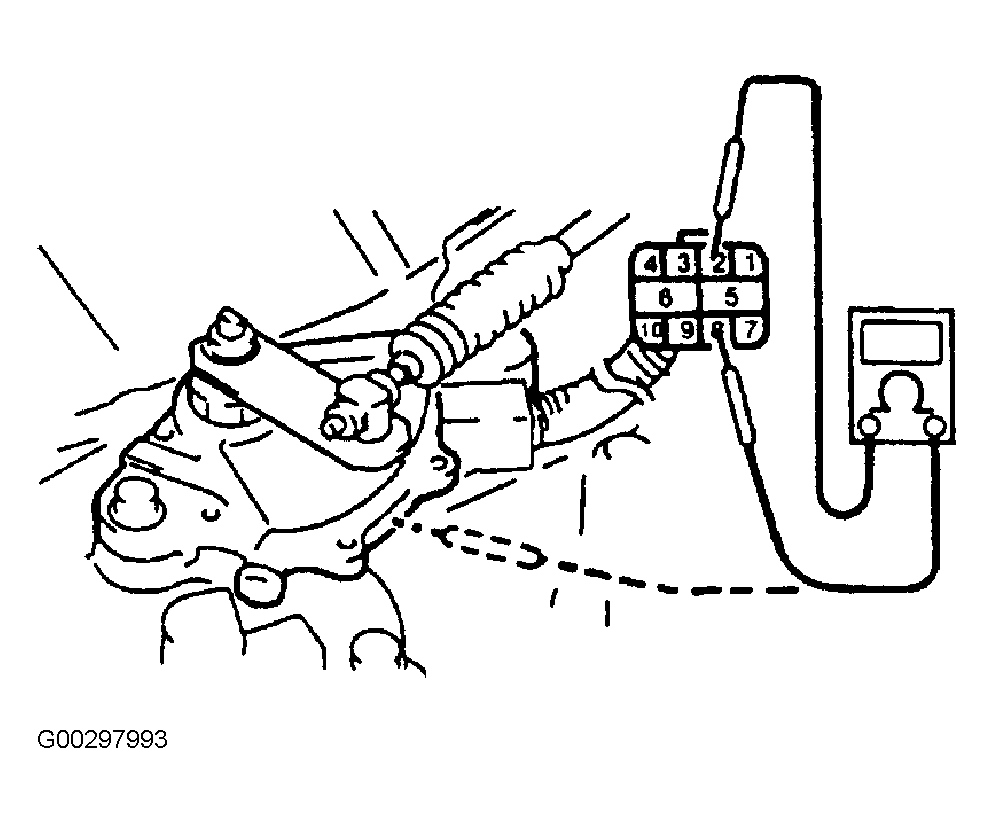

- Disconnect transmission range sensor at connector. See Fig 1

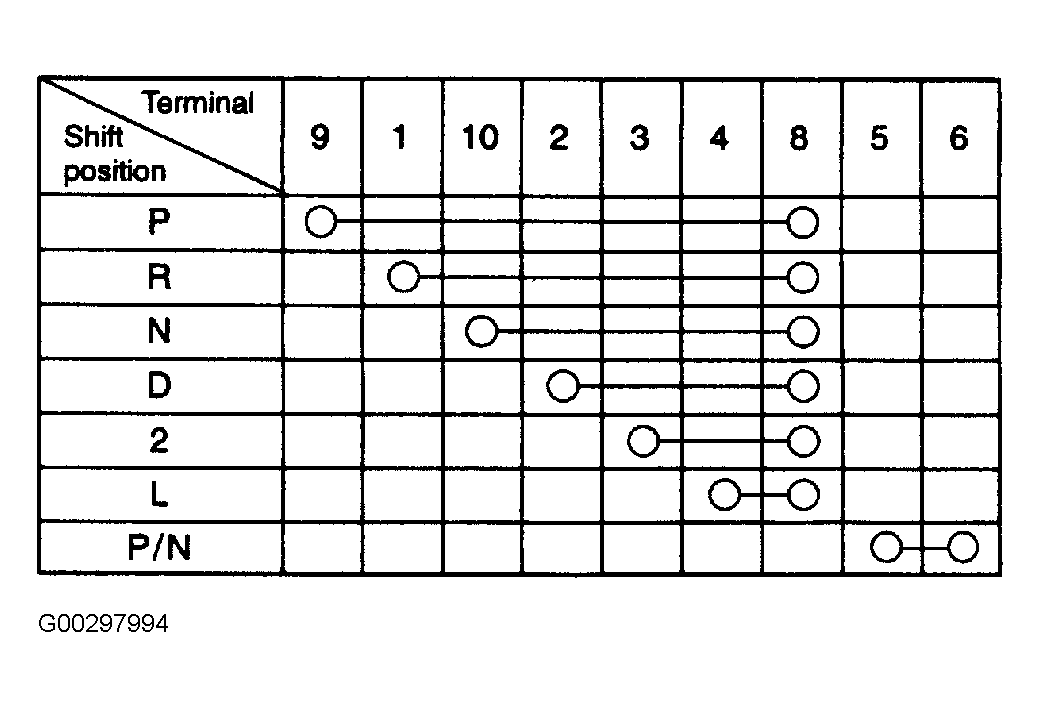

- At each of "P", "R", "N", "D", "2" and "L" shift position. Check continuity between terminals as well as each terminal and switch case. Continuity should be indicated only between those terminals as shown in the figure at each shift position. See Fig 2
. Continuity should not exist between any terminal and switch case. If malfunction is found, adjust.
