Select Cable
- Shift select lever to Neutral. See Figure .
- Loosen cable end nuts and shift manual shift lever "3" to "N". See Fig 1 .

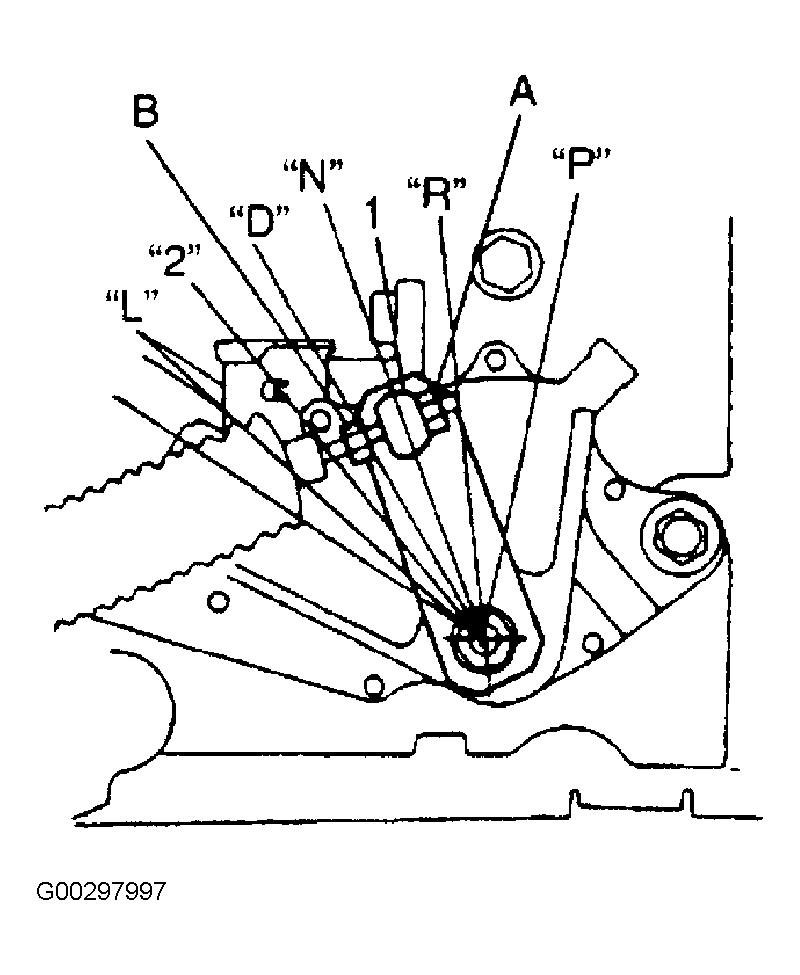

- Turn nut "A" by hand till it contacts manual select cable joint "1". Then tighten nut "B". See Fig 2 .
- After select cable is installed, check for the following:
- Push vehicle with selector lever shifted to "P".
- Vehicle should not move.
- Vehicle can not be driven in "N".
- Vehicle can be driven in "D", "2", and "L".
- Vehicle can be backed in "R".
NOTE:

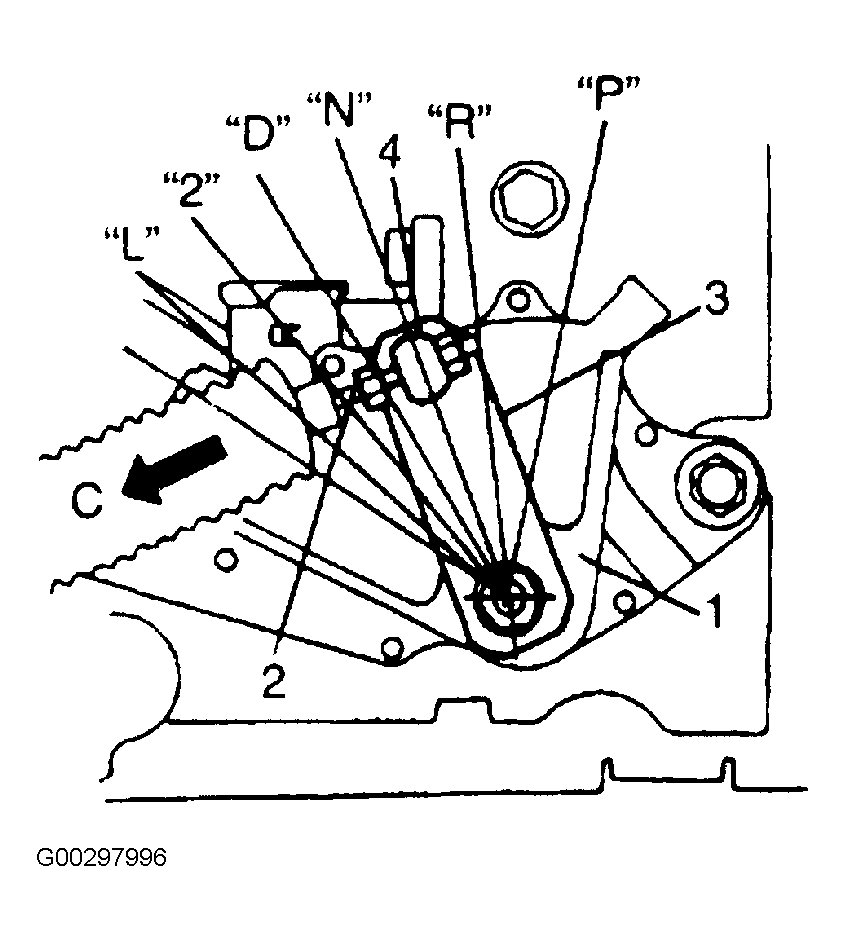

Ensure that nut and cable joint "4" have clearance. If select cable "2" has been moved, push it in arrow "C" direction as shown in figure at the left until it stops and then confirm that select lever is in "N" position.
