Clutch Master Cylinder: Reassembly

Clean all parts that are to be reused. Inspect for wear or damage. Coat piston and NEW cylinder cups with brake fluid. To complete assembly, reverse disassembly procedure.

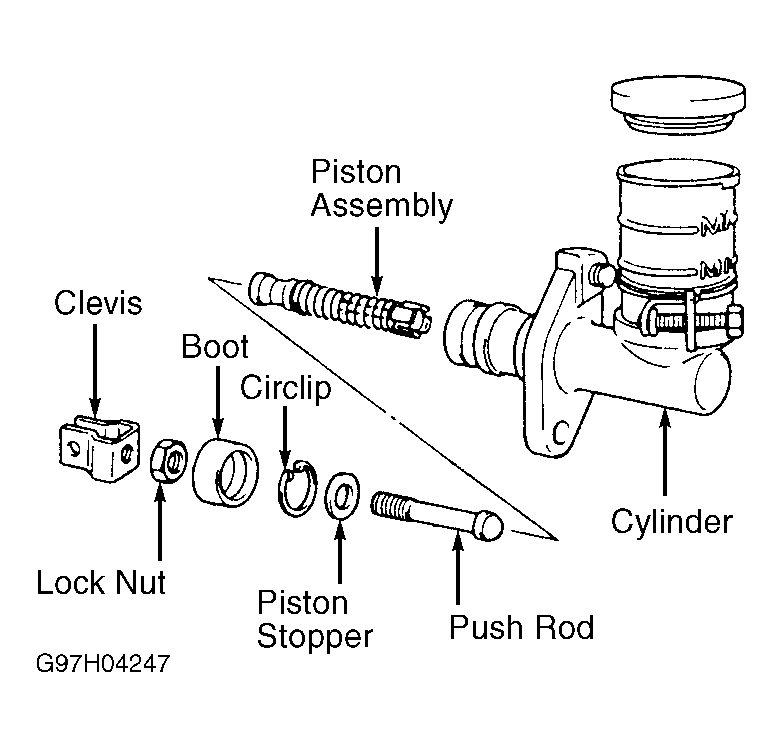

Fig 1: Exploded View Of Clutch Master Cylinder Assembly (Typical)

Courtesy of SUZUKI OF AMERICA CORP.
