Component Locations

Refer to illustration for restraint system component locations. See Fig 1.

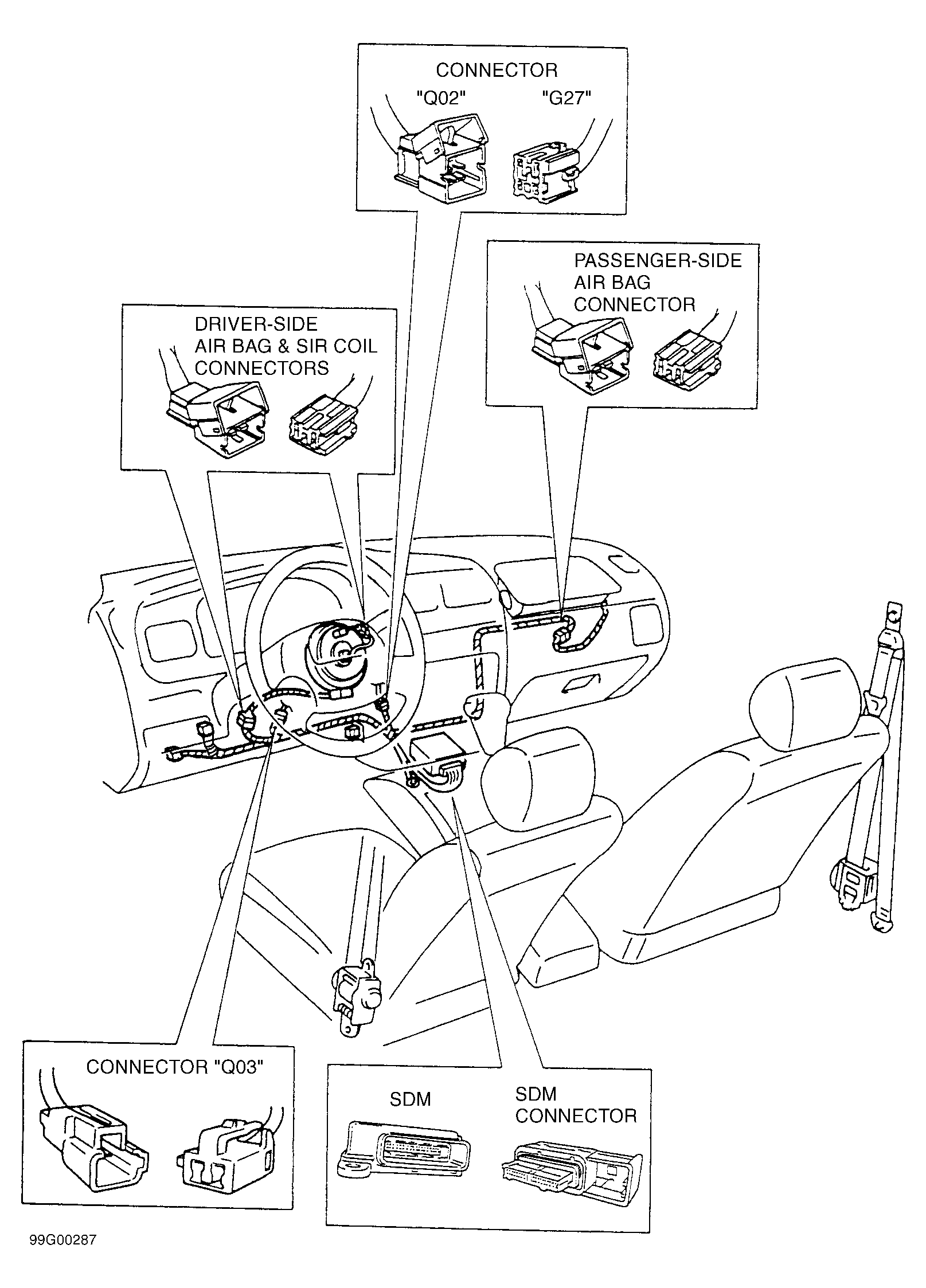

Fig 1: Locating SIR System Components & Connectors
G99G00287Courtesy of SUZUKI
