Exhaust System Noise (TS 17 03296)
WARNING: This page is about the Vitara JLS, 4D Utility, 1.6, which is a different variant/trim than selected.
Publication date: 2006-03-29Reference number: TS 17 03296
EXHAUST SYSTEM NOISE
TECHNICAL SERVICE BULLETIN
Reference Number(s): TS 17 03296, Date of Issue:
March 29, 2006
| SUZUKI: | 1999~2004 Grand Vitara (SQ625W) and Grand Vitara XL-7 (JA627) |
| SECTION: | Engine |
CONDITION
Exhaust noise can be heard from under the vehicle.
CAUSE
The exhaust pipe seal ring may have corroded due to exposure to road salt or other winter weather elements during driving.
CORRECTION

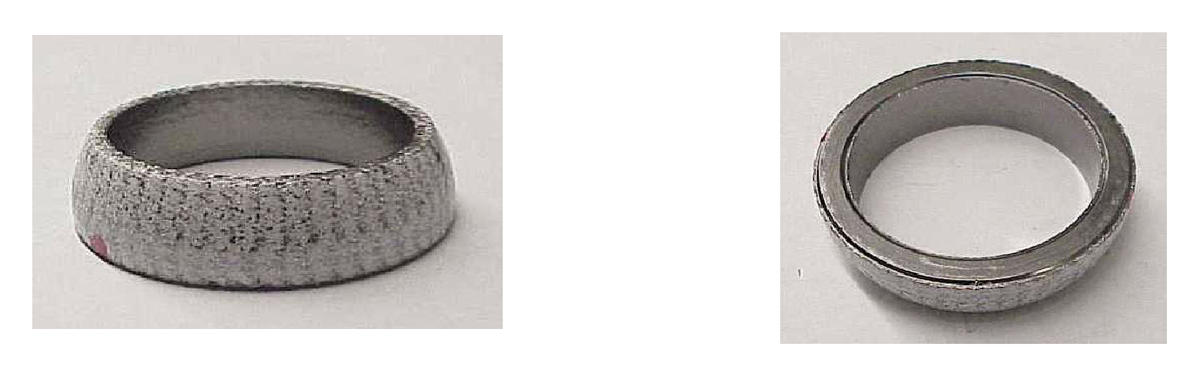

Replace the muffler seal ring part numbers 14183-58B02 or 14183-65D00 with part number 14183-65D10.
PART(S) INFORMATION
PART(S) INFORMATION
| Part Numbers | Description | QTY | Notes |
|---|---|---|---|
| 14183-65D10 | Muffler Seal Ring | 1 | This seal ring replaces part number 14183-58B02 and 14183-65D00 for all listed models. Part location varies by model. Refer to parts catalog for correct part location. |
WARRANTY CLAIM INFORMATION
WARRANTY CLAIM INFORMATION
| Labor Operation | Description | Failed Part Number | Complaint Code | Defect Code | Labor Time |
|---|---|---|---|---|---|
| DA19R0 | Muffler Seal Ring | 14183-65D10 | 84 | 41 | 0.6 Hrs, |
