Cylinder Head: Disassembly

  1. Remove cylinder head. See CYLINDER HEAD  under REMOVAL & INSTALLATION. Remove intake and exhaust manifolds. Remove camshaft and lash adjusters. See CAMSHAFT & VALVE LASH ADJUSTER  under REMOVAL & INSTALLATION.
  2. Using Valve Spring Compressor (09916-14510) and Adapters (09916-14910 & 0999-28610), compress valve spring. Using Valve Spring Retainer Remover (09916-84511) remove retainer locks. See Fig 1. Remove retainers, springs, valve stem oil seals, spring seats and valves. Keep all components in order for reassembly reference.

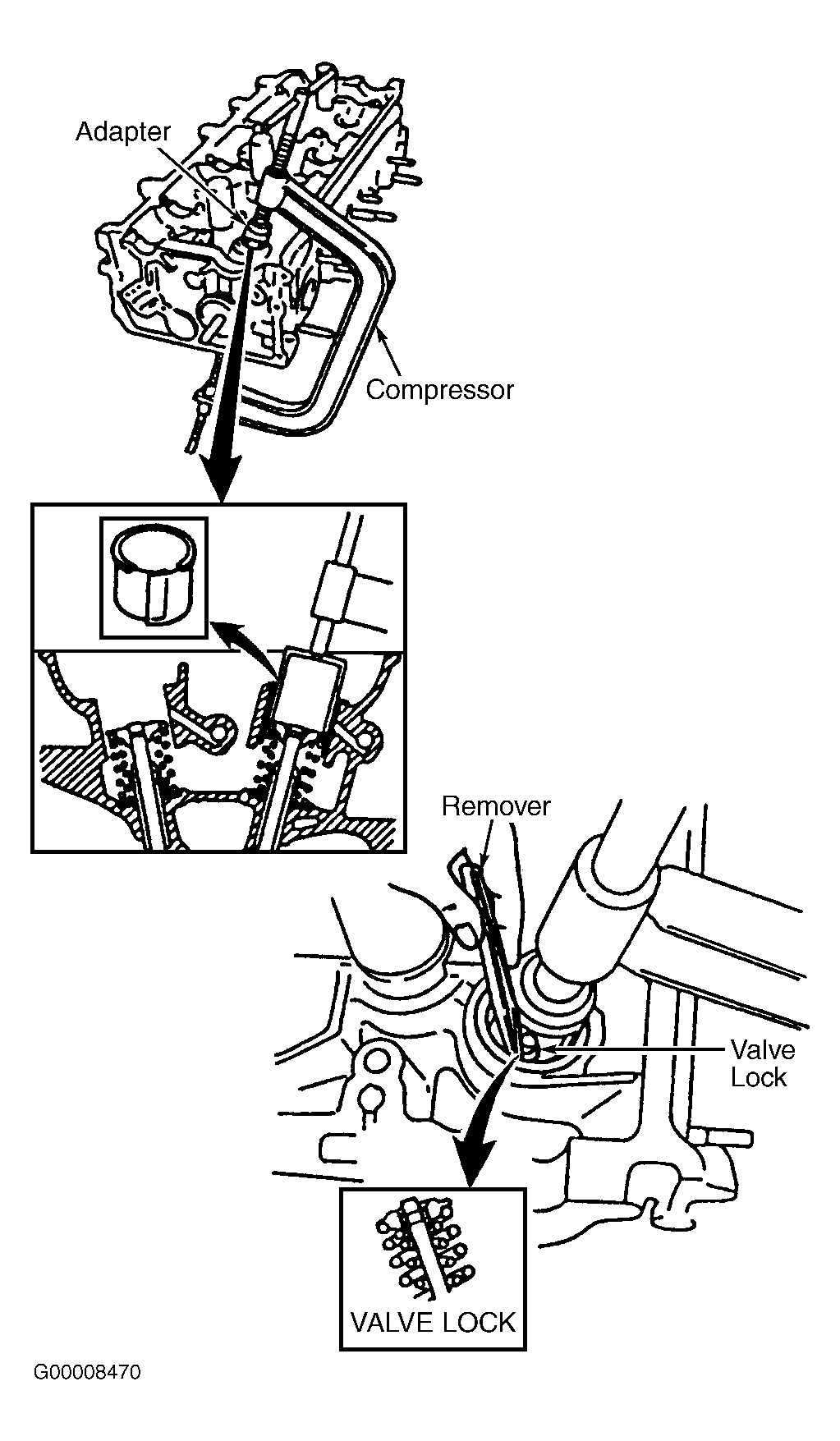

    Fig 1: Removing Valve Locks
    G00008470Courtesy of SUZUKI OF AMERICA CORP.
