Fuse Box

The fuse box is located under the driver's side of the dashboard. See Fig 1. Remove the fuse box cover (if equipped) by pushing in at both ends and pulling off the cover.

For relay identification, refer to illustrations. See Fig 2, Fig 3, Fig 4, Fig 5 or Fig 6 .

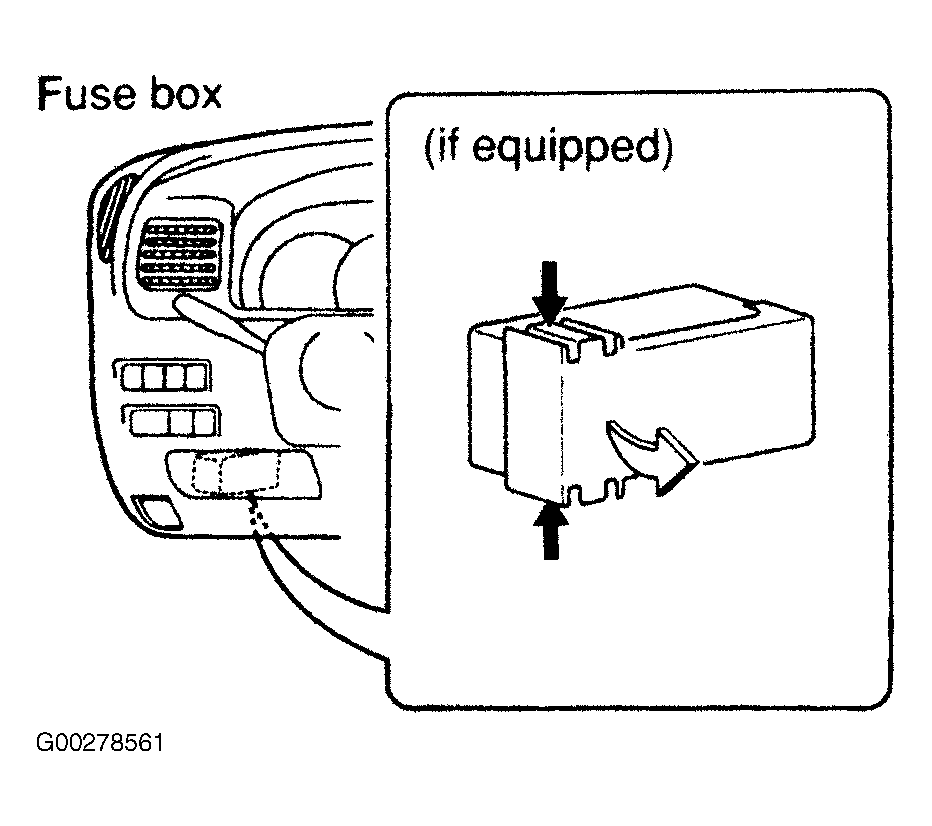

Fig 1: Locating Under Dash Fuse/Relay Box

Courtesy of SUZUKI OF AMERICA CORP.

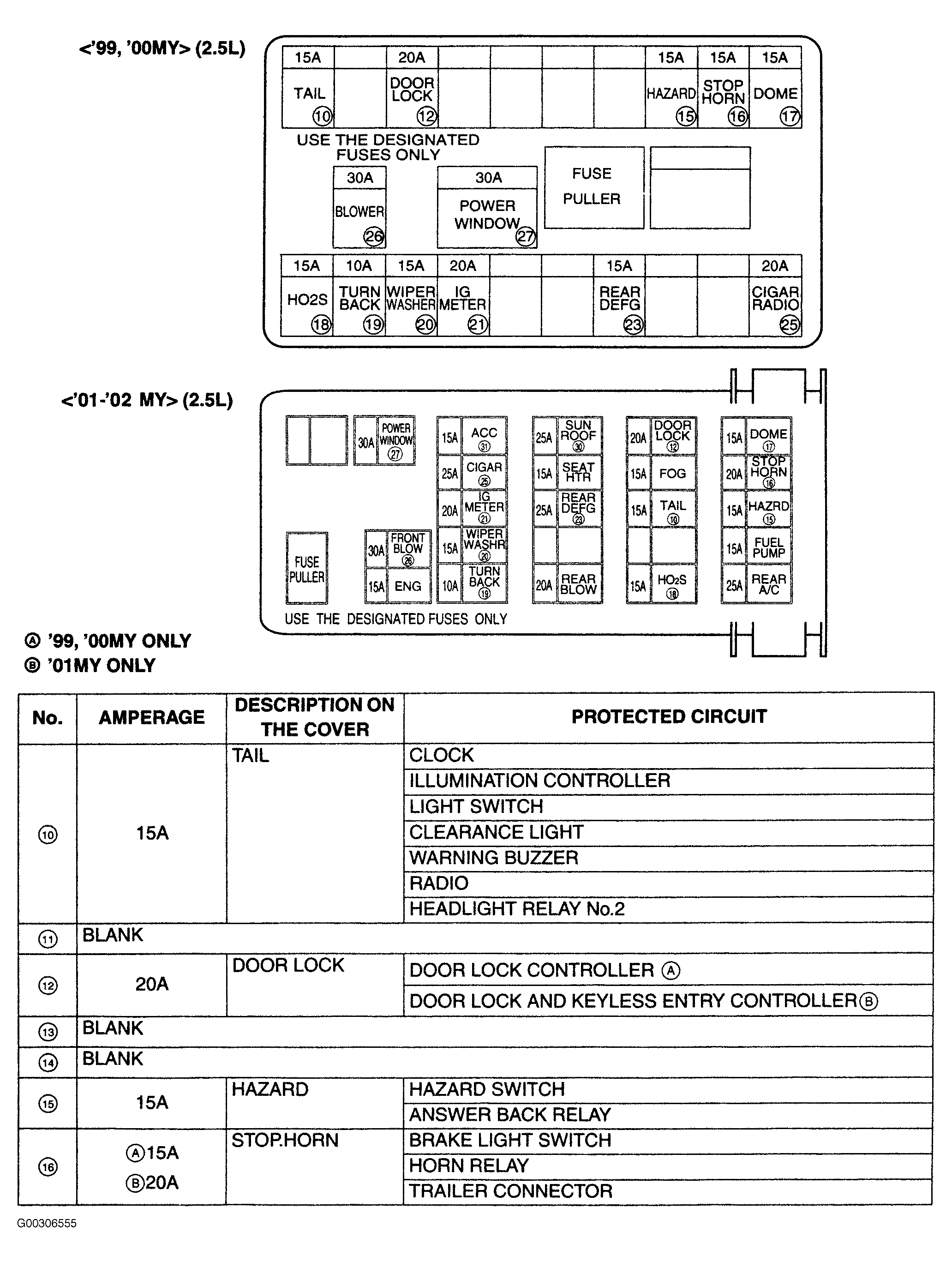

Fig 2: Identifying Under Dash Fuse/Relay Box (4-Cylinder - 1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

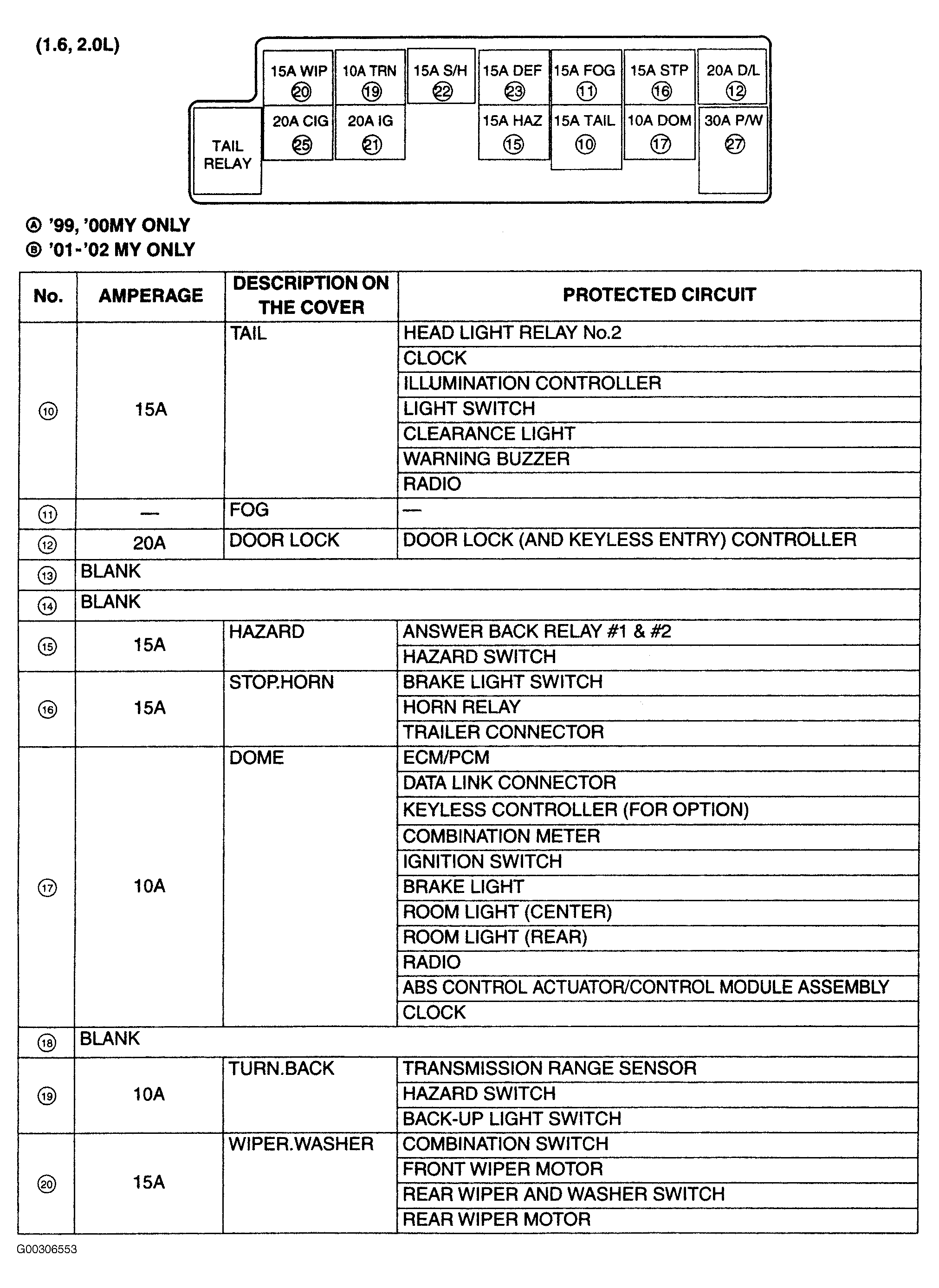

Fig 3: Identifying Under Dash Fuse/Relay Box (4-Cylinder - 2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

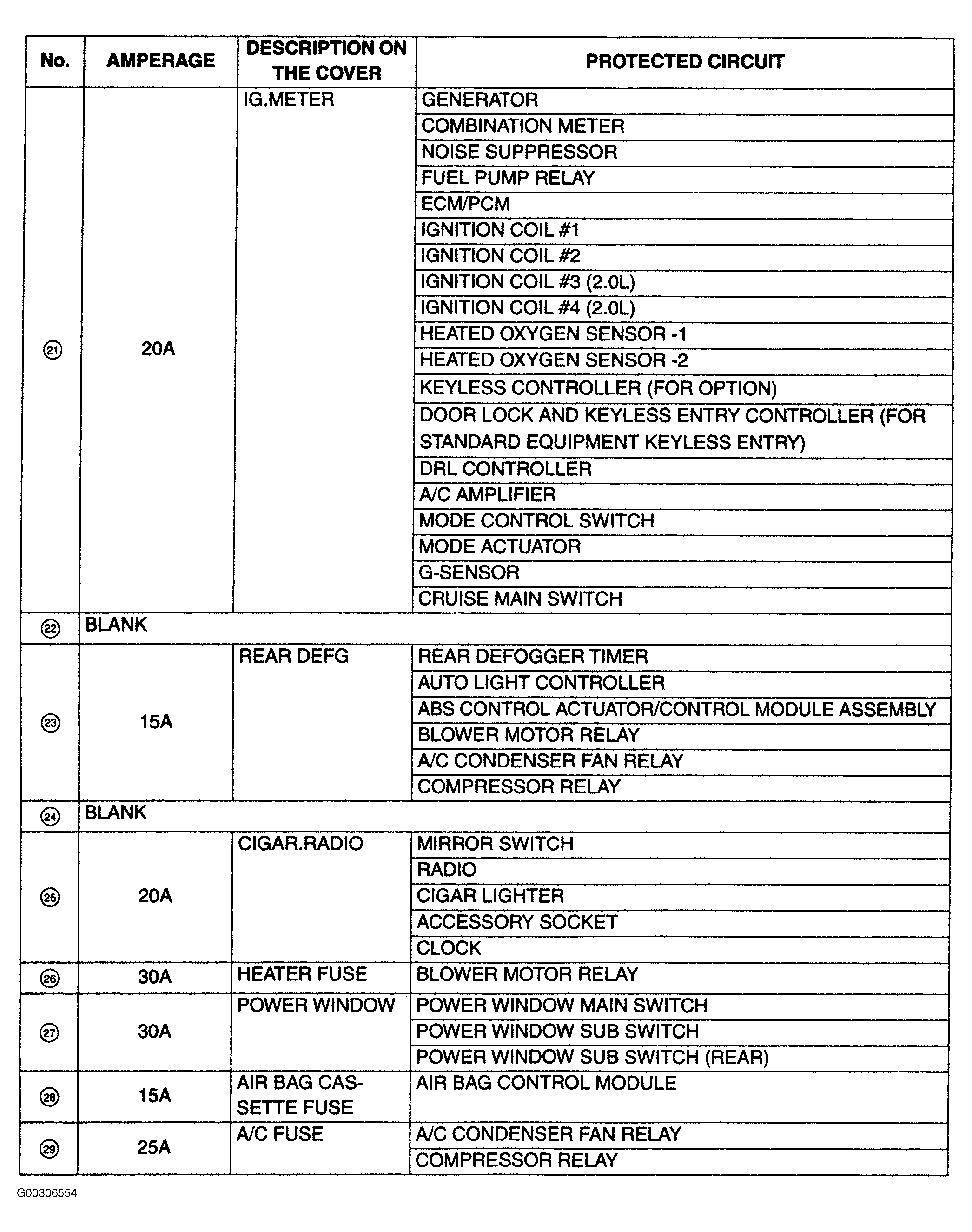

Fig 4: Identifying Under Dash Fuse/Relay Box (V-6 - 1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

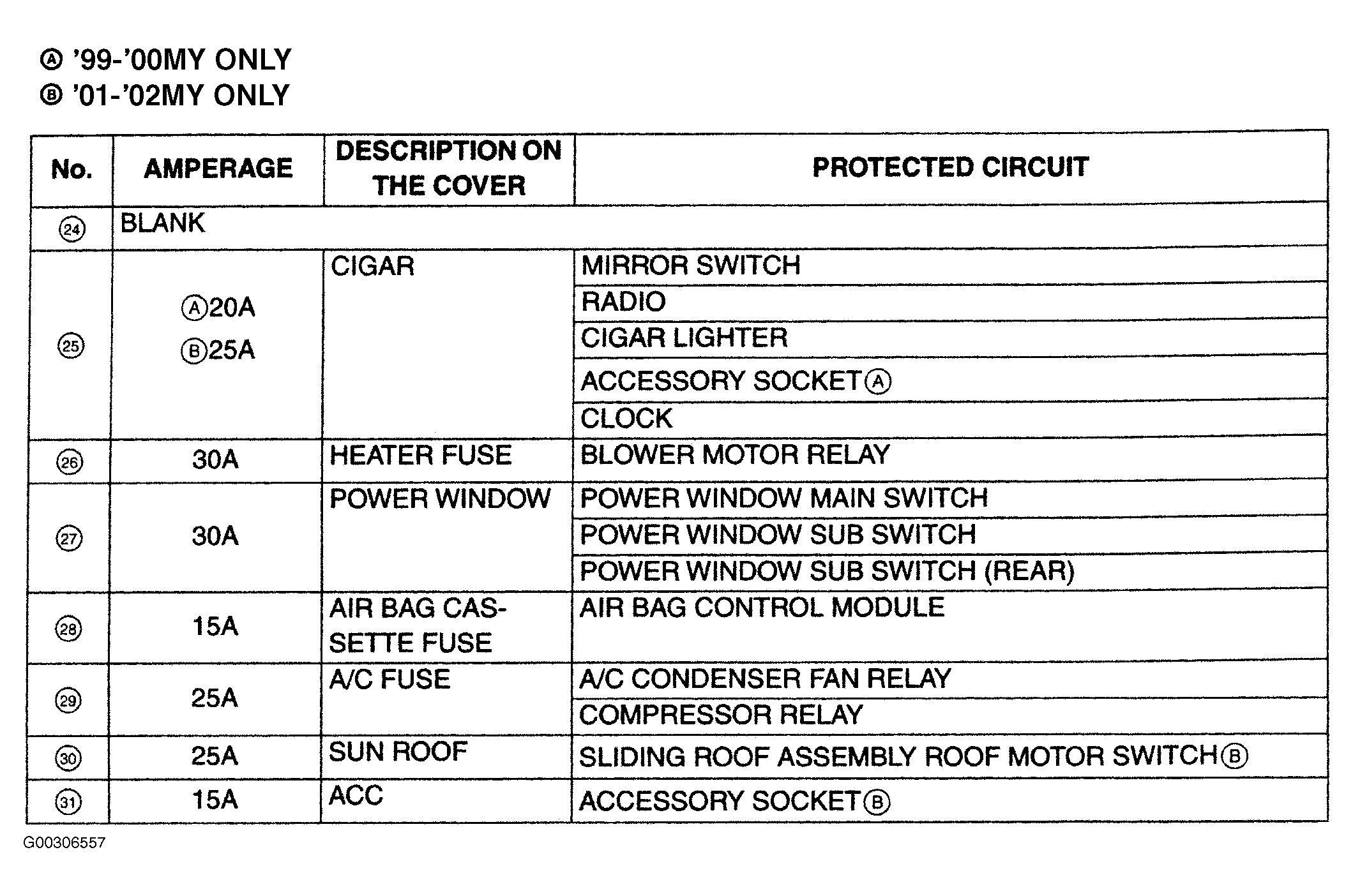

Fig 5: Identifying Under Dash Fuse/Relay Box (V-6 - 2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

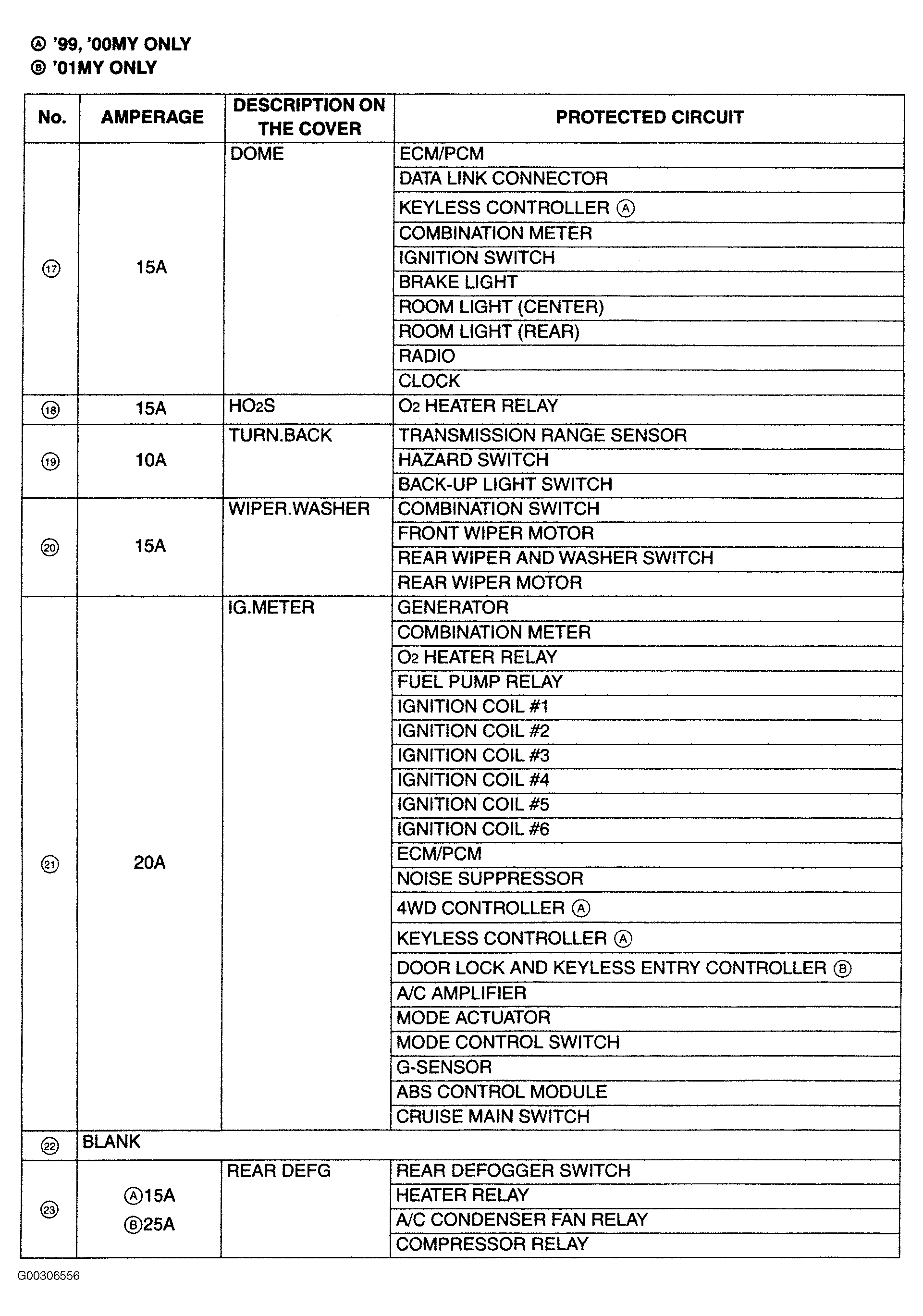

Fig 6: Identifying Under Dash Fuse/Relay Box (V-6 - 3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
