Generator Belt

- Inspect belt for cracks, cuts, deformation, wear and cleanliness. If any of above conditions are found replace generator belt.

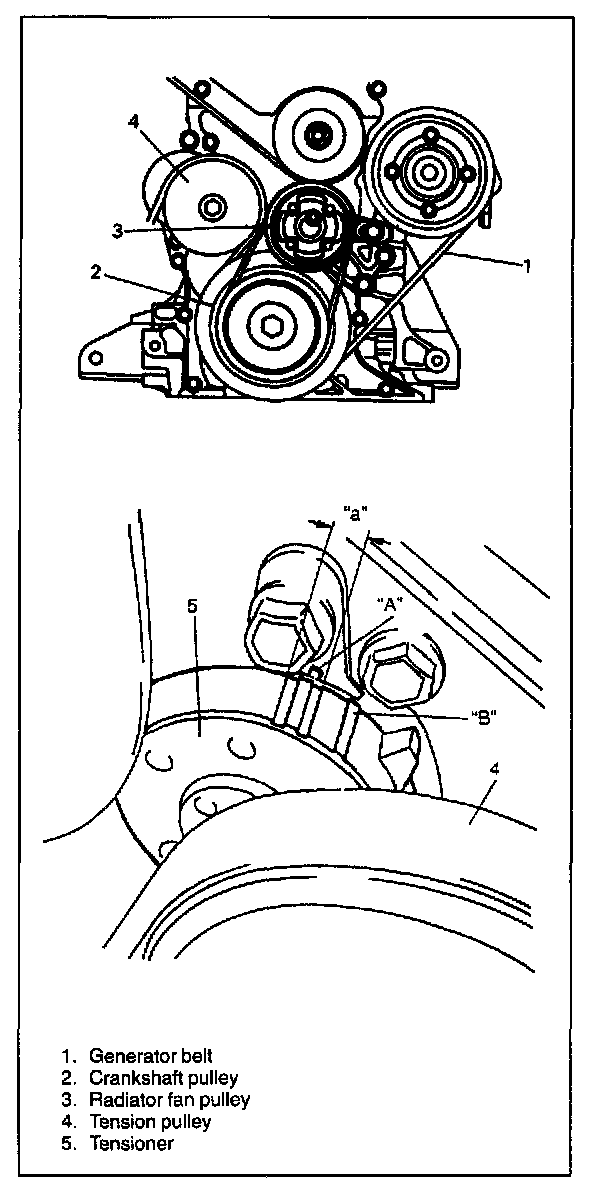

- Check to make sure that tension indicators are as follows in the figure by using mirror.
a. If the tension indicator "B" is found to the left of the indicator "A", replace the generator belt.
b. If new generator belt has been installed, indicator "A" should be within "a" of the figure.
If it isn't, it means that belt is not installed properly. Reinstall it properly.
